Starter Motor: Service and Repair

Operation number: 33118-2

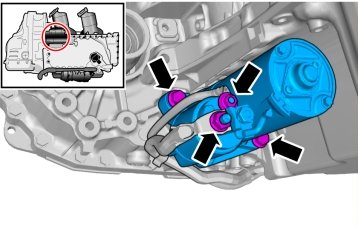

Starter motor

Removal

Note! Removal steps in this procedure may contain installation details.

Battery, disconnection Battery Disconnecting and Connecting








1. Torque: M10, 50 Nm

2. Torque: Battery positive cable to starter solenoid, 11 Nm

3. Torque: Start impulse lead , 8,5 Nm

Installation

To install, reverse the removal procedure.
