Part 1

Alcoguard

Equipment

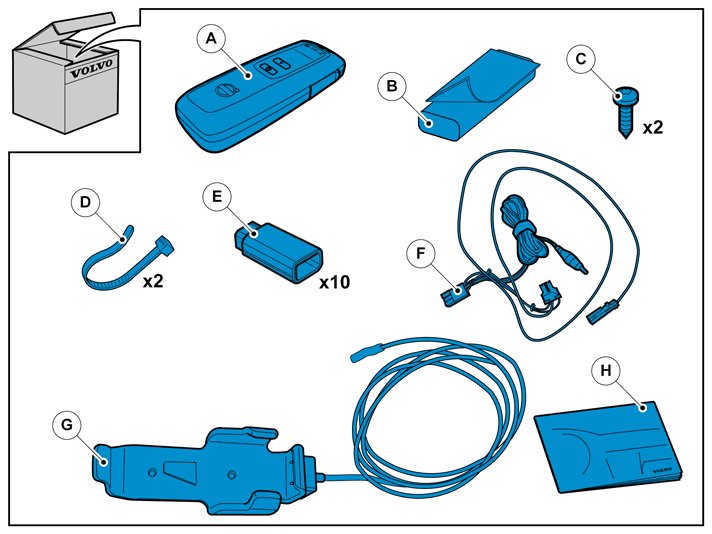

Kit contents









Operation number: 33441

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Conditions

Where the procedure differs, the right-hand version is also shown with text and image.

All vehicles

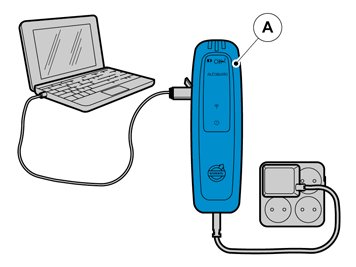

Activate and calibrate the Alcohol Analyzing Start Inhibitor according to TJ (Technical Journal) 19265.




Set the ignition key to position 0.

Removal
















Disconnect any connector(s).

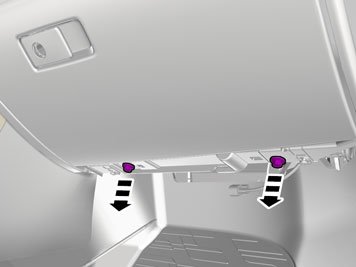

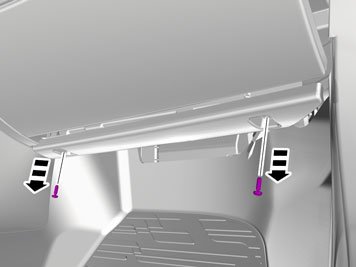

Remove the screws.

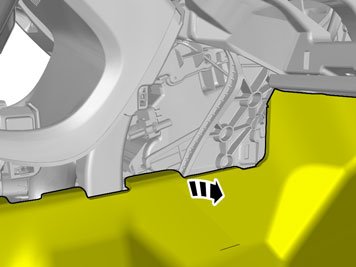

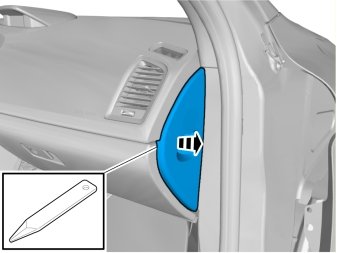

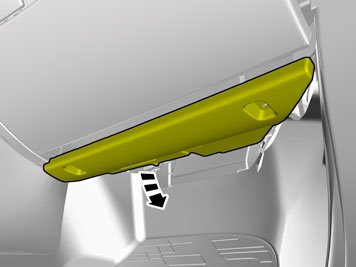

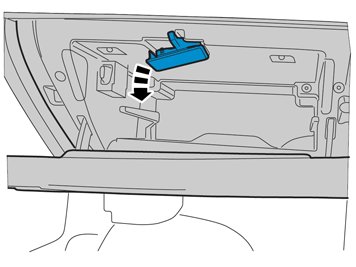

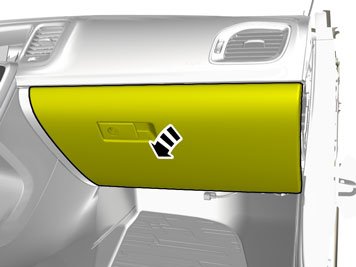

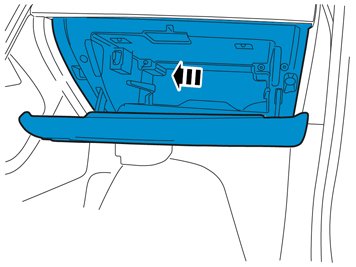

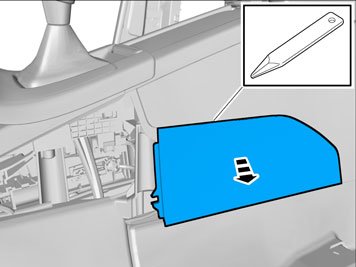

Detach the panel.

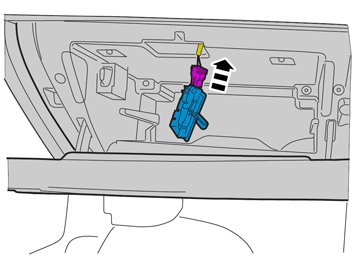

Disconnect the connector.

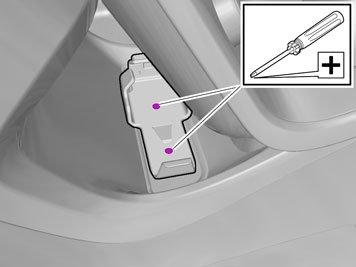

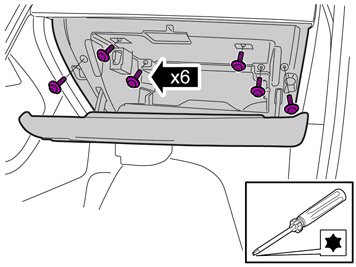

Remove the screws.
Torque: M6, 10 Nm

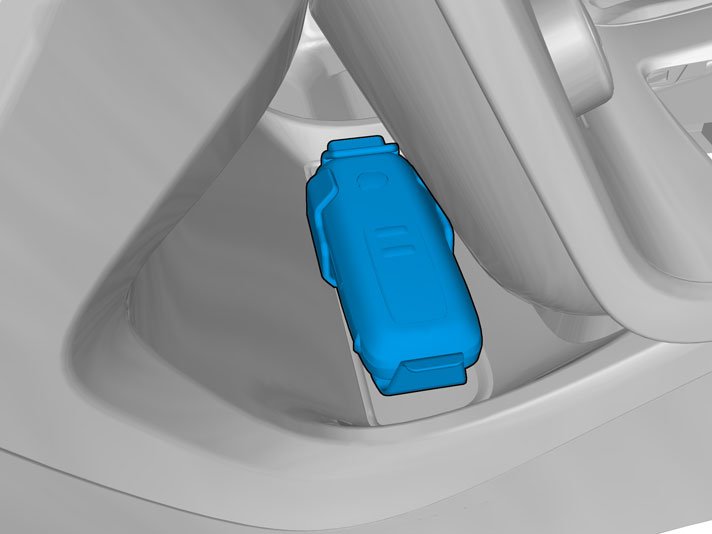

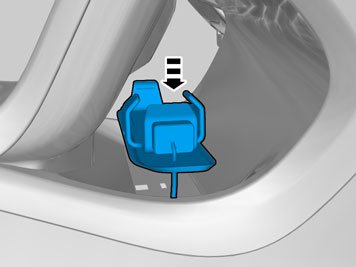

Remove the part carefully

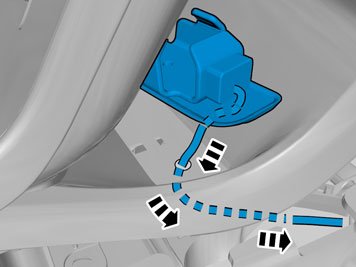

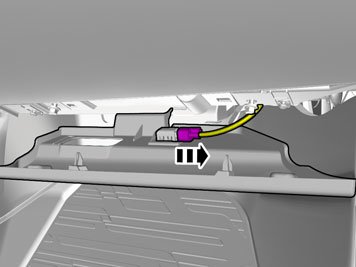

Disconnect the connector.




Remove the screws.

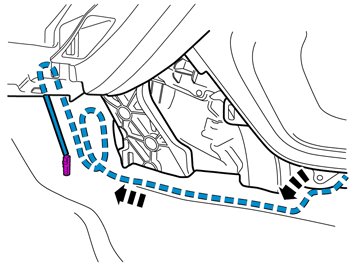

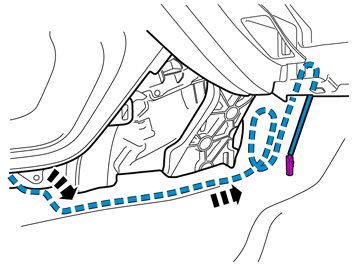

Remove the cable harness clips.









Caution! Take extra care not to damage the wiring harnesses.

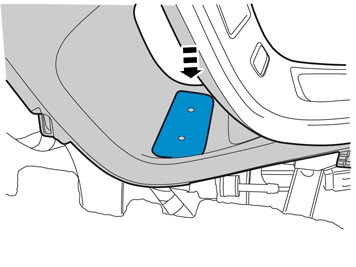

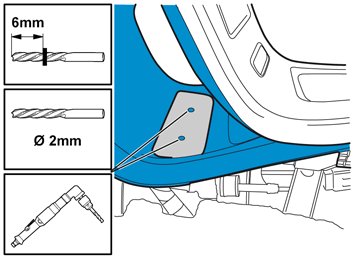

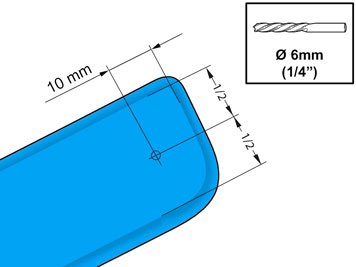

Remove the swarf.









Caution! Take extra care not to damage the wiring harnesses.

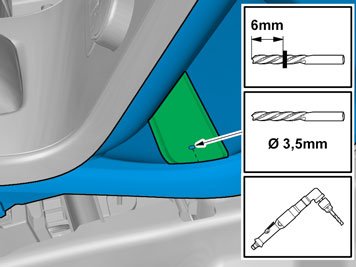

Remove the swarf.





















Caution! Take extra care not to damage the wiring harnesses.

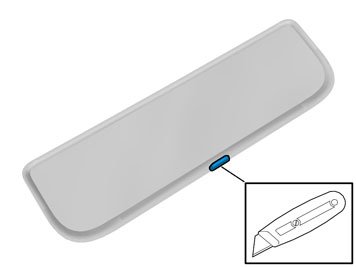

Remove the swarf.









Note! Only tighten the bolts finger tight at this stage.

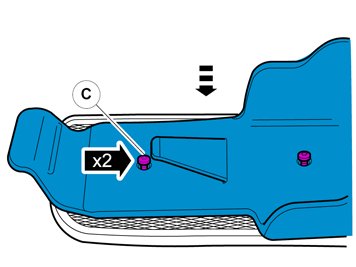

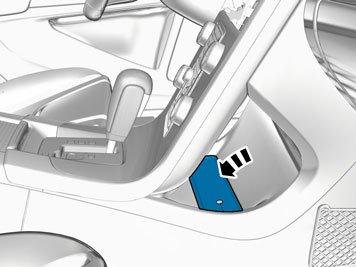

Install the screws.

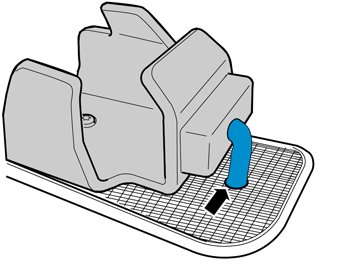

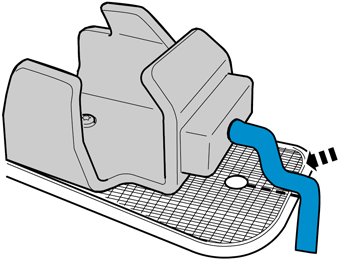

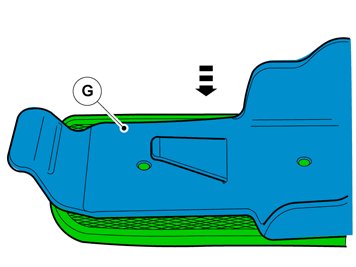

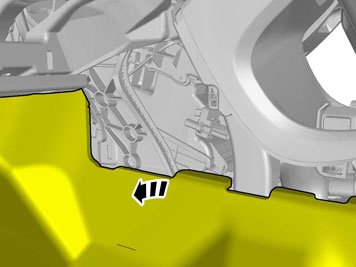

Fold the carpet to the side.




Place any excess inside the floor carpet.

Right-hand drive vehicles

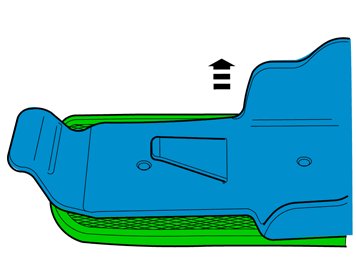

Fold the carpet to the side.




Place any excess inside the floor carpet.
