Alternator: Service and Repair

Operation number: 32102-2

Generator

Removal

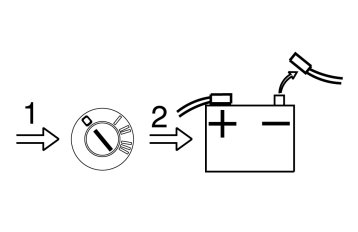

Battery, disconnection Battery Disconnecting and Connecting





Remove intake manifold Refer to: Induction pipe, B6304T4, TF-80SC AWD Service and Repair





Installation

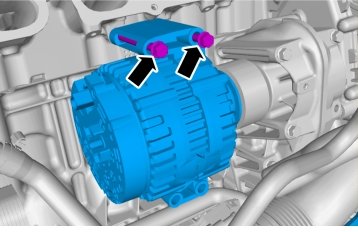

Note! Only tighten the bolt finger tight at this stage.

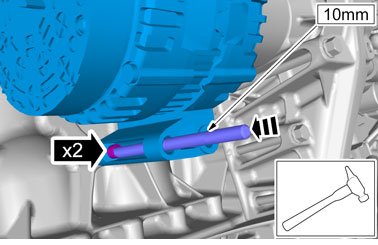

Caution! Make sure that the component is correctly located on the locating dowels.

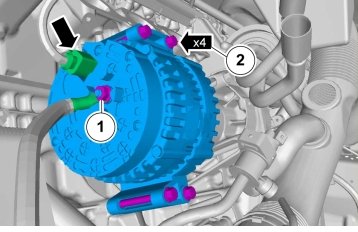

1. Torque: Generator B+ terminal, 15 Nm

2. Torque: M8, 24 Nm
