Removal and Replacement

Operation number: 31102-2

Battery

Removal

Note! Removal steps in this procedure may contain installation details.

See the battery and charging safety information Refer to: Safety information battery and charging Service Precautions

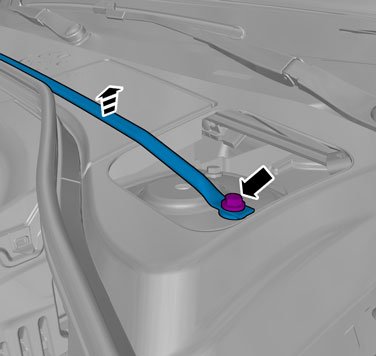

Vehicles with R-design




On both sides.




On both sides.
Torque: Strut and spring assembly to strut and spring assembly turret, 30 Nm

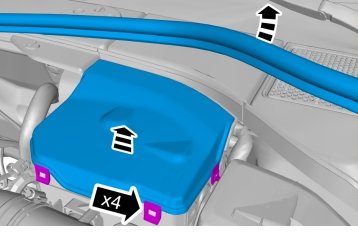

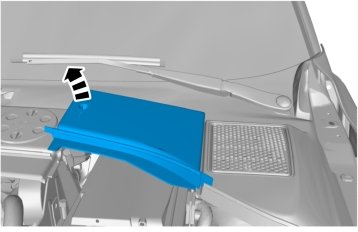

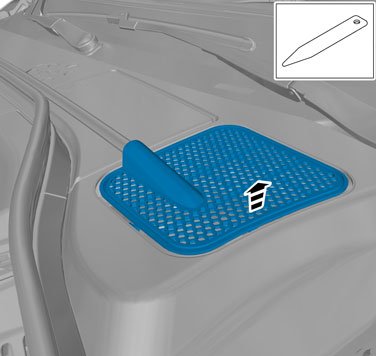

All vehicles









Perform battery disconnecting and connecting. Battery Disconnecting and Connecting

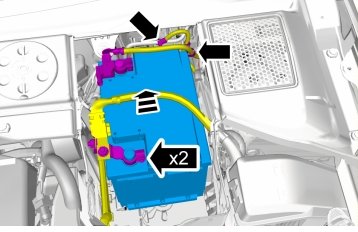

Torque: Battery cable for battery, 2.5 Nm

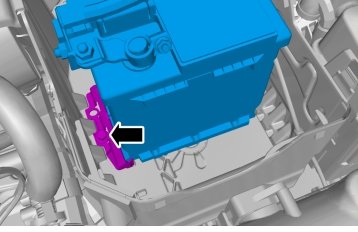

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Reset information when replacing battery (main battery)
