Timing Cover






Timing Chain Cover Fasteners

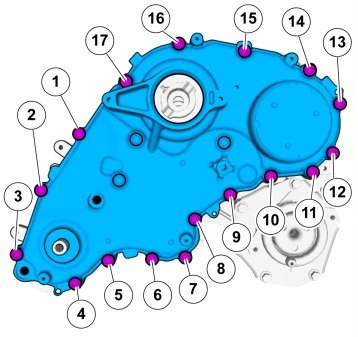

Install all the bolts finger tight before final tightening

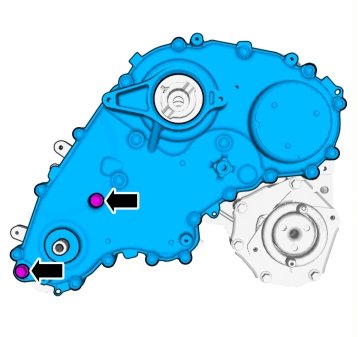

M7 17 Nm

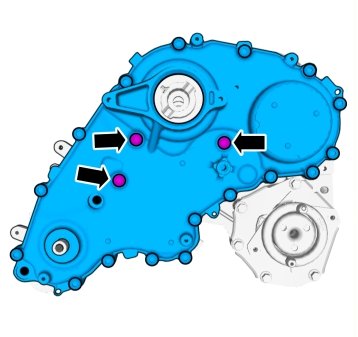

M7 17 Nm

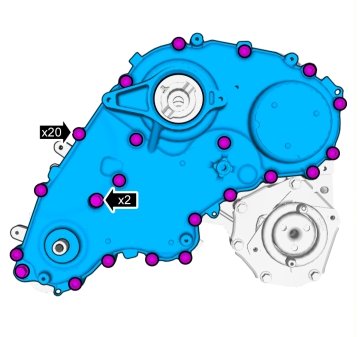

M8 24 Nm
