General Data

Engine

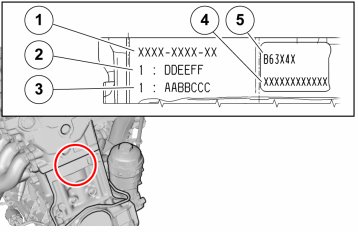

Marking




1. P/N
2. Cylinder class
3. Bearing class
4. Engine serial number
5. Engine type

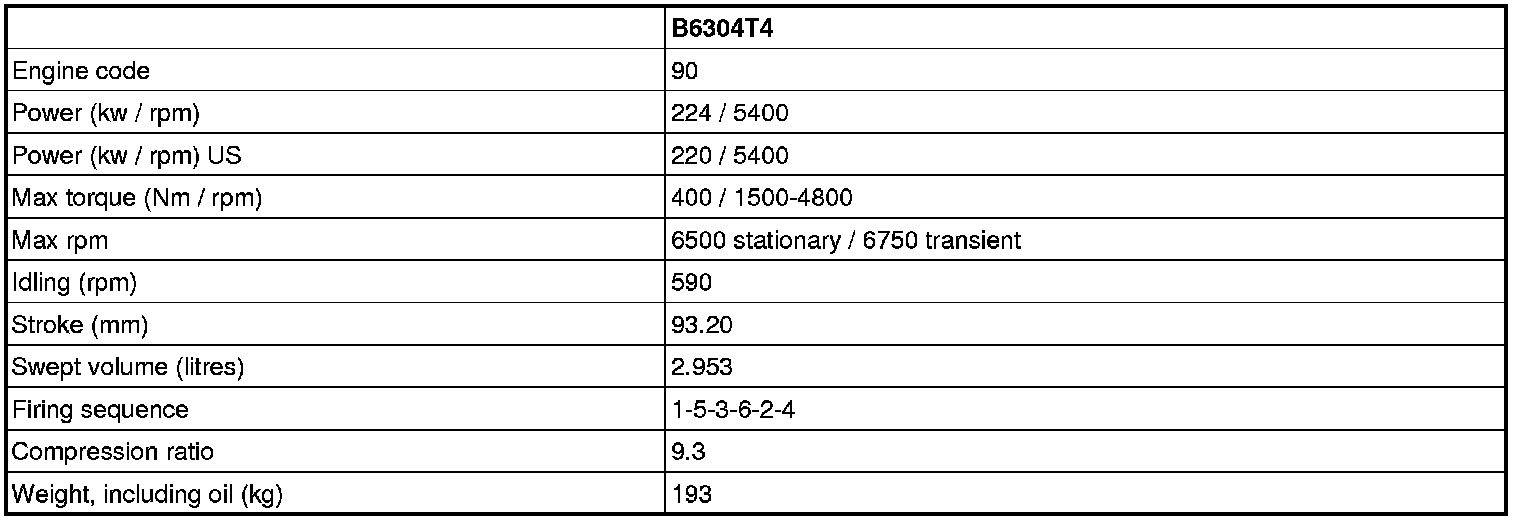

General data

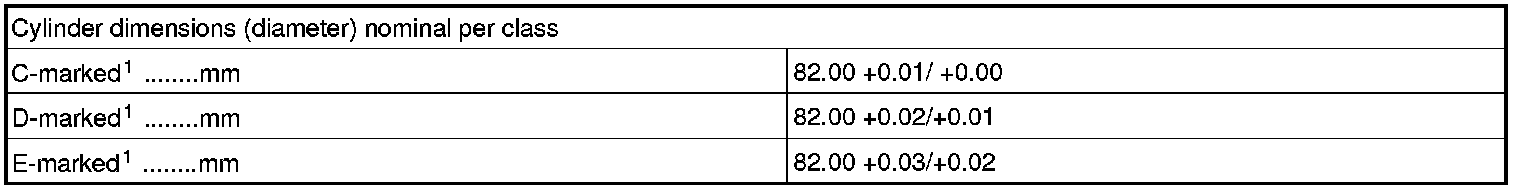

Cylinder

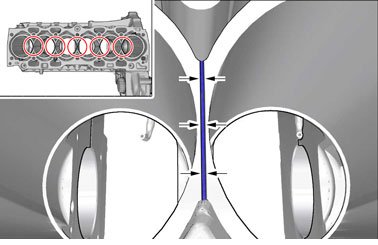

Cooling duct, engine block

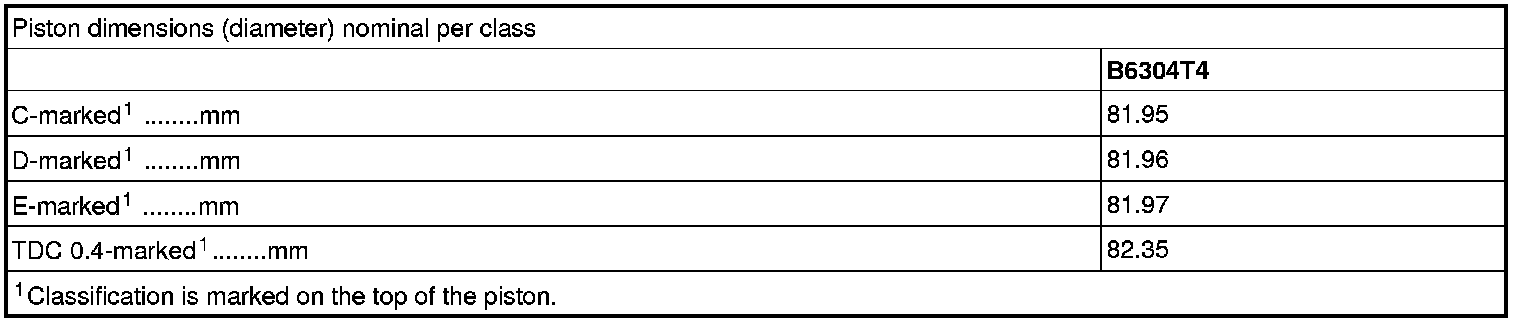

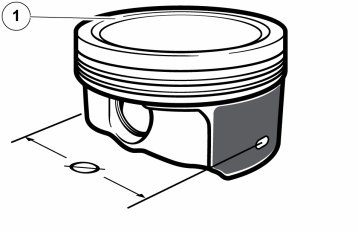

Pistons










Piston running clearance

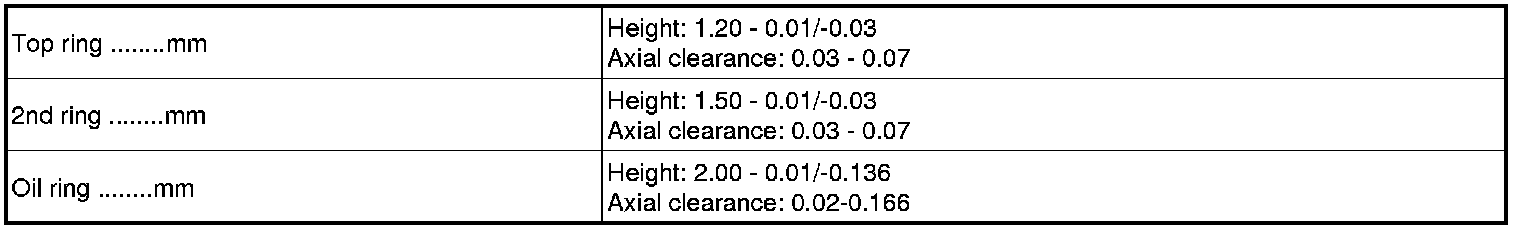

Piston rings






Piston pin






Valves










Valve seats






Tappets






Valve springs

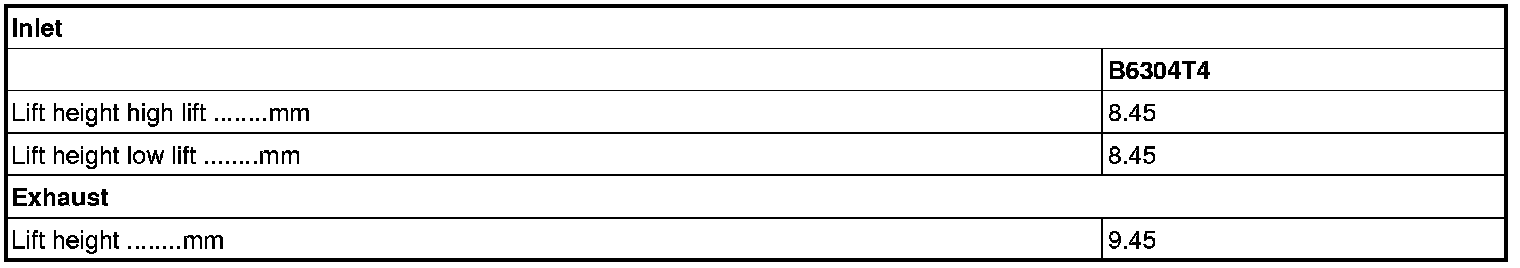

Camshafts

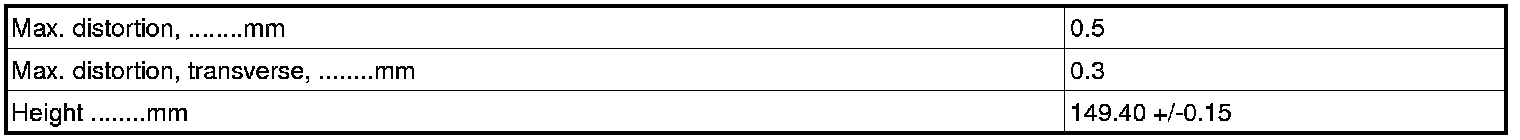

Cylinder head






Classification of main bearings






Crankshaft






Big end journals

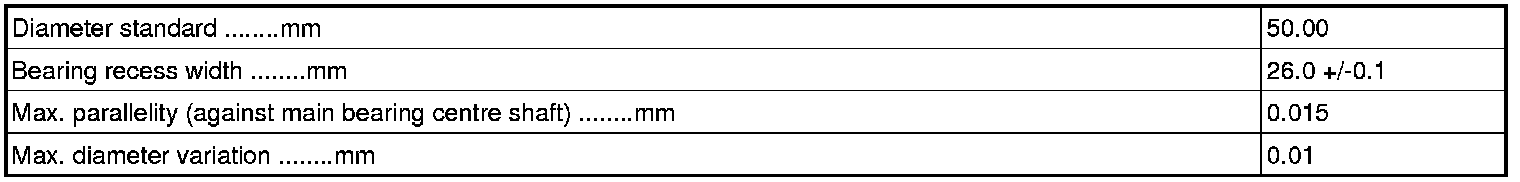

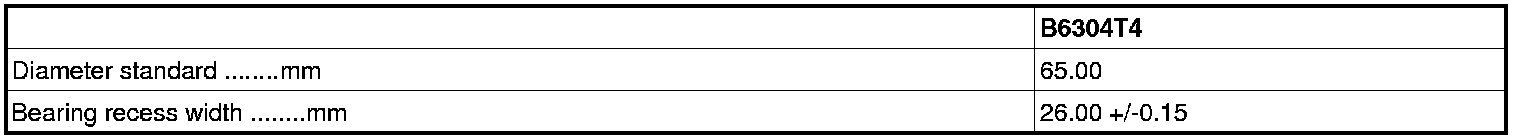

Main bearing journals

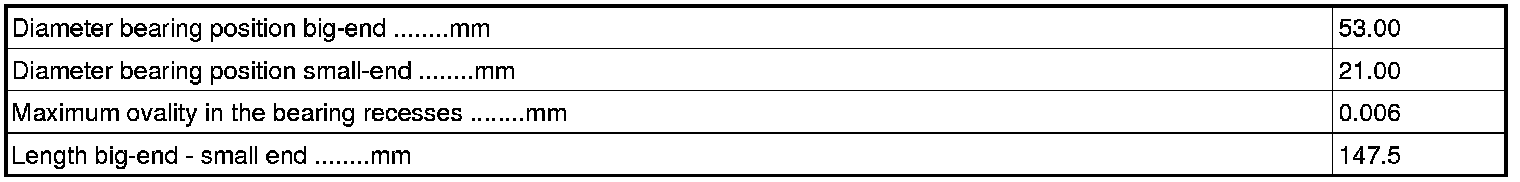

Connecting rods






Oil pump

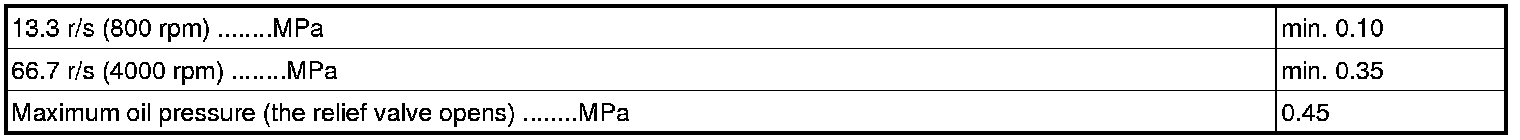

Oil pressure






Thermostat

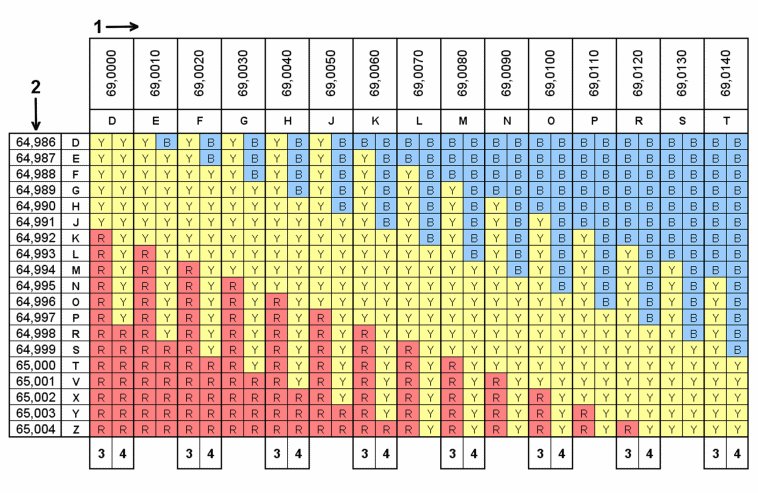

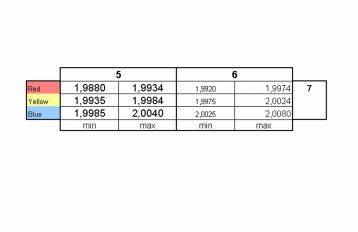

Main bearing classes









1. Classification cylinder block
2. Classification crankshaft
3. Cylinder block
4. Intermediate section
5. Main bearing
6. Throw-out bearing
7. Thickness
