Body Control Systems

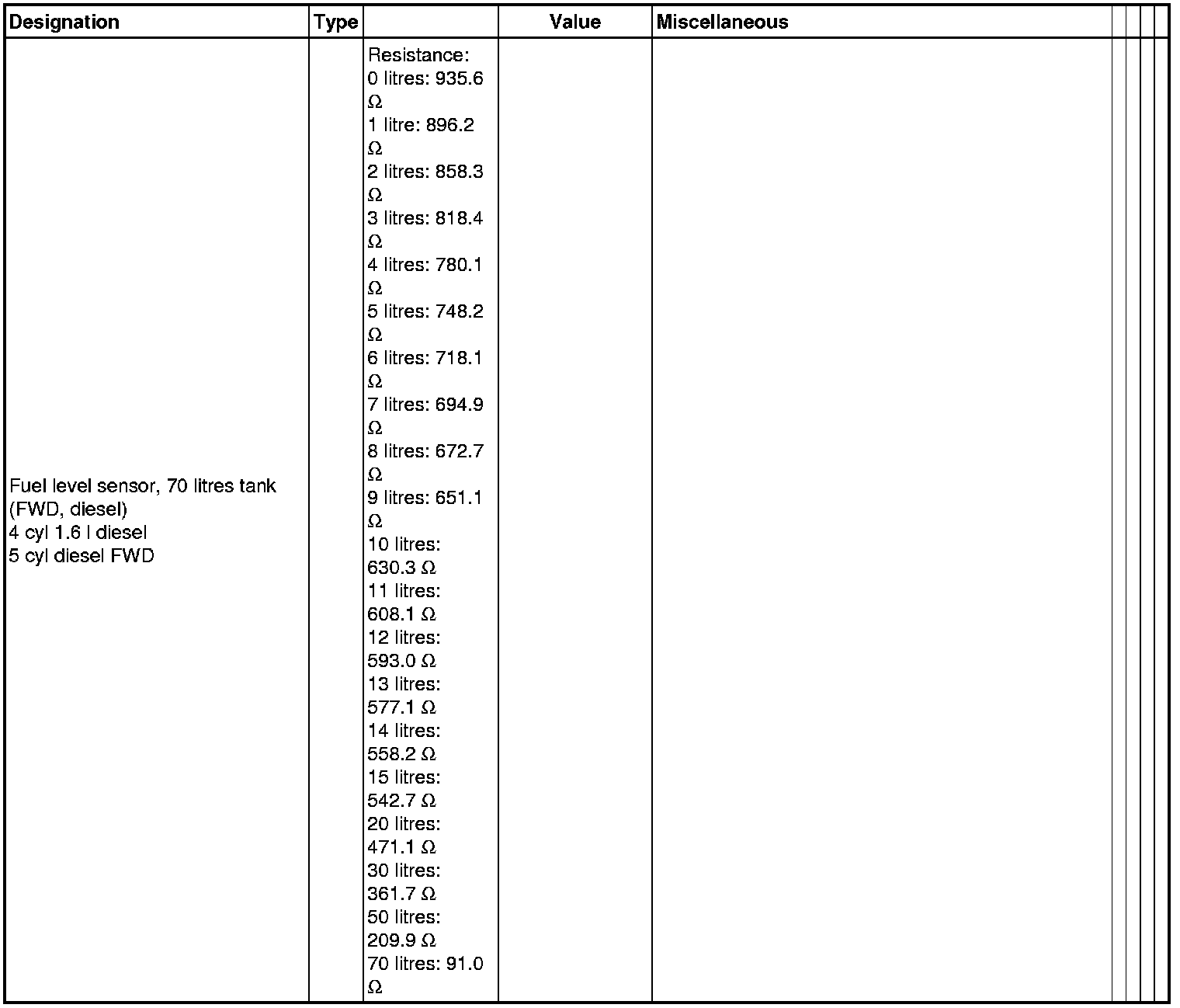

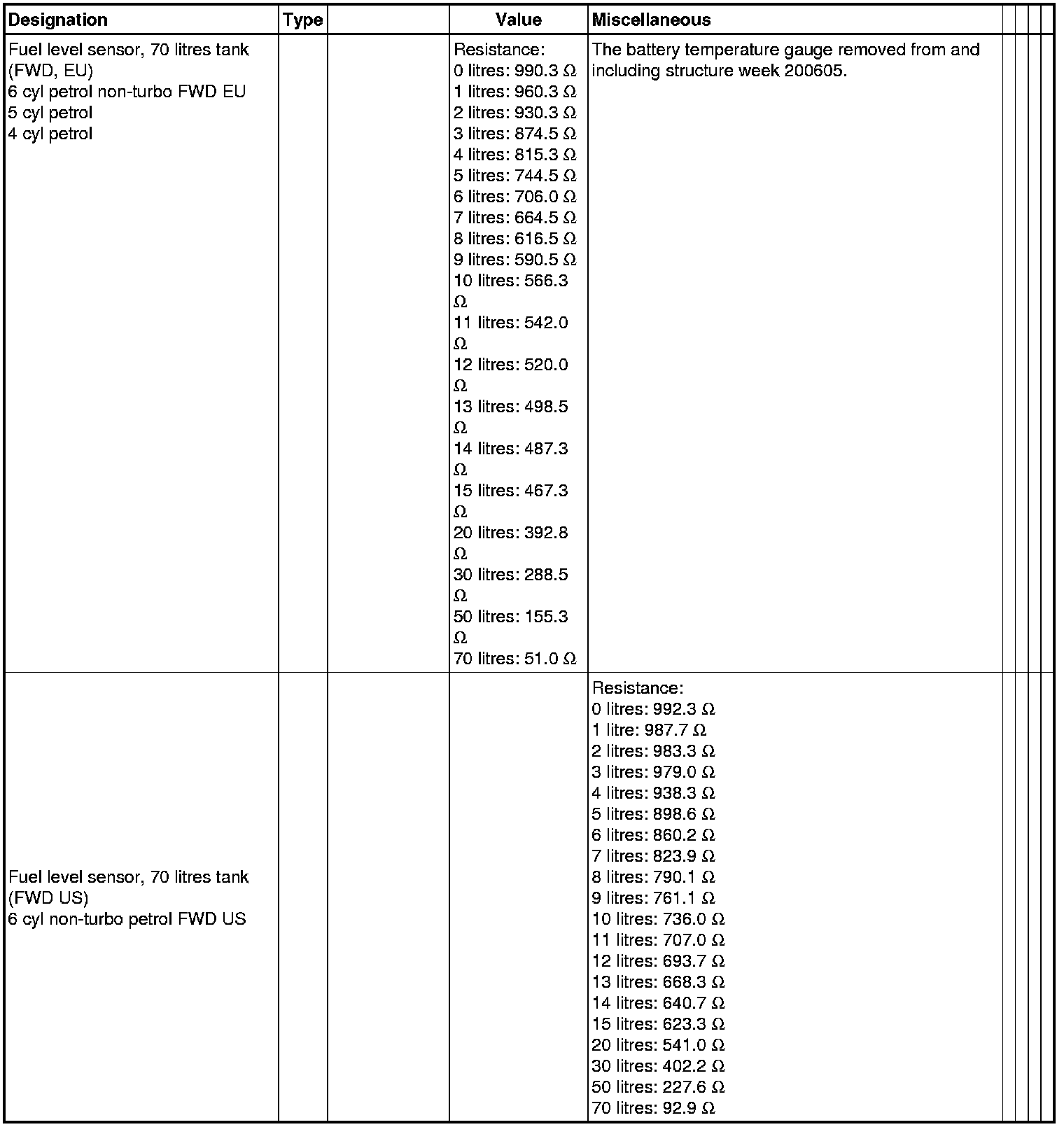

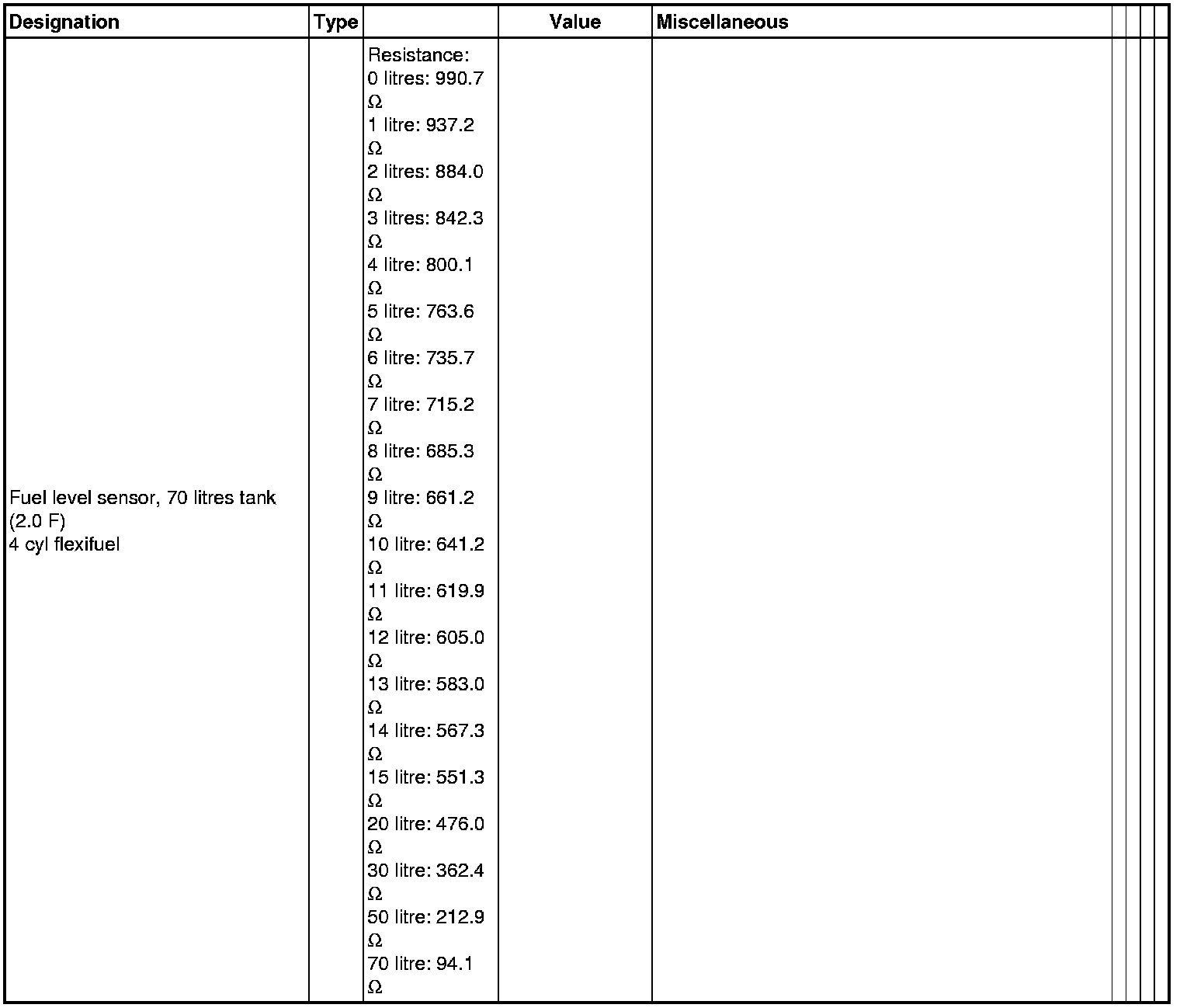

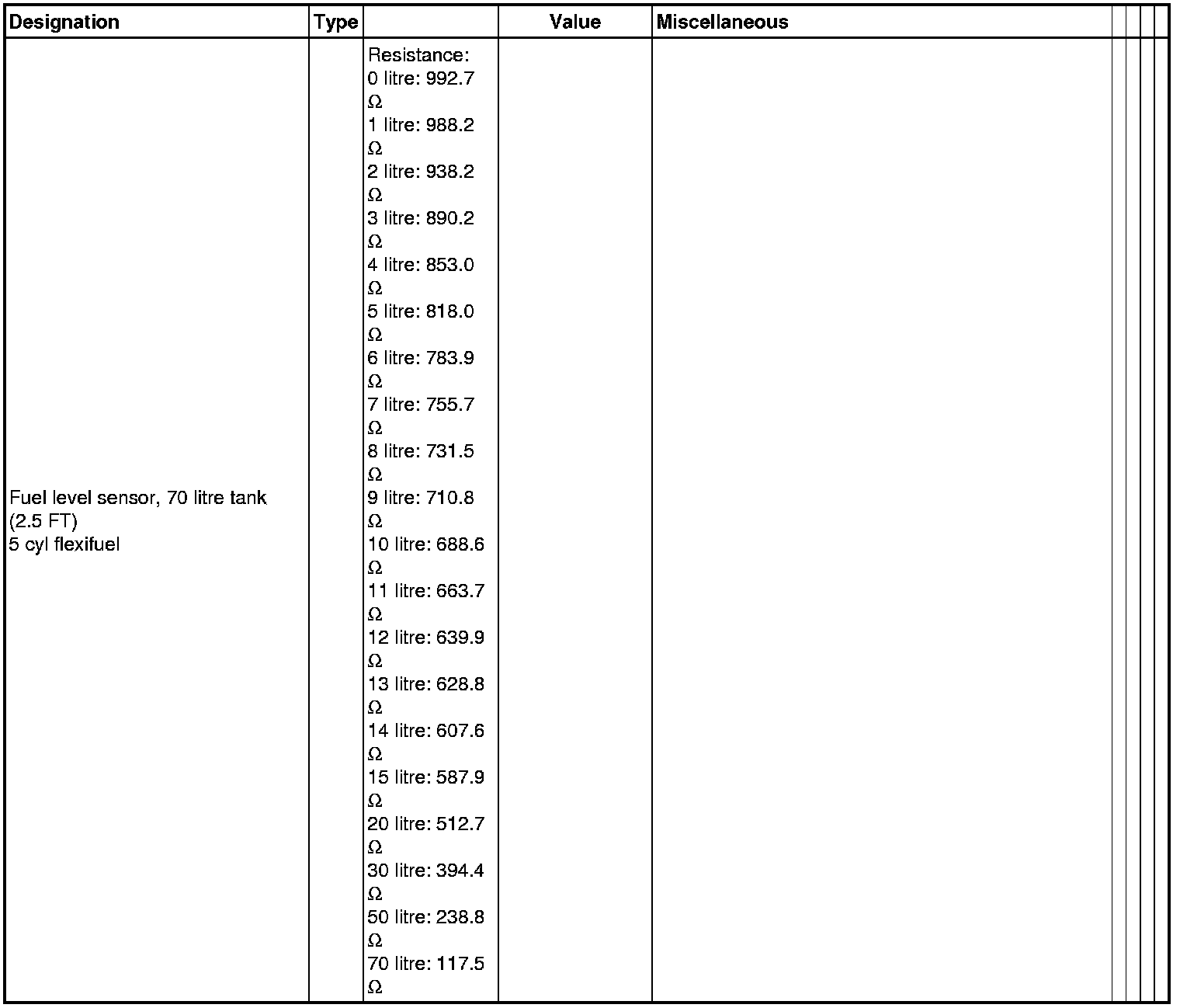

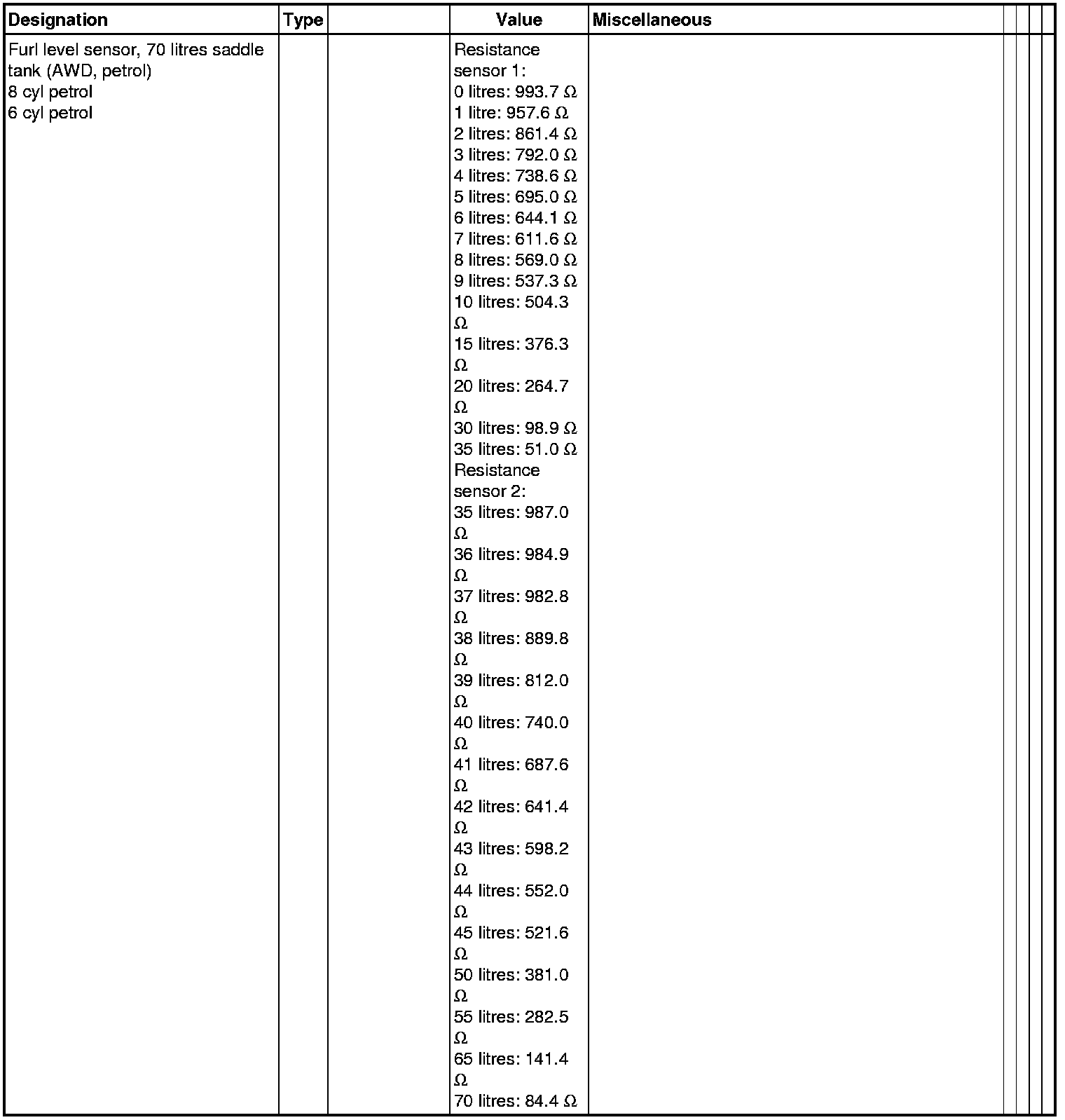

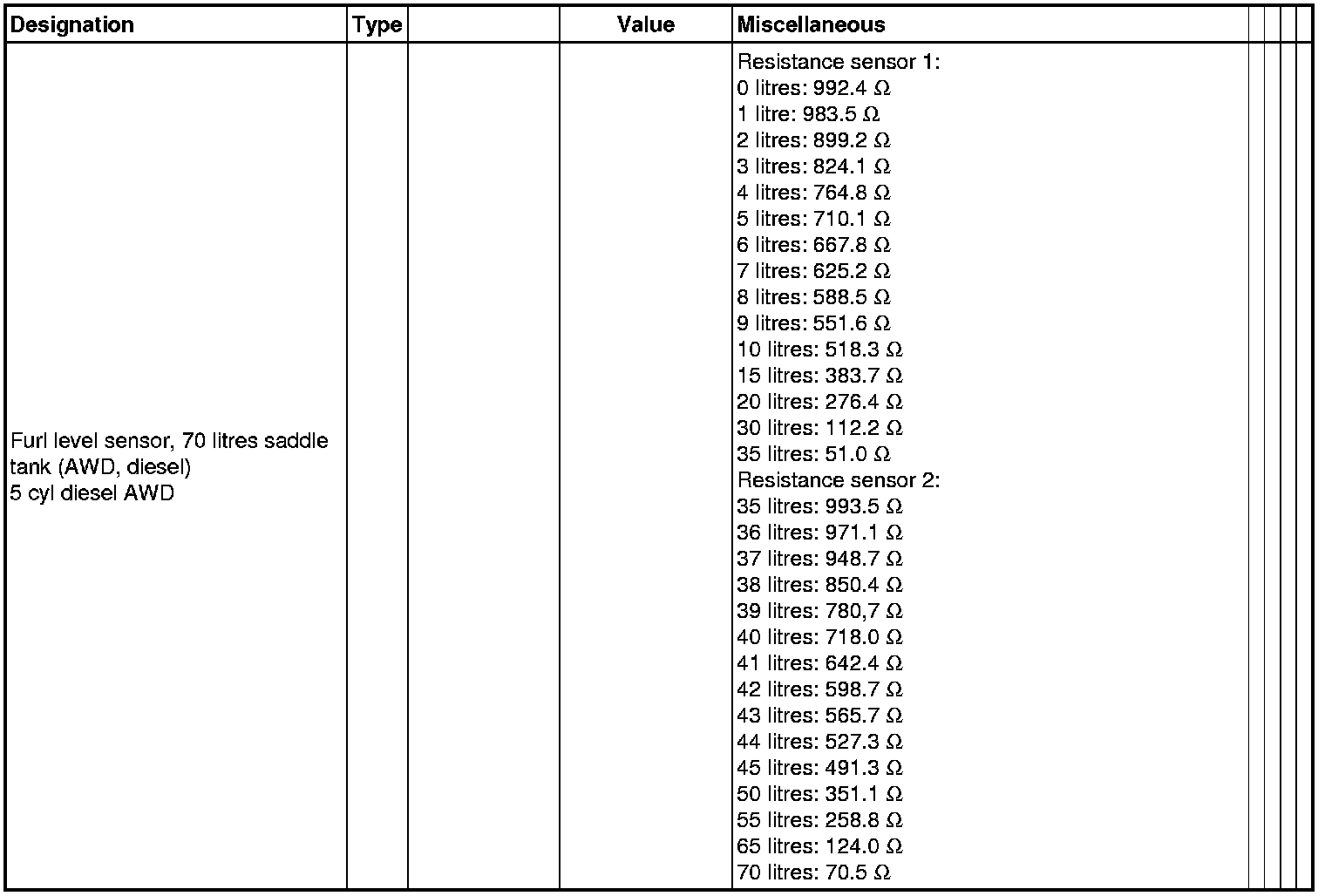

Component specification, Central electronic module (CEM)
The resistance values assume a temperature of +25°C unless otherwise stated.
