Brake Light Switch: Adjustments

Stop Lamp Switch, adjustment

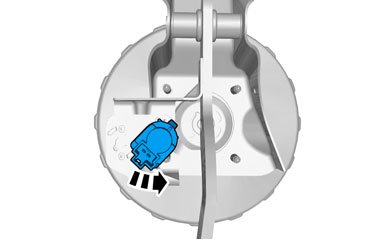

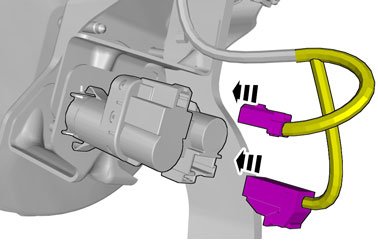

Removal

See information on component position brake light switch Refer to: Location of components, Stoplamp Switch Location of Components, Stoplamp Switch

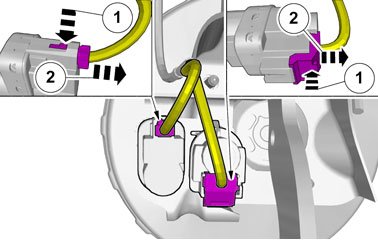

Installation





Caution! Both switches must be removed before installing a new switch.

Caution! Make sure that the brake pedal remains in the rest position.





Caution! Make sure that the brake pedal remains in the rest position.

Use: Feeler gauge.

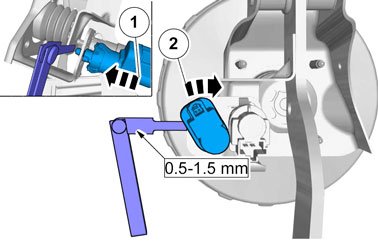

Check and adjust, brake light switch and brake pedal position switch
