Part 2

Parking assistance, front (Continued)


Applies to left-hand drive vehicles




- Attach the bumper cover in reverse order.


Applies to right-hand drive vehicles









- Attach the bumper cover in reverse order.


Applies to left-hand drive vehicles

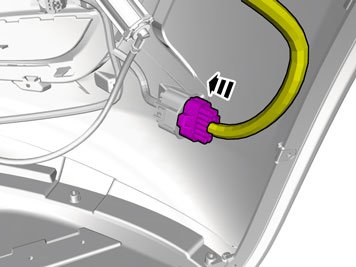

- Route the cable harness at the existing cable harness.

Caution! Make sure that the cable is positioned so that it is not damaged by heat or wear.

- Reinstall the headlamp.


Applies to left-hand drive vehicles with diesel and 6-cyl engines






Applies to left-hand drive vehicles




- Remove the plastic nuts.






Illustrations A and B

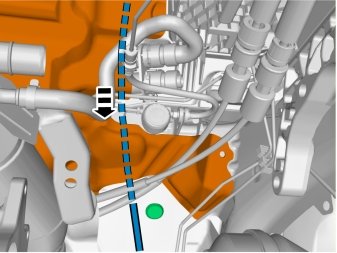

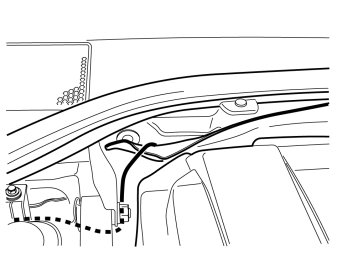

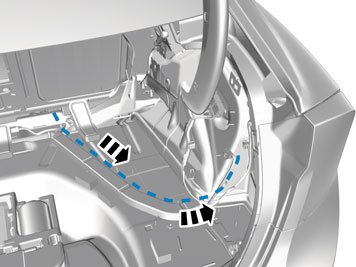

- Route the cable harness behind the insulation and further down.






Applies to right-hand drive vehicles with diesel and 6-cyl engines






Applies to right-hand drive vehicles

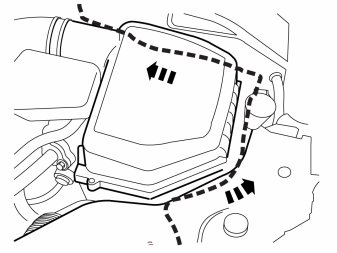

- Route the cable harness from the headlamp and around the air filter housing.

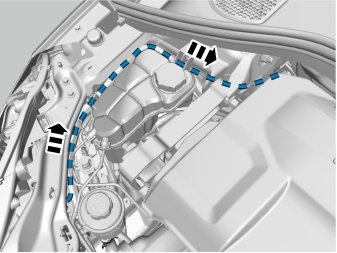

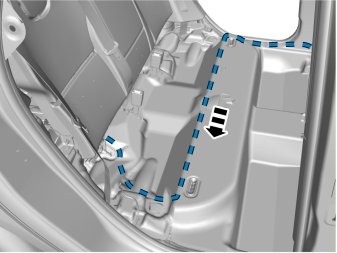

- Route the cable harness by the battery box, along towards the insulation for the cowl panel and further down.

Caution! Make sure that the cable is positioned so that it is not damaged by heat or wear.

- Reinstall the headlamp.

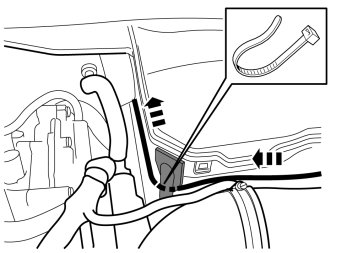

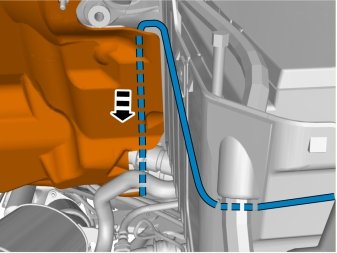

- Route the cable harness inside the insulation and further down under the car.





- Raise the car.

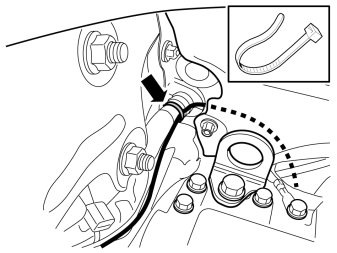

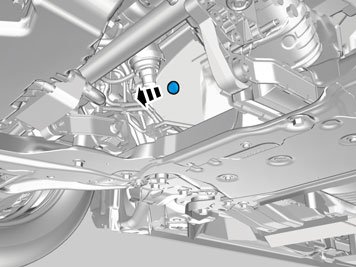

- Route the cable harness down further.


Applies to all vehicles




- Raise the car.
- Locate the hole for the rubber grommet on the cowl panel.

Note! On certain models this may be covered by the heat insulation.

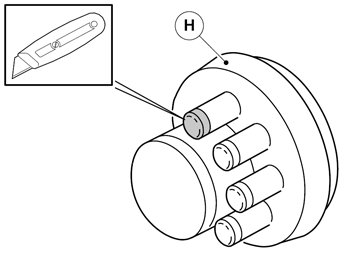

- Cut off a small rubber nipple. Lubricate the cable harness using soap solution and thread through.

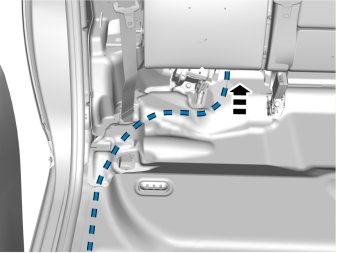

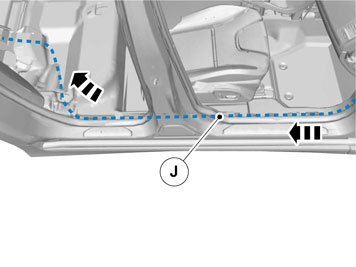

- Route the cable harness into the passenger compartment. Adjust the length.
- Install the rubber grommet and move the heat shield on the cable harness towards the rubber grommet.

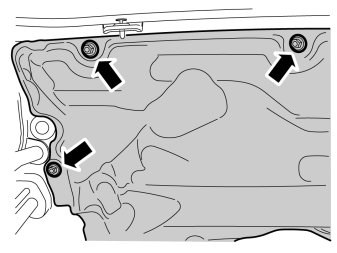

- Reinstall the engine splash guard.
- Lower the car.

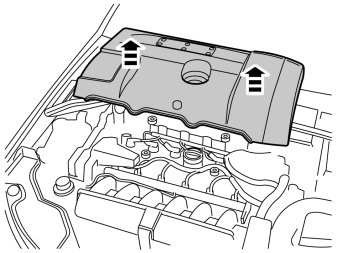

- Reinstall the engine cover.


Applies to left-hand drive vehicles

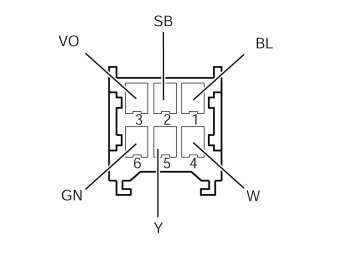

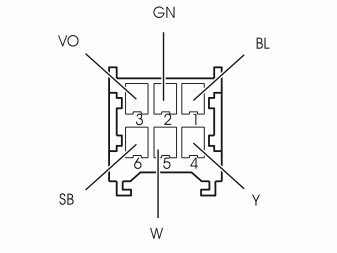

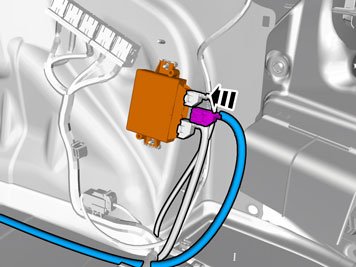

- Take the cable harness (F) connector and connect the terminals in the connector:
- 1 Blue (BL)
- 2 Green (GN)
- 3 Violet (VO)
- 4 Yellow (Y)
- 5 White (W)
- 6 Black (SB)
- Slide the connector's catch back.


Applies to right-hand drive vehicles




- Take the cable harness (F) connector and connect the terminals in the connector:
- 1 Blue (BL)
- 2 Black (SB)
- 3 Violet (VO)
- 4 White (W)
- 5 Yellow (Y)
- 6 Green (GN)
- Slide the connector's catch back.


Applies to all vehicles

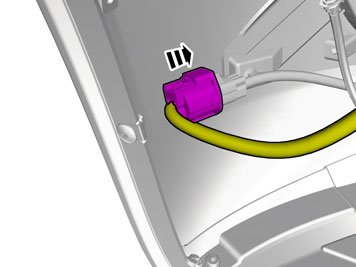

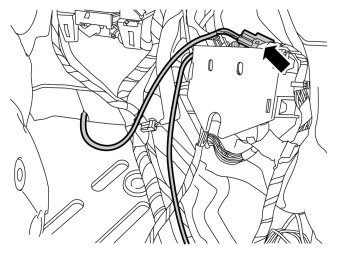

- Place the connector in the holder.







Applies to right-hand drive vehicles






Applies to all vehicles

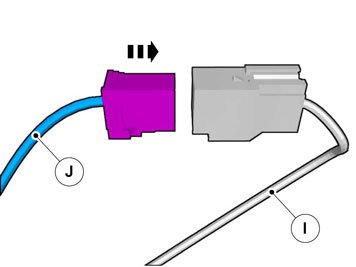

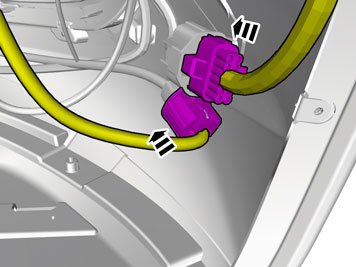

Note! On certain vehicles there is already a connector connected in the center outlet. Disconnect this and tape it to the existing cable harness.

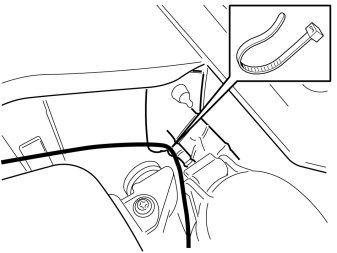

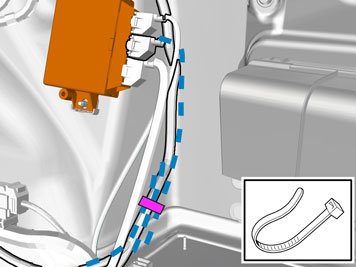

- Secure extra cable length with cable ties.





- Download software (application) for the accessory's function.
