Part 1

Discarding pyrotechnic components

Special tools:
951 2944 Disarm. equipm. for Suppl. Restraint Syst. 951 2944 Disarm. Equipm. For Suppl. Restraint Syst.

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work (for all methods)

Important information

Warning! Read through the background and safety regulations for this method. See Discarding pyrotechnic components Discarding Pyrotechnic Components.

Preparing the mounting fixture

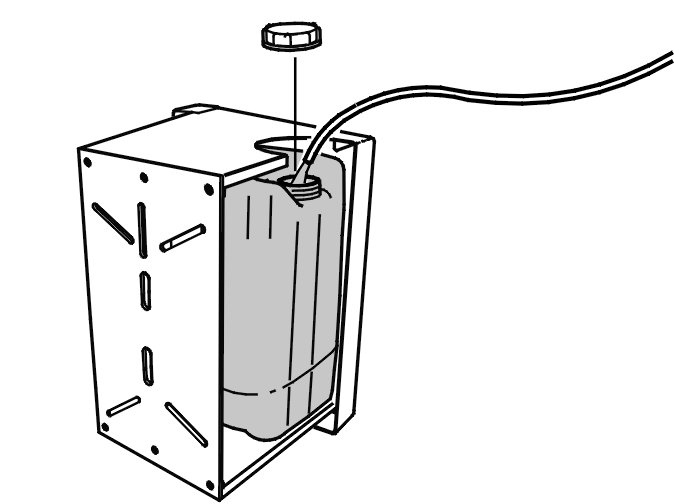

Fill the plastic container in the fixture completely with water to maximize stability.
Position the fixture with the mounting grooves up.

Install suitable mounting brackets in suitable grooves on the fixture without tightening.
Select a groove in the fixture so that upon installation the airbag is centered as much as possible in the fixture. This is to avoid the risk of overturning.

Method content

This method consists of:
- Driver's side airbag (SRS), destruction
- Passenger side airbag (SRS), destruction
- Belt tensioner, destruction
- Seat airbag (SIPS), destruction
- Inflatable curtain (IC), destruction
- Inflatable curtain (DMIC), destruction
- Roll bar (ROPS), destruction.

Driver's side airbag (SRS), destruction

Special tools:
951 2944 Disarm. equipm.for Suppl.Restraint Syst. 951 2944 Disarm. Equipm. For Suppl. Restraint Syst.

Preparatory work

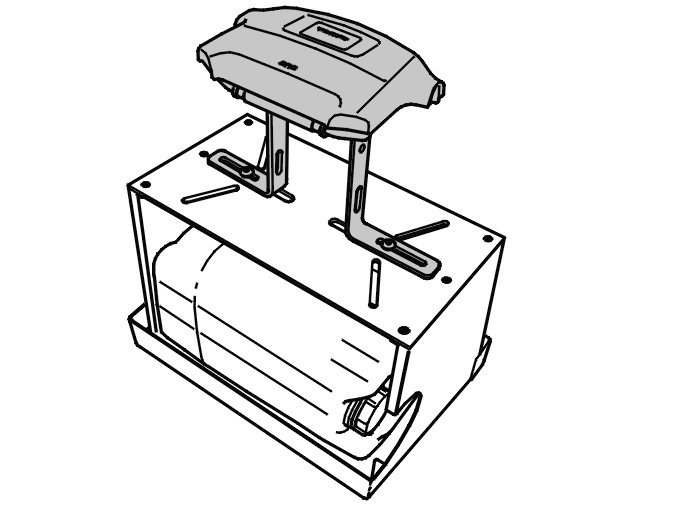

Installation of driver's side airbag (SRS) in mounting fixture

Warning! Use personal protection equipment. See Discarding pyrotechnic components Discarding Pyrotechnic Components.

Position the airbag so that it is filled upward when discharged. See illustration.
Screw the airbag into its normal screw mounting on the mounting brackets. Tighten the screws.
For airbags installed with snap catches, the studs that snap the airbag in place must be removed.

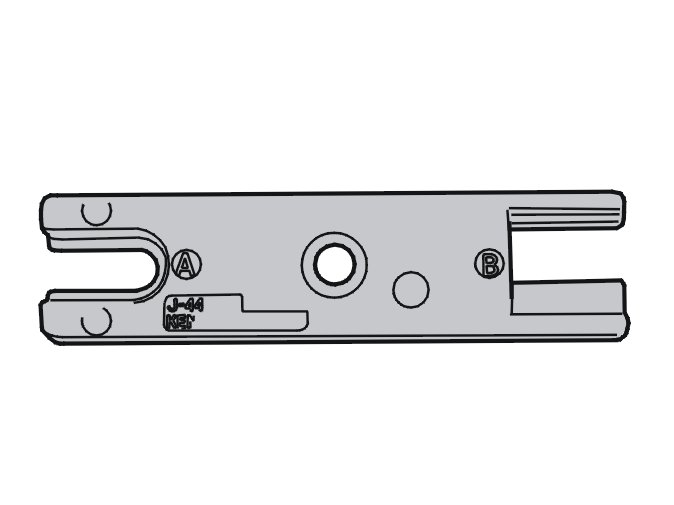

Note! Use the mounting bracket as illustrated. The mounting bracket groove marked "A" should be used together with a locking pin.

Destruction of single stage driver's side airbag (SRS)

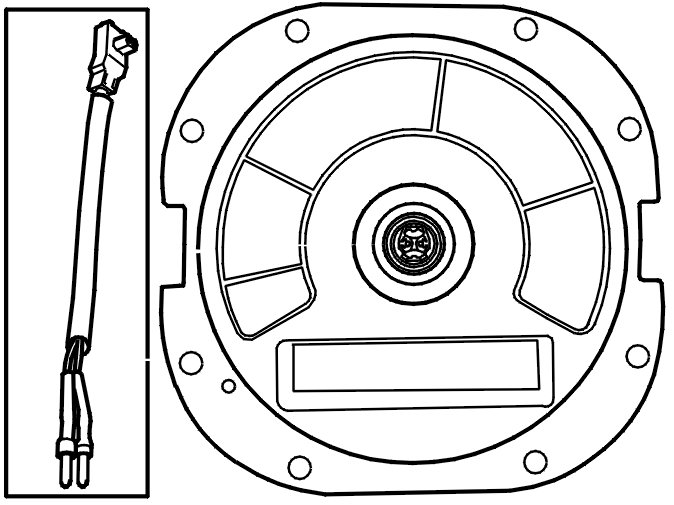

Installation of adapter cable to driver's side airbag (SRS)

Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.
Select the correct adapter cable for the airbag.
Connect the adapter cable to the airbag. Check that it is properly connected.

Warning! Remove all loose objects on, or directly connected to, the airbag.

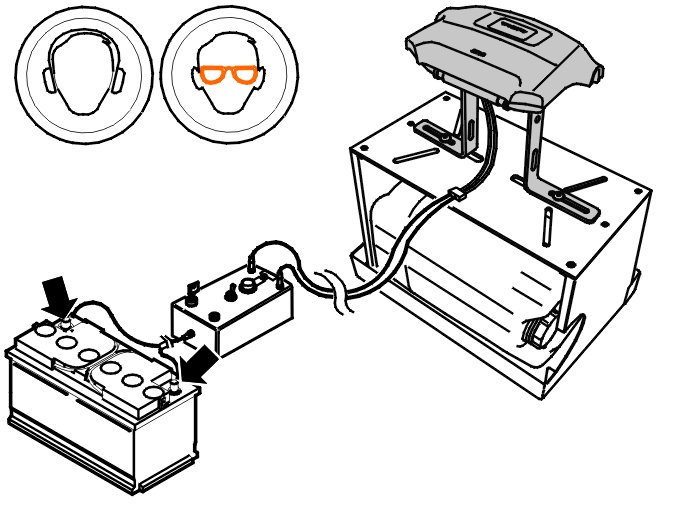

Connecting cables to the driver's side airbag (SRS)

Lay out the connection cable so that the user is 9 m from the airbag.
Connect the adapter cable to the connection cable and fully extend the leads.
Connect the cable to the discharge box.
Connect the discharge box to a fully charged 12 V battery.

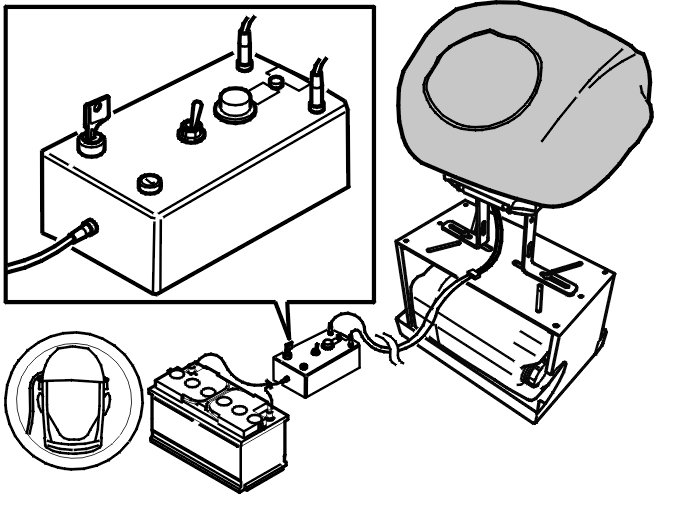

Destruction of single stage driver's side airbag (SRS)

Insert the key and turn it to position 1.
Destroy the airbag by connecting the rocker switch and push-button.
Turn the key to position 0.
Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.

Warning! Use pliers when removing due to heat development.

If the adapter cable is still attached, detach the adapter cable from the airbag as soon as possible after destruction. Use protective safety gloves.
Remove the destroyed airbag from the fixture.

Destruction of dual stage driver's side airbag (SRS)

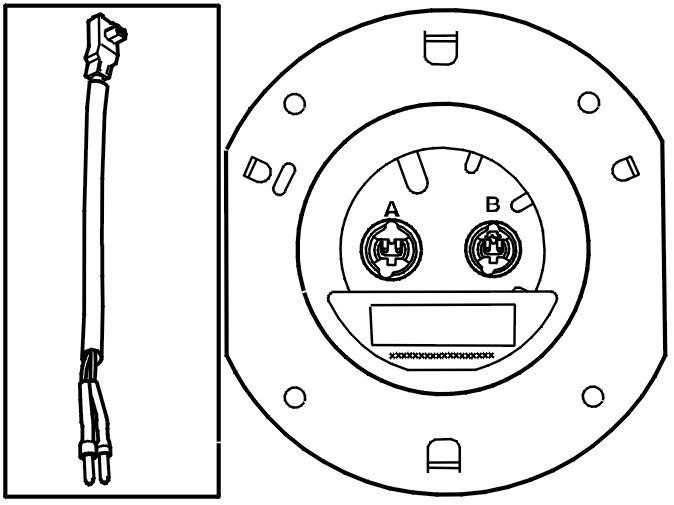

Installing the adapter cable to airbag stage 1

Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.
Connect the adapter cable to stage 1, marked on the airbag either with an "A" or in green. Check that the cable is properly connected.

Connecting cables to the driver's side airbag (SRS)

Then connect the adapter cable to stage 2, marked on the airbag either with a "B" or in purple.

Warning! Avoid skin contact with the airbag due to heat development.

Destruction of airbag stage 2

Insert the key and turn it to position 1.
Destroy the airbag by connecting the rocker switch and push-button.
Turn the key to position 0.
Remove the key from the discharge box and store so that it is inaccessible for unauthorized use.

Warning! Use pliers when removing due to heat development.

If the adapter cable is still attached, detach the adapter cable from the airbag as soon as possible after destruction. Use protective safety gloves.
Remove the destroyed airbag from the fixture.

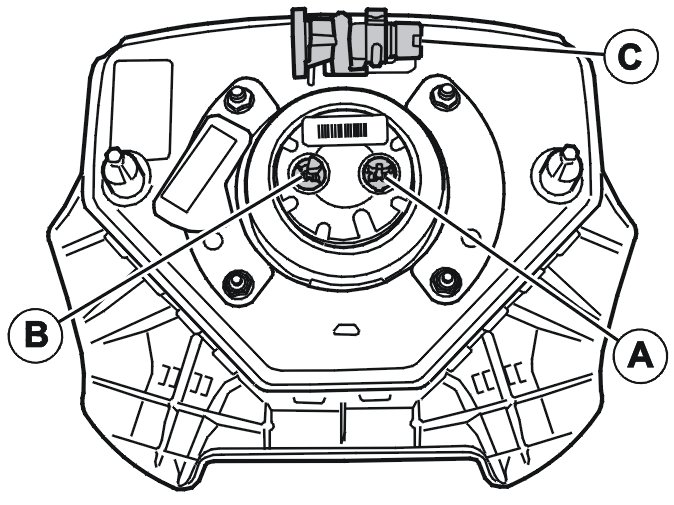

Destruction of three stage driver's side airbag (SRS)

Installing the adapter cable to airbag stage 1

Then connect the adapter cable to stage 3, marked on the airbag either with a "C" or in yellow.

Warning! Avoid skin contact with the airbag due to heat development.

Destruction of airbag stage 3
