Seat Belt Retractor, Rear

Operation number: 88422-288404-2

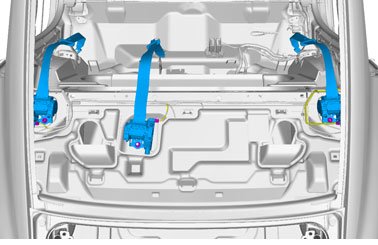

Seat belt retractor, rear

Removal

Note! Removal steps in this procedure may contain installation details.

Follow instruction for handling of non-deployed pyrotechnical part Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Battery, disconnection Battery Disconnecting and Connecting

Remove parcel shelf Refer to: Parcel shelf Service and Repair





Perform connector ignition cable Refer to: Igniter wire connector Igniter Wire Connector

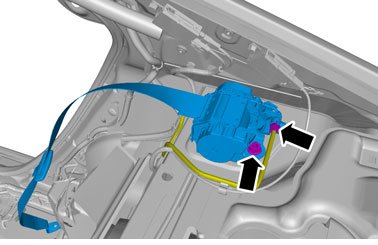

Torque: Safety belt retractor rear to body, 40 Nm

Installation

To install, reverse the removal procedure.

Perform seatbelt function, check Refer to: Seat belt function, check Testing and Inspection

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
