Signal Specification, Occupant Weight Sensor (OWS)

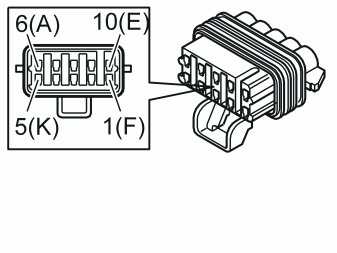

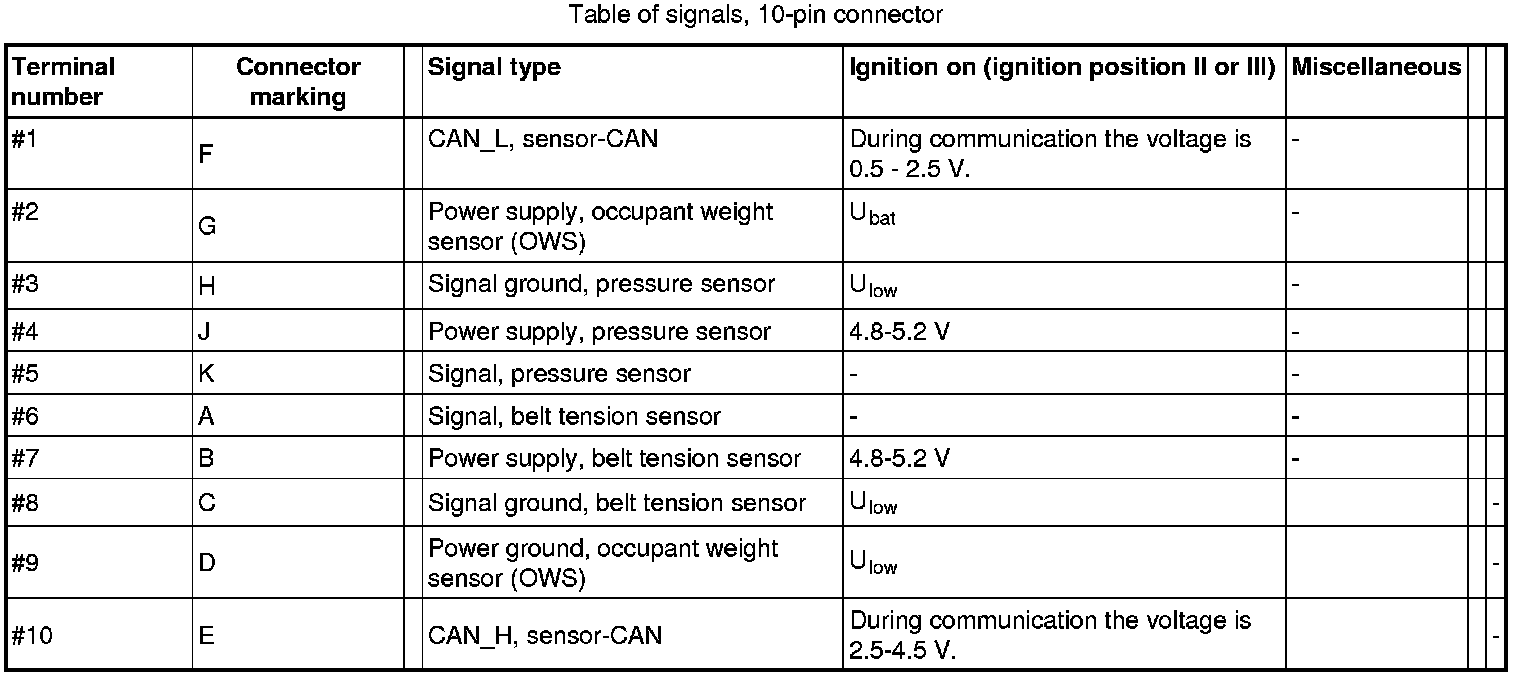

Signal specification

General

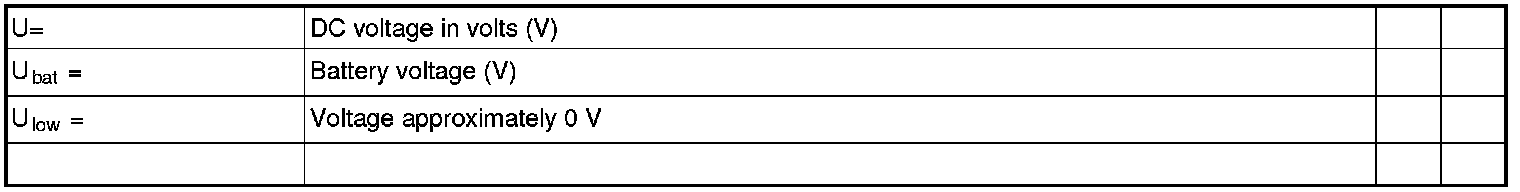

All values specified below are between the relevant terminal and terminal #9 (power ground).
