Inflatable Curtain

Operation number: 88451-2

Inflatable curtain

Removal

Note! Removal steps in this procedure may contain installation details.

Detach the relevant side headlining Refer to: Headlining Service and Repair





Battery, disconnection Battery Disconnecting and Connecting

See information regarding the handling of non-deployed pyrotechnical parts Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

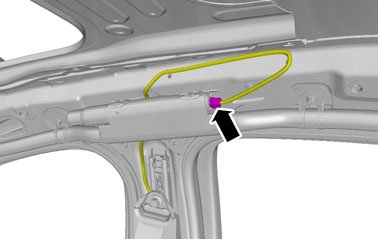

Perform connector ignition cable Refer to: Igniter wire connector Igniter Wire Connector

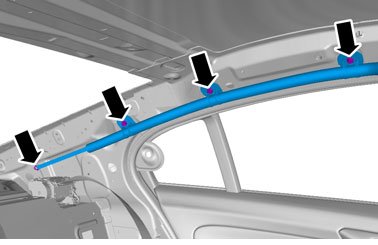

Torque: Inflatable curtain to the body, 8 Nm

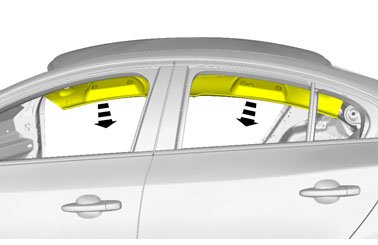

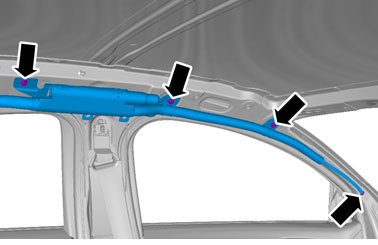

Torque: Inflatable curtain to the body, 8 Nm

Installation

To install, reverse the removal procedure.

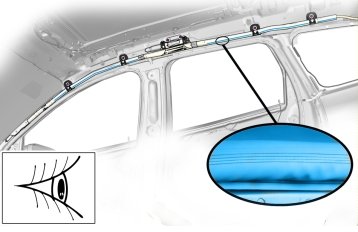

Warning! Make sure that the alignment line is not twisted.

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
