Driver's Airbag

Operation number: 88425-2

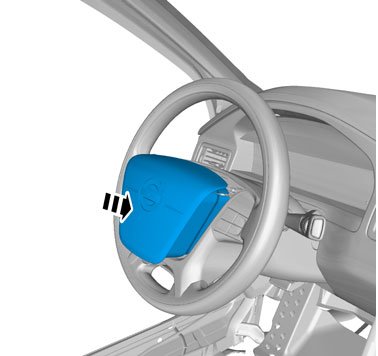

Driver's airbag

Removal

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

See information regarding the handling of non-deployed pyrotechnical parts Refer to: Handling non-deployed pyrotechnical part Handling Non-Deployed Pyrotechnical Part

Loosen upper panel steering column Refer to: Panel steering column Service and Repair

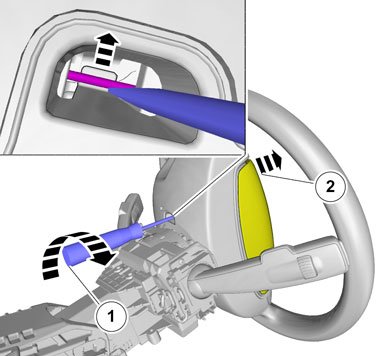

1.

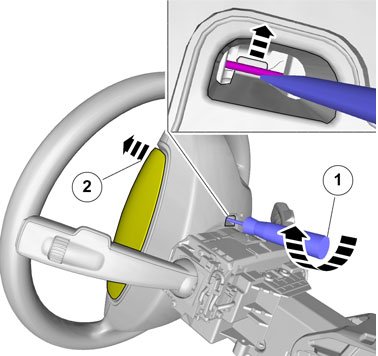

2.
Note! This step requires considerable force.

Installation

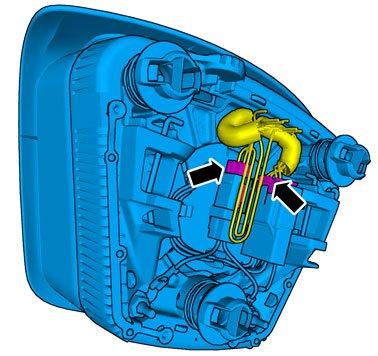

Warning! Make sure that the component has locked properly in position by pulling it towards you.

Warning! Make sure that the spring is correctly located in the lower spring seat.

Install upper panel steering column Refer to: Panel steering column Service and Repair

Perform battery disconnecting and connecting Refer to: Battery disconnecting and connecting Battery Disconnecting and Connecting

Perform supplemental restraint system (SRS), post check Refer to: Supplementary restraint system (SRS), inspection Testing and Inspection
