Home >> Volvo >> 2012 >> S60 R Design AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Parking Assist Control Module >> Service and Repair >> Parking Assistance Module (PAM), Replacing

Parking Assistance Module (PAM), Replacing






Operation number: 36633-2

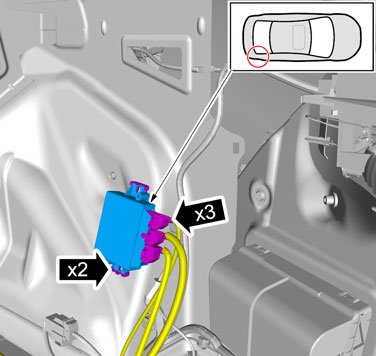

Parking assistance module

Removal





Remove right side panel cargo compartment Refer to: Side panel load space Side Panel Load Space









Installation

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning
