Fuel Delivery and Air Induction: Service and Repair

Operation number: 23380

Fuel tank draining






Removal

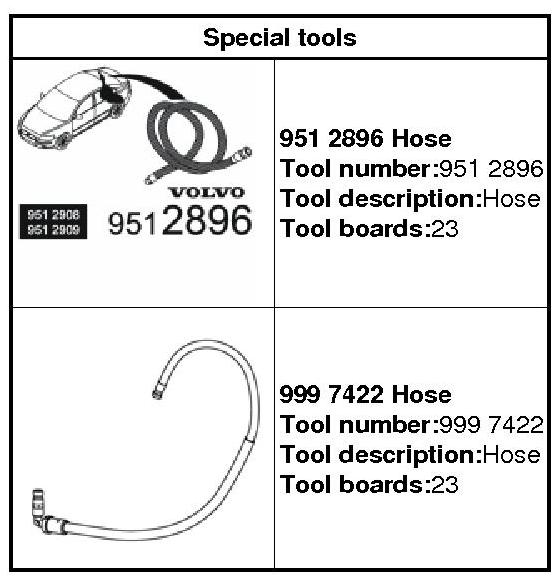

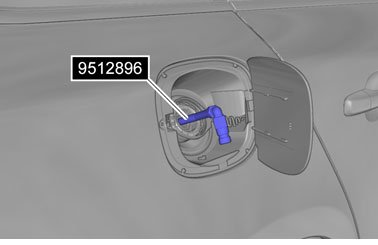

951 2896 Hose 951 2896 Hose
Use: Fuel drainage equipment.

Follow instructions for lifting points body frame Refer to: Jacking points body Locations

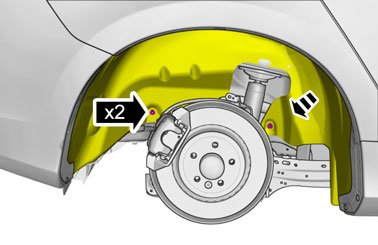

Remove the wheel Refer to: Wheels Service and Repair

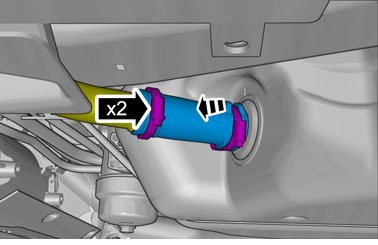

Warning! Be prepared to collect escaping fluid.

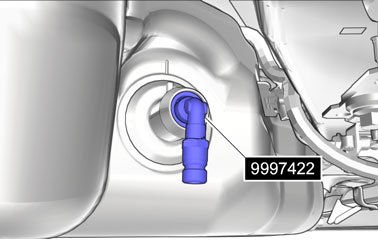

999 7422 Hose 999 7422 Hose
Use: Fuel drainage equipment.
