Removal and Replacement

Operation number: 23412-2

Fuel tank






Removal

Note! Removal steps in this procedure may contain installation details.

See information about safety information gasoline-fuel system Refer to: Safety information gasoline - fuel system, B6304T4, B5254T5 Fuel System Safety Information

Perform fuel tank draining Refer to: Fuel tank draining, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

See information about lifting points body Refer to: Jacking points body Locations





Remove muffler front Refer to: Muffler, front, B6304T4, TF-80SC AWD Muffler, Front





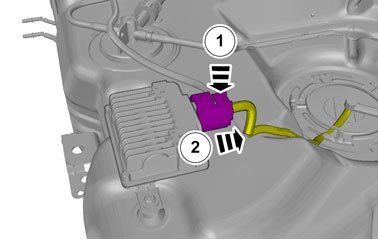

Caution! Note the position of the component before removal.

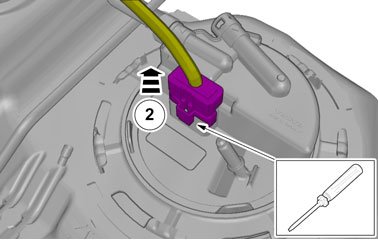

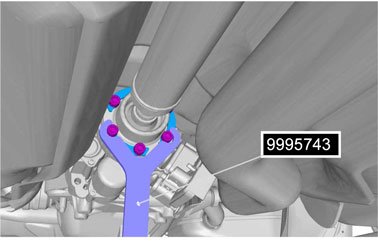

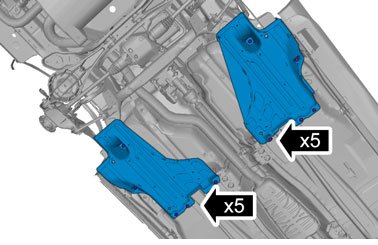

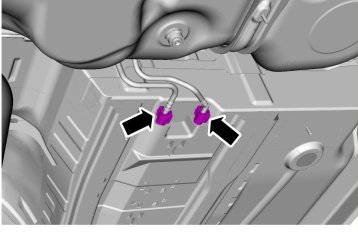

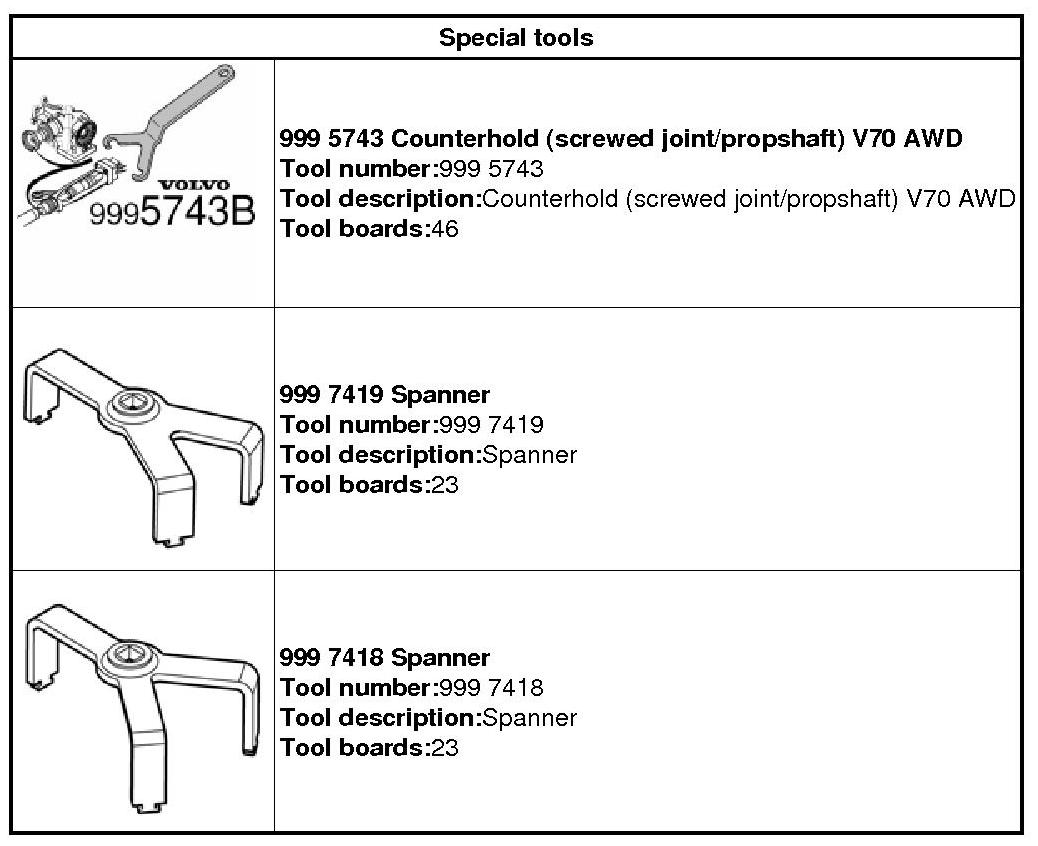

999 5743 Counterhold 999 5743 Counterhold

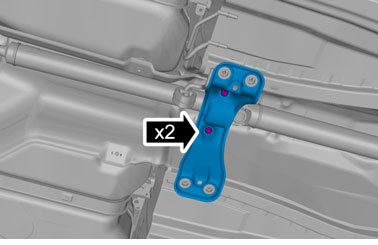

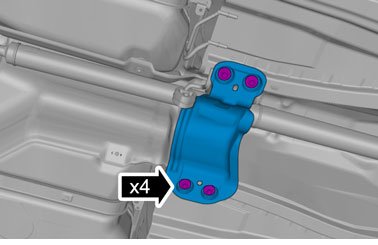

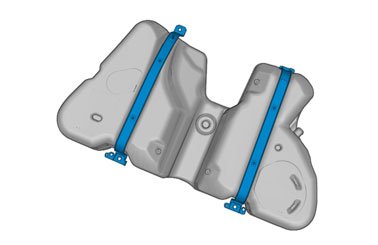

Torque: M8, 24 Nm




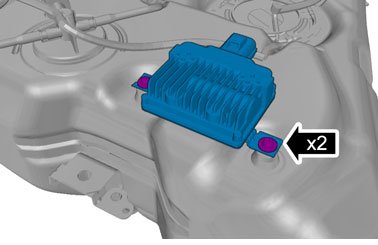

Torque: M8, 24 Nm













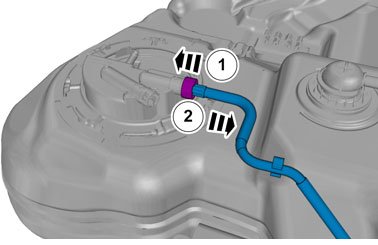

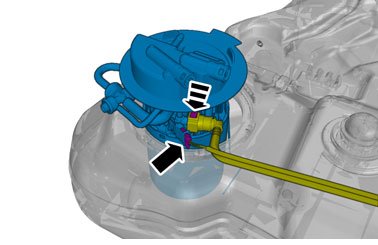

Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

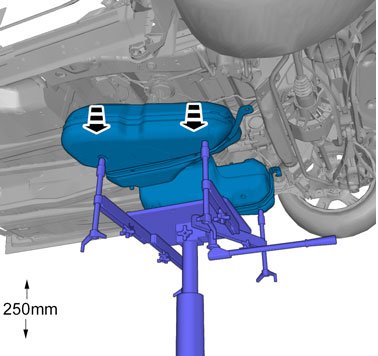

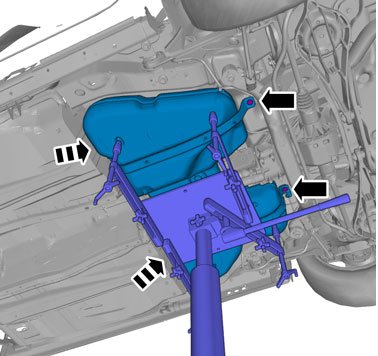

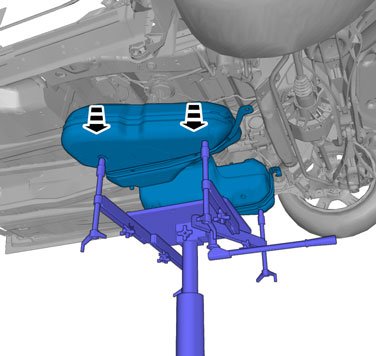

Use: Unit lift.





Caution! Make sure that the wiring harness does not catch.





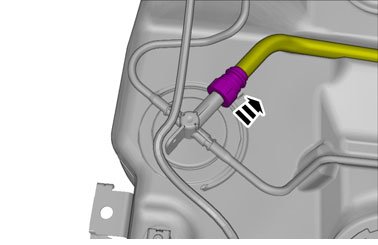

Caution! Make sure that all openings are sealed. Use new blanking caps.

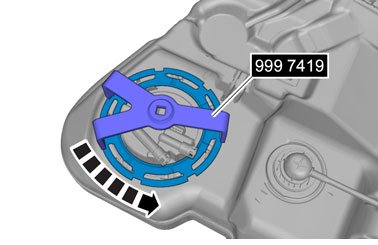

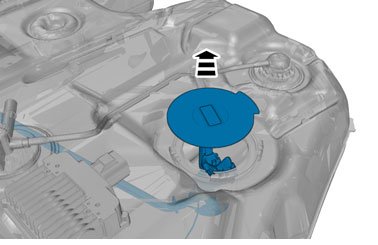

999 7419 Spanner 999 7419 Spanner








999 7418 Spanner 999 7418 Spanner

















Installation

To install, reverse the removal procedure.
