Fuel Filter: Service and Repair

Operation number: 23307-2

Extra fuel filter

Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions about safety information gasoline-fuel system Refer to: Safety information gasoline - fuel system, B6304T4, B5254T5 Fuel System Safety Information

Perform depressurizing fuel system Refer to: Fuel system pressure release, B6304T4, B5254T5 Fuel System Pressure Release

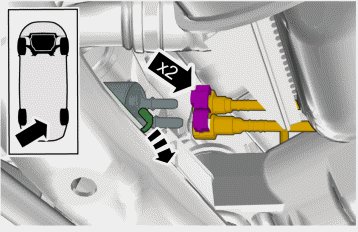

Warning! Be prepared to collect escaping fluid.

Caution! Note the routing of the lines and hoses.

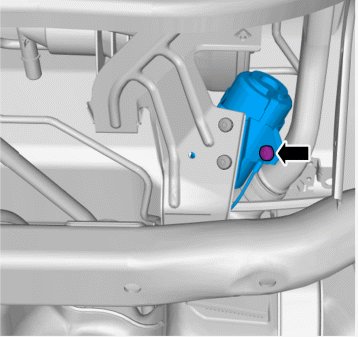

Torque: M6, 10 Nm

Installation

Caution! Make sure that the quick release couplings are correctly engaged.

To install, reverse the removal procedure.
