Removal and Replacement






Operation number: 21553-2

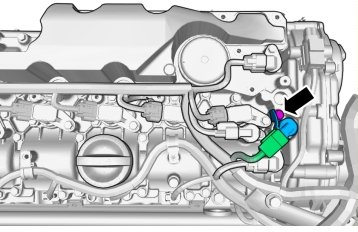

VVT solenoid

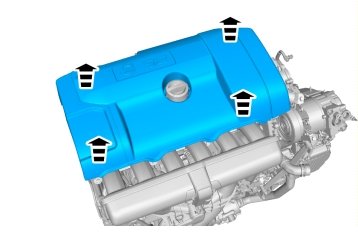

Removal

Note! Removal steps in this procedure may contain installation details.








Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
