Variable Valve Timing Actuator: Service and Repair

Operation number: 21557-2

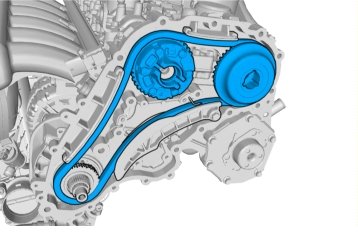

VVT unit






Removal

Remove the crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD Service and Repair




Rotate the crankshaft until piston No. 1 is at top dead center (TDC).

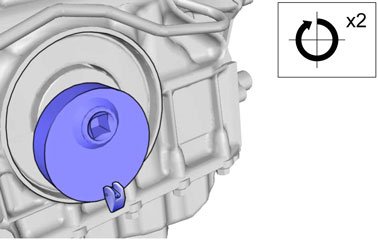

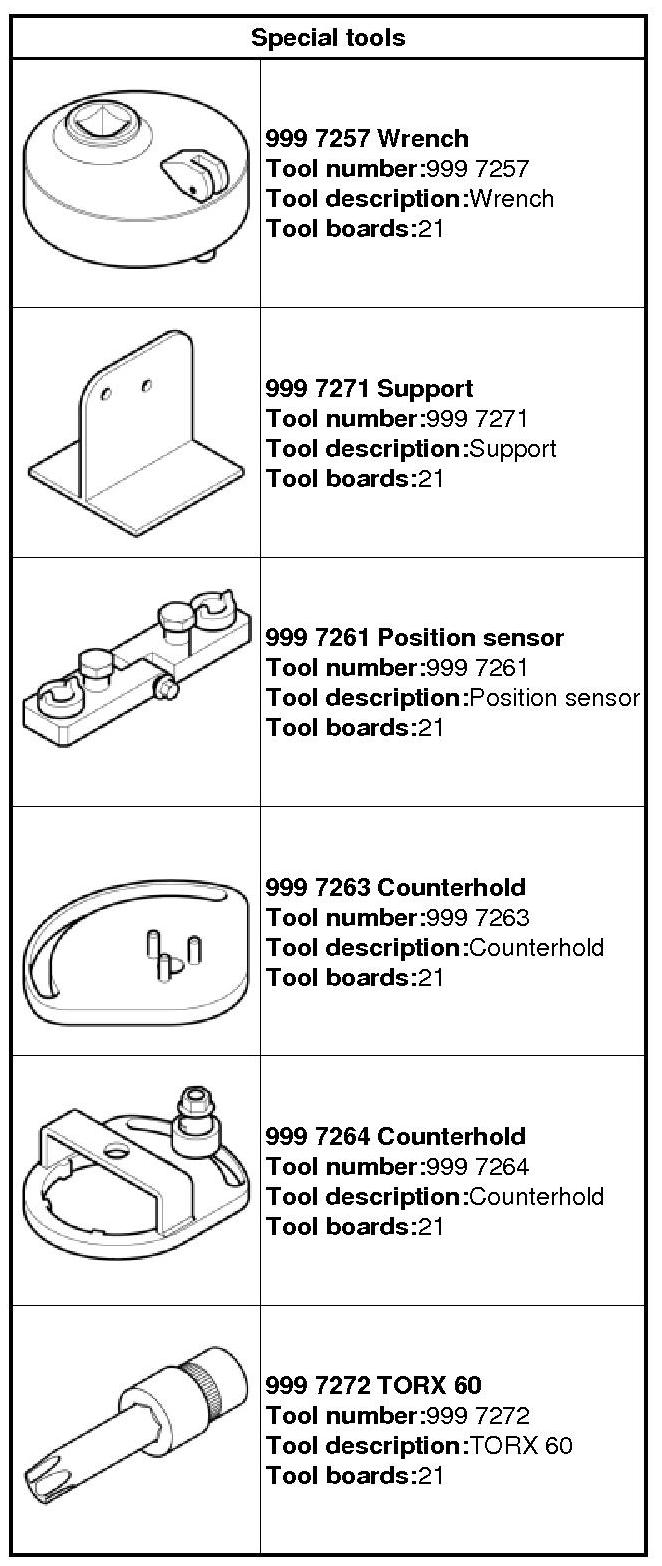

999 7257 Wrench 999 7257 Wrench

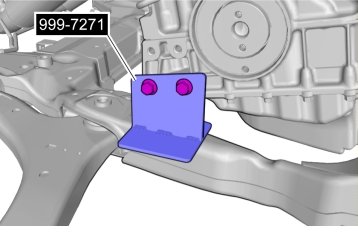

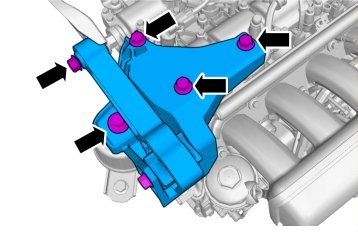

999 7271 Support 999 7271 Support

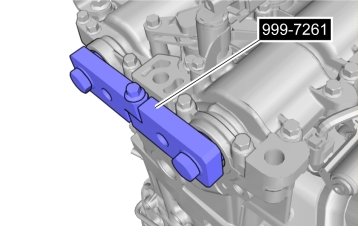

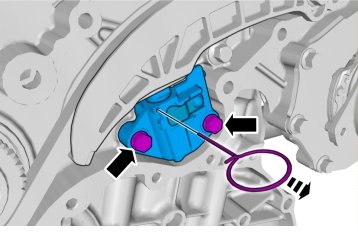

999 7261 Position sensor 999 7261 Position Sensor

Remove the outer gasket, timing cover Refer to: Gasket, outer timing cover, B6304T4 Gasket, Outer Timing Cover

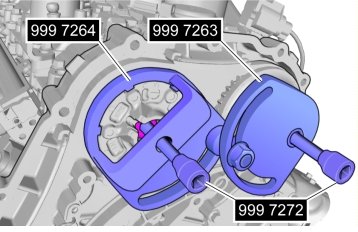

999 7263 Counterhold 999 7263 Counterhold 999 7264 Counterhold 999 7264 Counterhold 999 7272 TORX 60 999 7272 Torx 60








Torque: VVT unit, center screw, 30 Nm

Installation








Torque: M7, 17 Nm




999 7264 Counterhold 999 7264 Counterhold 999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx 60
1. Torque: Center bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

2. Torque: Center bolt, intake camshaft, 110 Nm

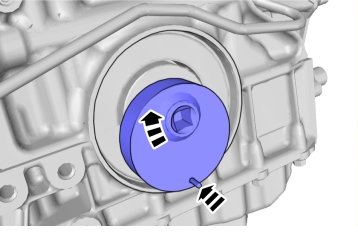

999 7257 Wrench 999 7257 Wrench

Install gasket outer timing gear casing Refer to: Gasket, outer timing cover, B6304T4 Gasket, Outer Timing Cover




999 7261 Position sensor 999 7261 Position Sensor




Torque: M12, 80 Nm




999 7271 Support 999 7271 Support

Install crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD Service and Repair
