Computers and Control Systems: Specifications

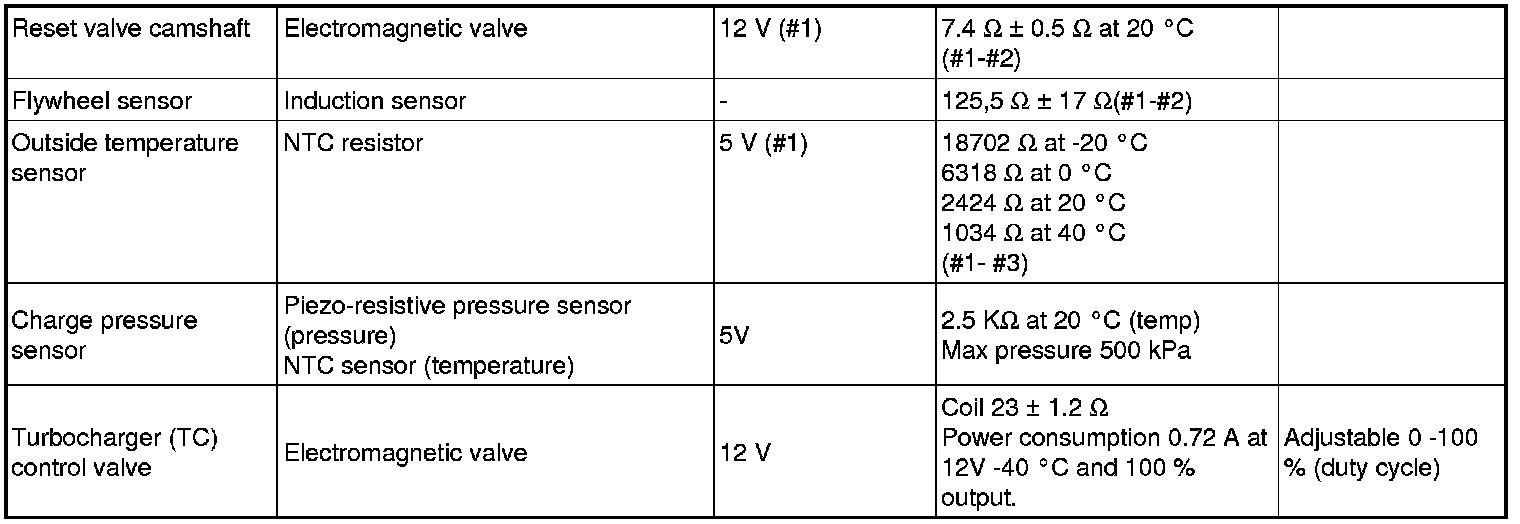

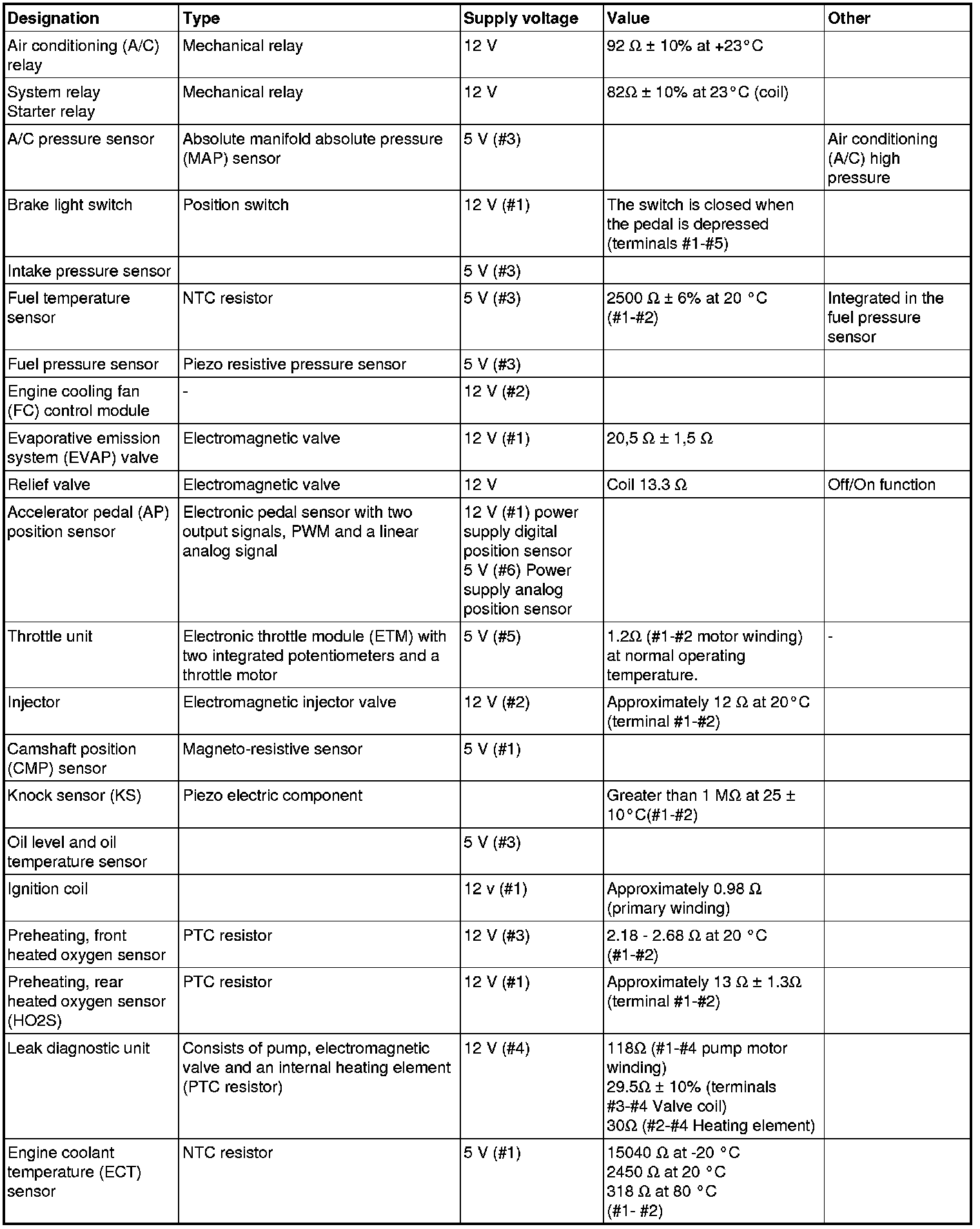

Component specifications
The component specification gives the value of the component when the connector is disconnected. Where no value is given, it is not possible to measure a relevant value at the component.
Numbers in parenthesis indicate to which pin of the component the value corresponds.
