Control Modules That Communicate Via LIN






Control modules that communicate via LIN

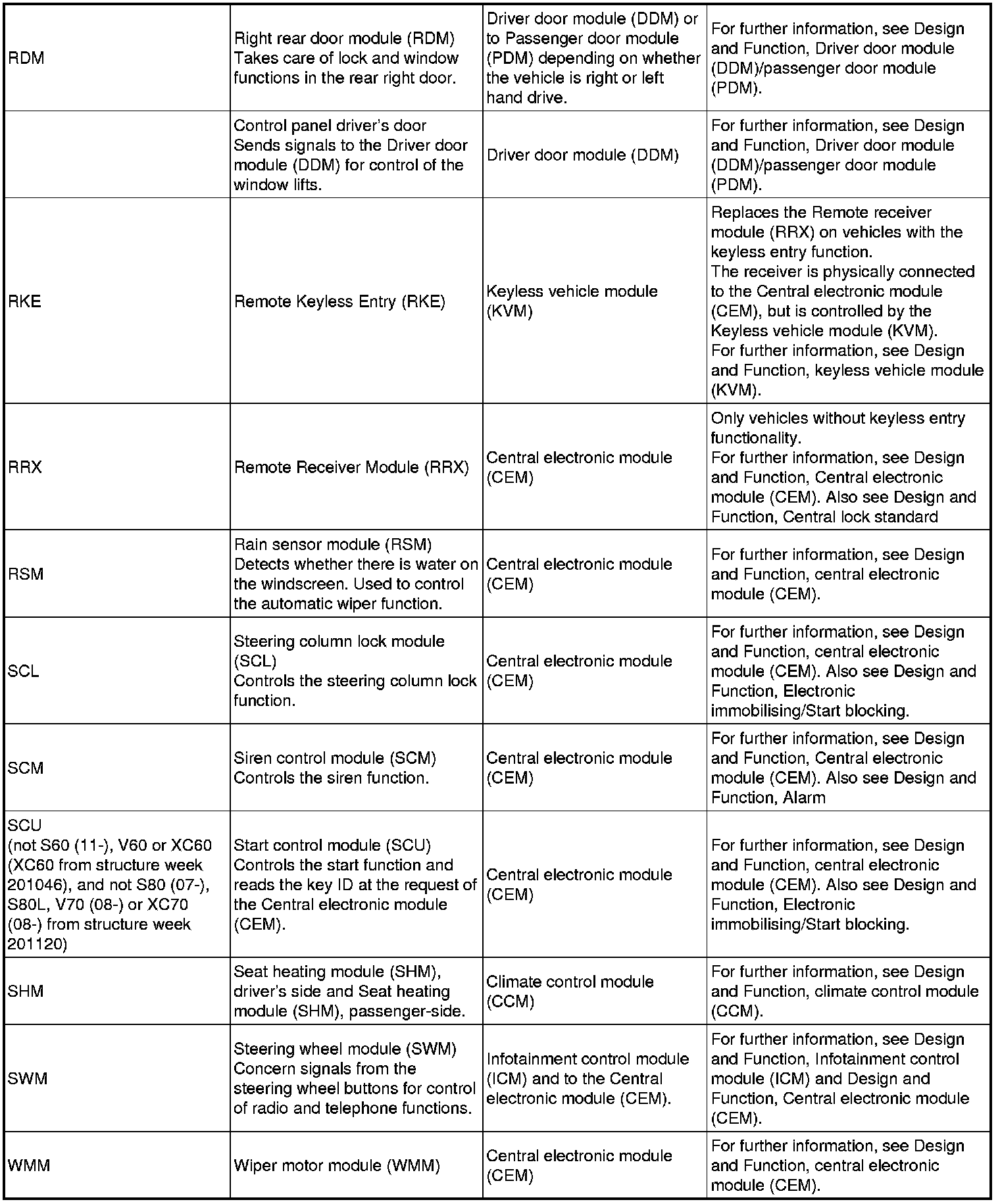

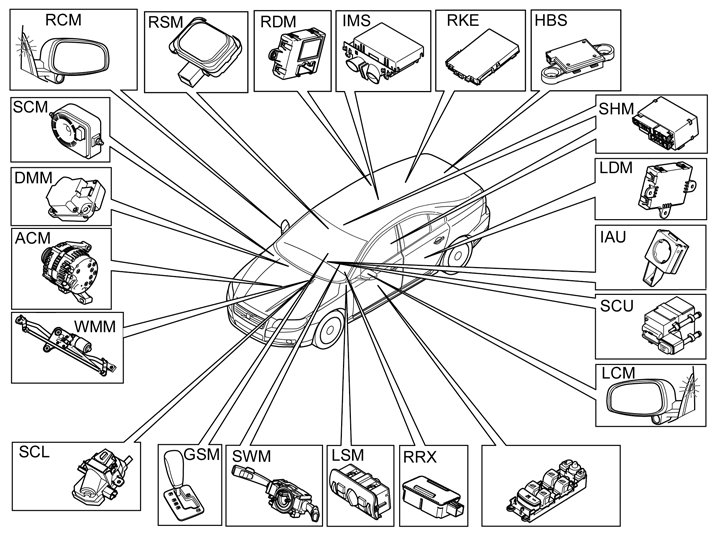

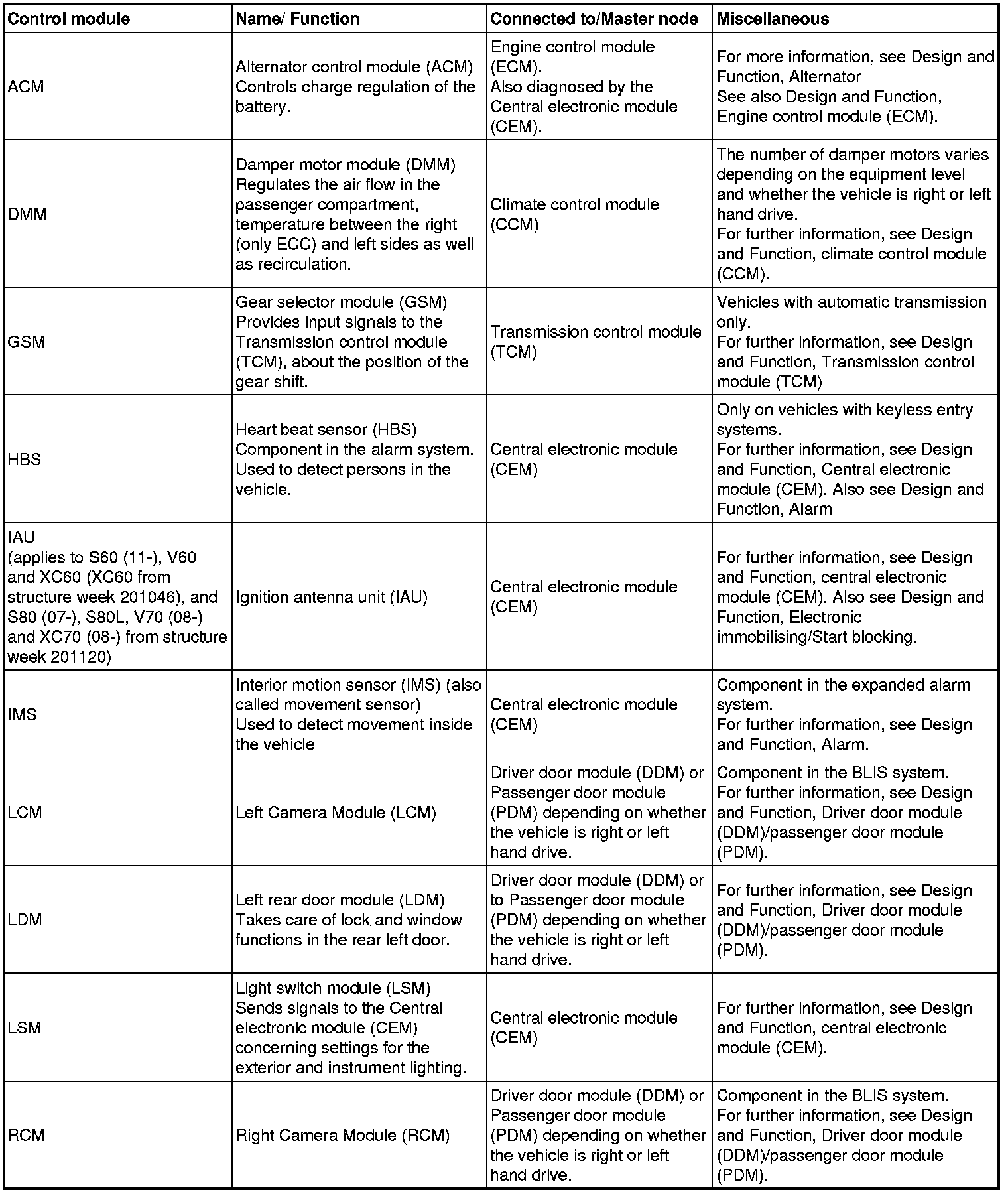

Note! The illustration above and the table below is an example that shows model year 2007. All other information in the document is general and applies to all model years.
