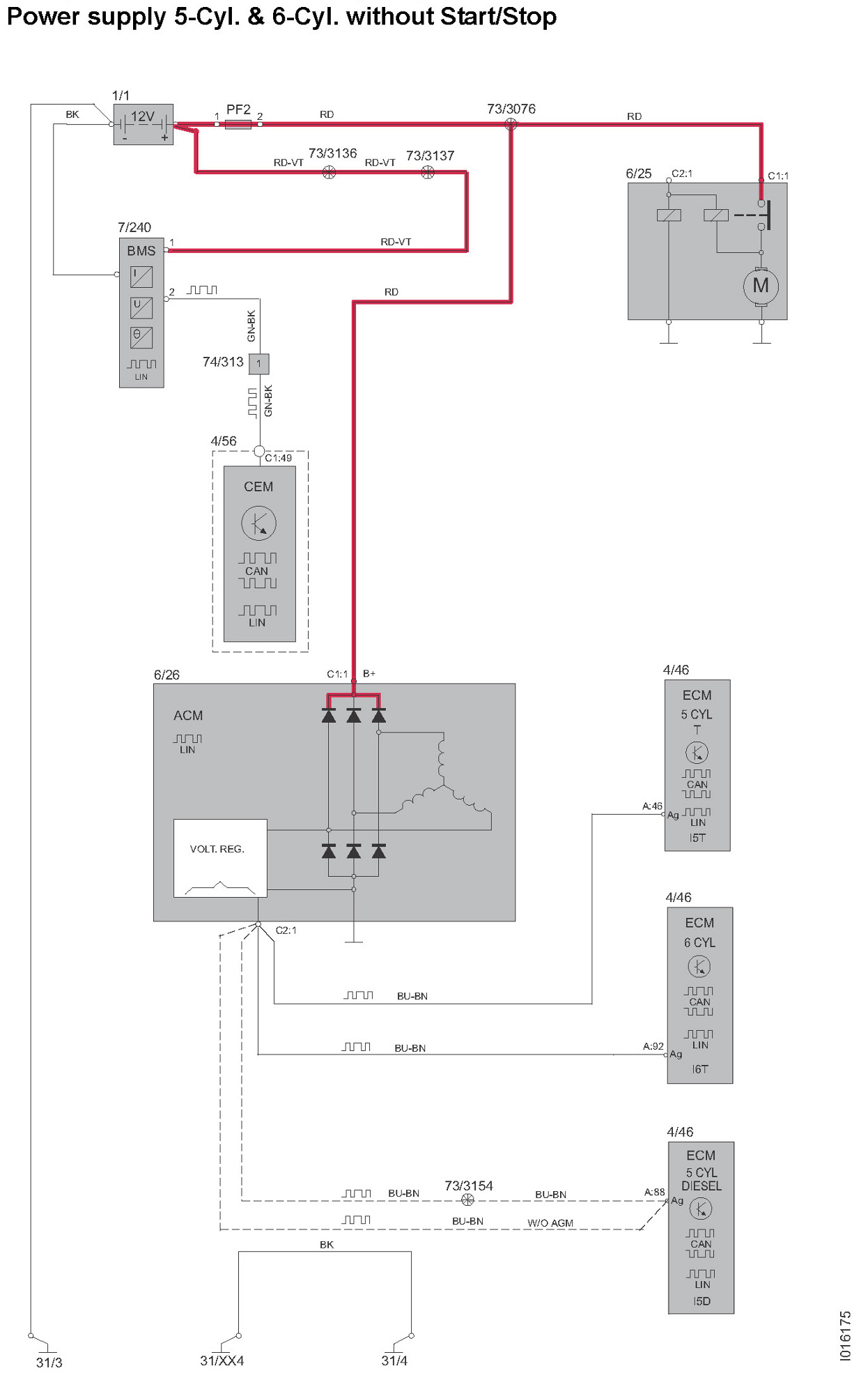

Power Supply 5-Cyl. & 6-Cyl. Without Start/Stop

Power Supply 5-Cyl. & 6-Cyl. Without Start/Stop







Diagram Legend: Changes Introduced Up to and Including Structure Week 11W20

Wire Color Code Identification and Other Abbreviations: Wire Color Code and Other Abbreviations

List of Components By Component Number: Changes Introduced Up to and Including Structure Week 11W20
