Wheel Hub Front, Checking

Wheel hub front, checking






Check

Remove the front brake disc Refer to: Front brake disc, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Brake Disc Front, Replacing

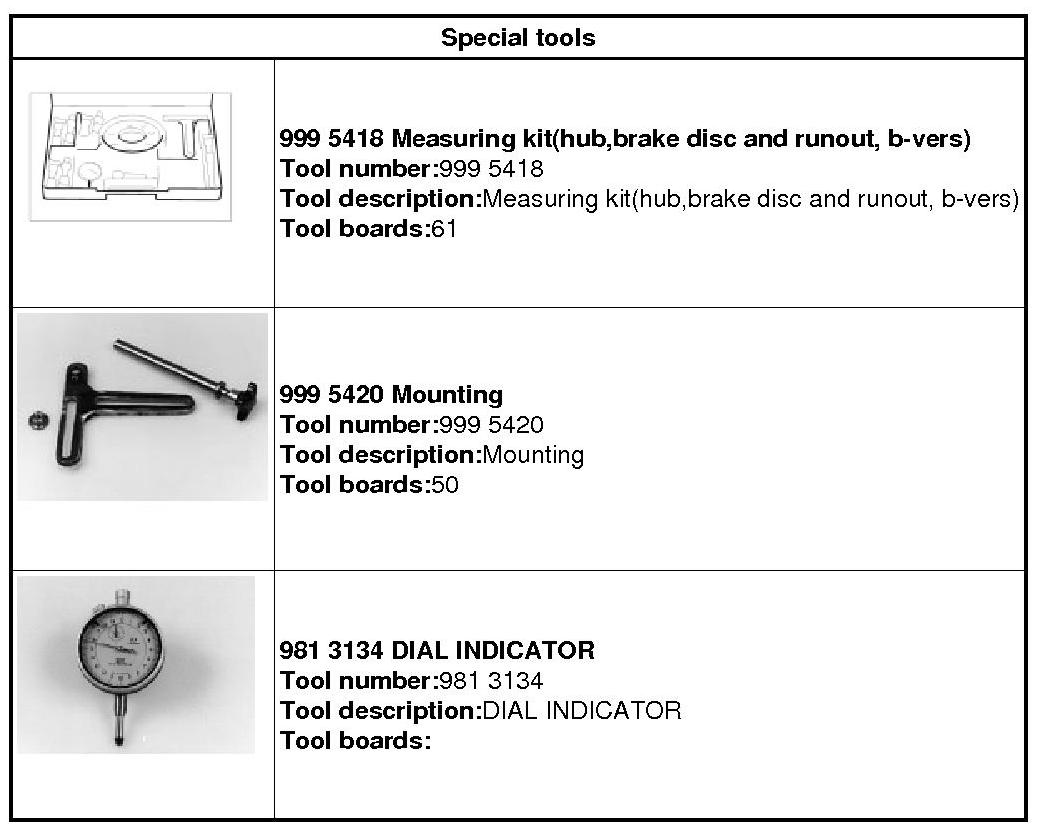

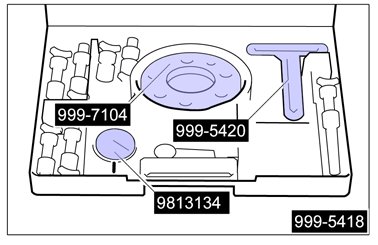

999 5418 Measuring kit 999 5418 Measuring Kit

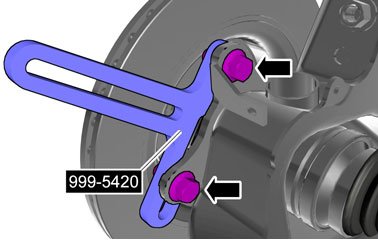

999 5420 Mounting 999 5420 Mounting

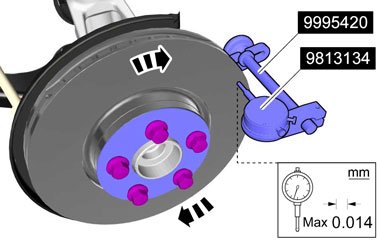

Slowly rotate the brake disc and note the dial indicator gauge readings.
999 5420 Mounting 999 5420 Mounting 981 3134 DIAL INDICATOR 981 3134 Dial Indicator

Note! This step is only necessary when installing a new component.

Replace wheel bearing front Refer to: Wheel bearing front Front Wheel Hub and Bearing

Perform brake disc front, checking Refer to: Brake disc front, checking Brake Disc Front, Checking
