Rear Wheel Hub and Bearing

Operation number: 77381-2

Rear wheel hub

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the wheel Refer to: Wheels Service and Repair

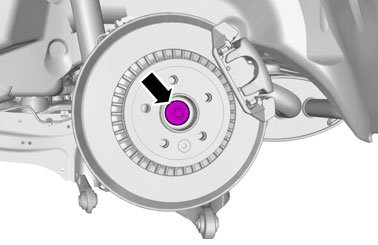

Torque: Driveshaft to wheel hub (rear), 35 Nm





Warning! Make sure that no load is placed on the brake hose.

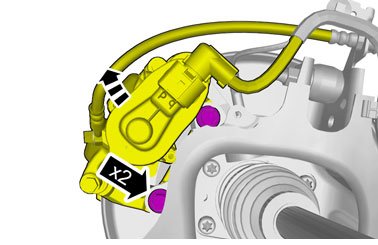

Torque: Mount rear brake caliper, 110 Nm

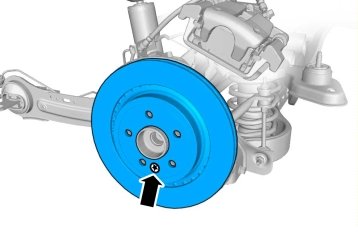

Torque: Rear brake disc to wheel hub, 35 Nm

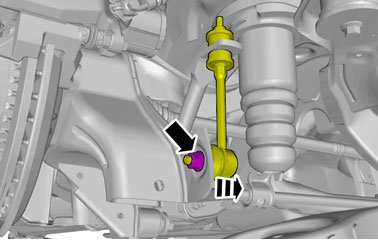

Torque: Rear stabilizer bar link to lower stabilizer bar, 60 Nm

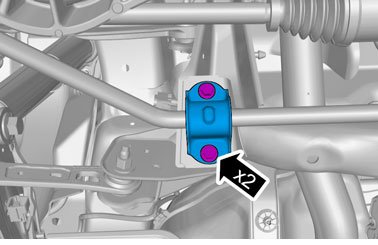

Torque: M10, 50 Nm

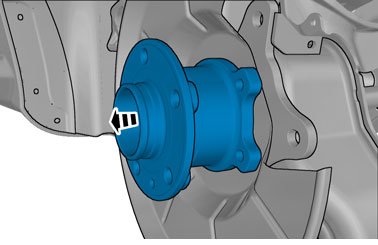

Torque: Wheel bearing rear to wheel knuckle, 110 Nm





Installation

To install, reverse the removal procedure.
