Return Hose, Power Steering

Operation number: 64531-2

Return hose, power steering






Removal

Note! Removal steps in this procedure may contain installation details.

Remove reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

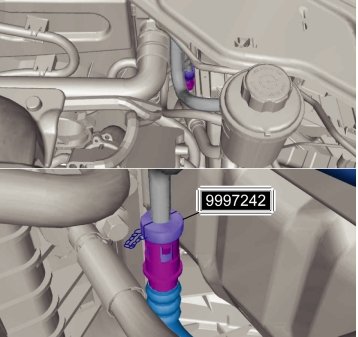

Warning! Be prepared to collect escaping fluid.

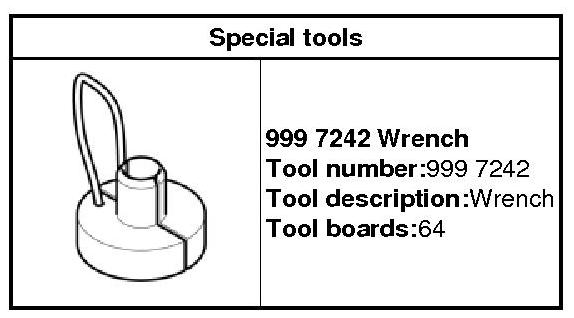

999 7242 Wrench 999 7242 Wrench

Follow instructions for lifting points body frame Refer to: Jacking points body Locations

Remove right front wheel Refer to: Wheels Service and Repair

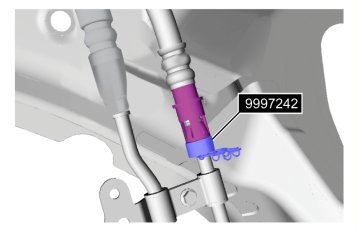

Warning! Be prepared to collect escaping fluid.

999 7242 Wrench 999 7242 Wrench

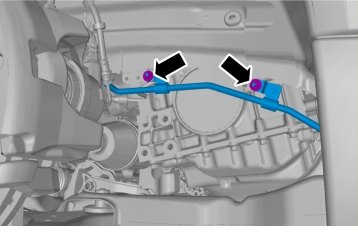

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
