Power Steering Delivery Pipe

Power steering delivery pipe






Removal

Note! Removal steps in this procedure may contain installation details.

Remove right front wheel Refer to: Wheels Service and Repair





Warning! Be prepared to collect escaping fluid.

Caution! Make sure that all openings are sealed. Use new blanking caps.

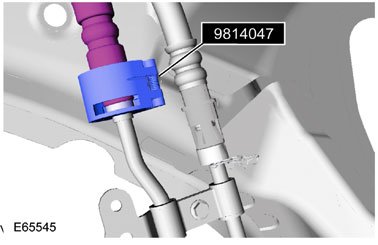

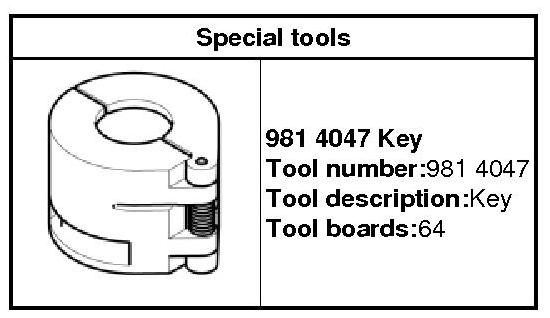

981 4047 Wrench 981 4047 Wrench

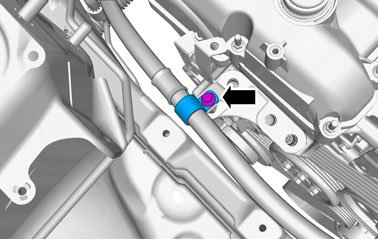

Torque: M6, 10 Nm

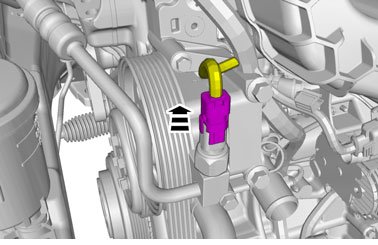

Warning! Be prepared to collect escaping fluid.

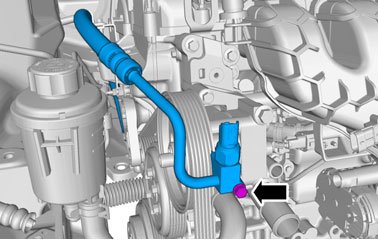

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
