Hose - Power Steering Reservoir For Power Steering Pump

Operation number: 64537-2

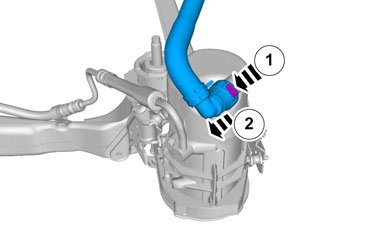

Hose - Power steering reservoir for power steering pump

Removal

Drain reservoir fluid power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair









Remove right headlight Refer to: Headlamps Headlamps

Remove right front wheel Refer to: Wheels Service and Repair









Caution! Make sure that all openings are sealed. Use new blanking caps.

Installation

To install, reverse the removal procedure.

Fill container oil power steering Refer to: Reservoir fluid power steering, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

Perform power steering system, bleeding air Refer to: Power steering system, bleeding, B6304T4, B5254T5 Service and Repair
