Drive Belt: Service and Repair

Operation number: 21581-2

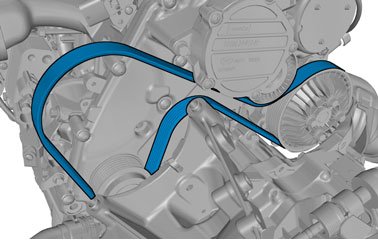

Accessory Drive Belt

Removal

Note! Removal steps in this procedure may contain installation details.

Remove the following items:
- battery Refer to: Battery Removal and Replacement
- air cleaner (ACL) housing Refer to: Air cleaner housing, B6304T4 Service and Repair

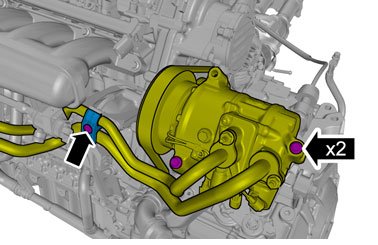

Torque: M6, 10 Nm

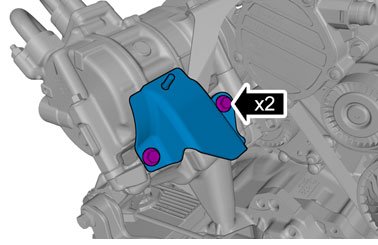

Torque: M8, 24 Nm

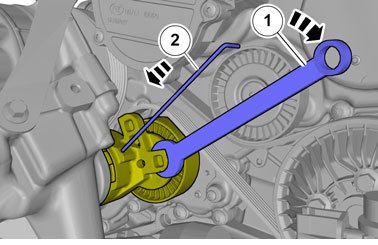

Use: Box wrench 19 mm.
Use: Pin 3 mm.

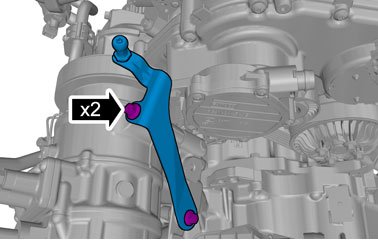

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
