Home >> Volvo >> 2012 >> S60 R Design AWD L6-3.0L Turbo VIN 90 B6304T4 >> Repair and Diagnosis >> Locations >> Component Locations >> Changes Introduced Up to and Including Structure Week 11W20 >> Control Module Overview

Control Module Overview



Control Modules

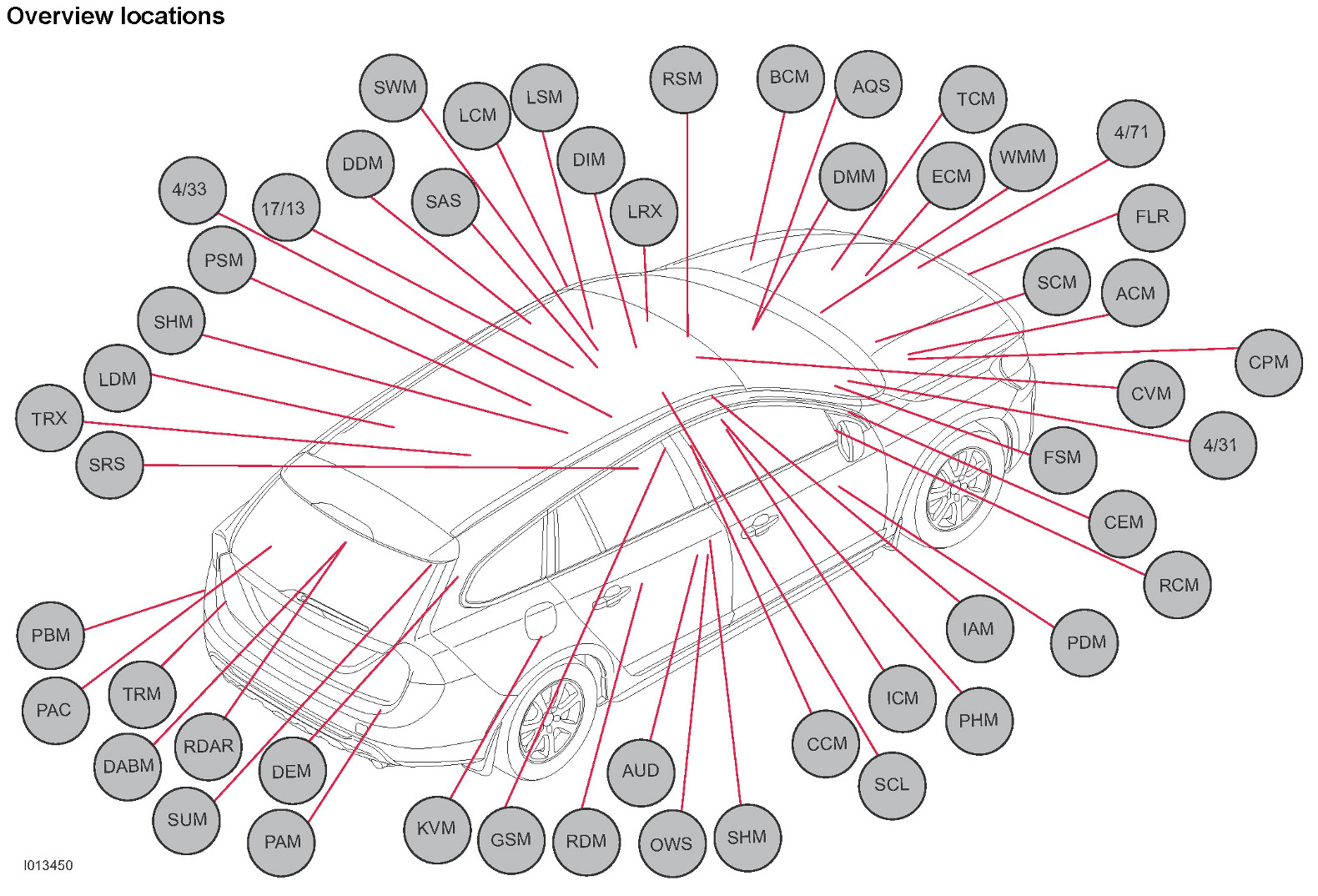

Overview Locations

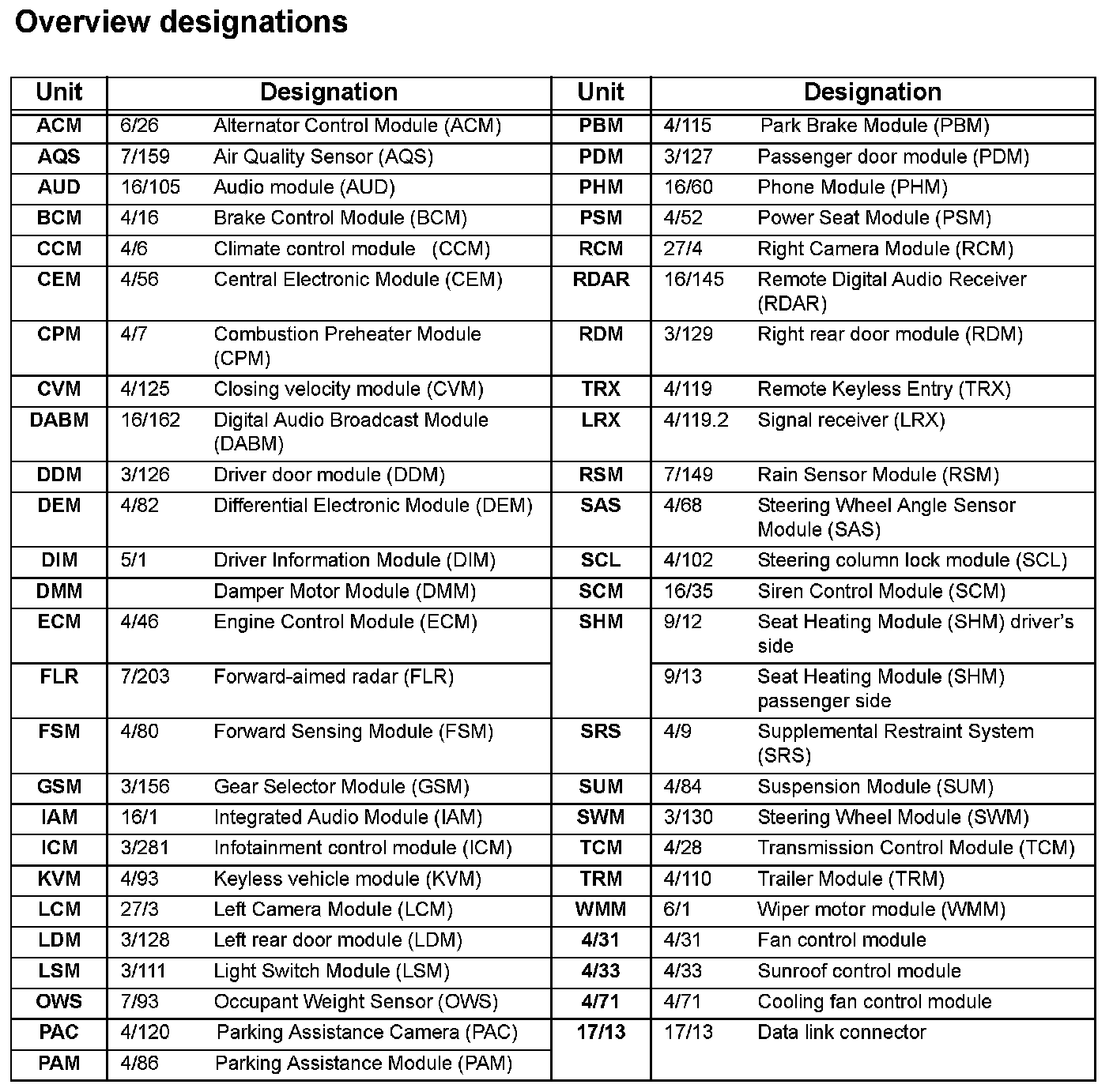

Overview Designations
