Tail Lamp: Service and Repair

Operation number: 35310-2

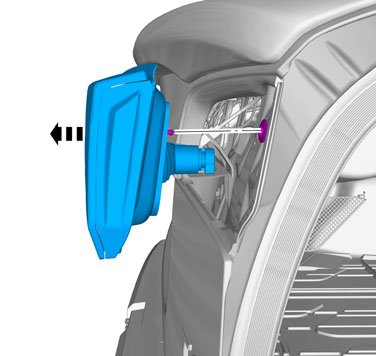

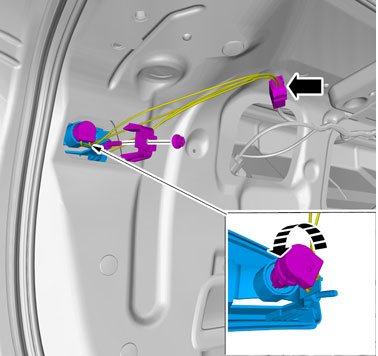

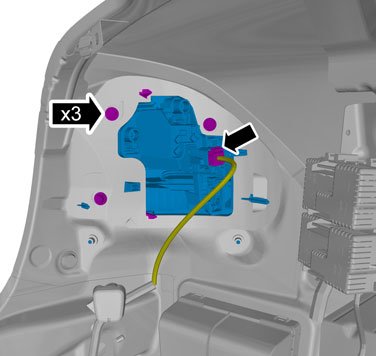

Tail lamp

Removal

Note! Removal steps in this procedure may contain installation details.

See the information regarding component location, tail lamp Refer to: Location of components, tail lamp. Locations

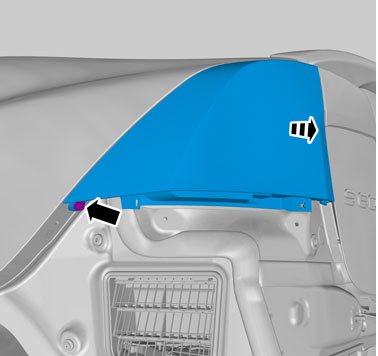

Remove panel, tailgate Refer to: Panel, luggage compartment lid

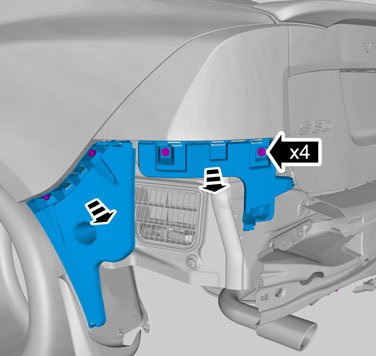

Loosen relevant side casing bumper rear Refer to: Cover bumper rear Service and Repair




Torque: M6, 10 Nm

Remove side panel cargo compartment Refer to: Side panel load space Side Panel Load Space




Torque: M6, 10 Nm





Installation

To install, reverse the removal procedure.
