Receiver Dryer: Service and Repair

Receiver drier

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the refrigerant Refer to: Refrigerant, draining Refrigerant, Draining

Remove the Condenser to Connector Block line Refer to: Condenser to Connector Block line Condenser to Connector Block Line

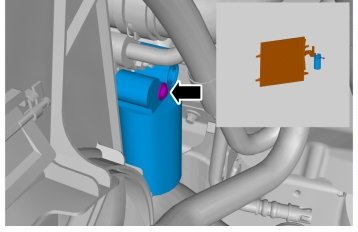

Torque: M7, 17 Nm

Installation

To install, reverse the removal procedure.
