Climate Units

Climate units

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Climate Units - Positioning The Climate Control Unit's Components In The Passenger/External Rear View Mirrors:

Positioning the climate control unit's components in the passenger/external rear view mirrors:
- (1) Climate control unit
- (2) Air distribution, right-hand side
- (3) Air distribution, left-hand side
- (4) Climate control module (CCM), climate control system
- (5) In-vehicle temperature sensor
- (6) Outdoor temperature sensor, left-hand side.

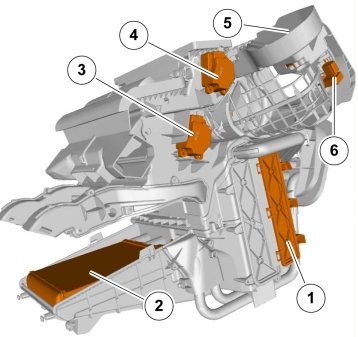

Climate Units - Location Of The Climate Control Unit Components (Part 1):

Location of the climate control unit components:
- (1) Cabin air filter
- (2) Heat exchanger
- (3) Damper motor module (DMM), air distribution right-hand side
- (4) Damper motor module (DMM), defroster
- (5) Damper motor module (DMM), recirculation
- (6) Air quality sensor (AQS)

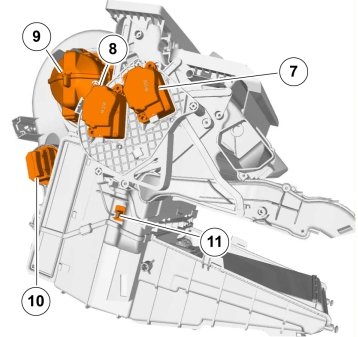

Climate Units - Location Of The Climate Control Unit Components (Part 2):

- (7) Damper motor module (DMM), air distribution left-hand side
- (8) Damper motor module (DMM), ventilation
- (9) Blower motor
- (10) Blower fan rheostat
- (11) Temperature sensor, evaporator.

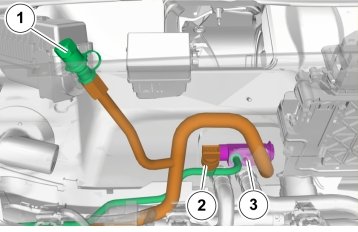

Climate Units - Location Of The Climate Control Unit Components In The Engine (Part 1):

Location of the climate control unit components in the engine compartment:
- (1) Service valve, LT
- (2) Pressure valve, HT
- (3) Expansion valve, (TXV)

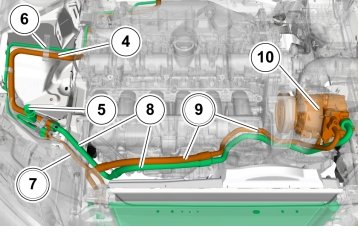

Climate Units - Location Of The Climate Control Unit Components In The Engine Compartment (Part 2):

- (4) Pipe/hose between expansion valve - junction block
- (5) Service valve, HT
- (6) Pipe/hose between junction block - expansion valve
- (7) Pipe/hose condenser - junction block
- (8) Pipe/hose junction block - compressor
- (9) Pipe/hose compressor - condenser
- (10) Compressor

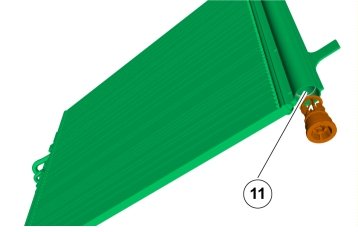

Climate Units - Locations Of The Climate Control Unit Components In The Engine Compartment - Position Of Dryer Filter In A/c Condenser (Part 3):

Position of dryer filter in A/C condenser:
- (11) Dryer/filter - integrated in left side of condenser
