Refrigerant Pipe Compressor to Condenser

Operation number: 87465-2

Refrigerant pipe compressor to condenser

Note! Some variation in the illustrations may occur, but the essential information is always correct.

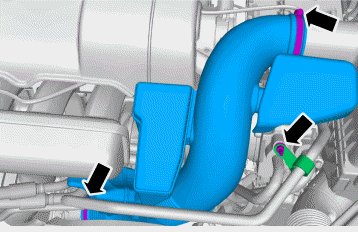

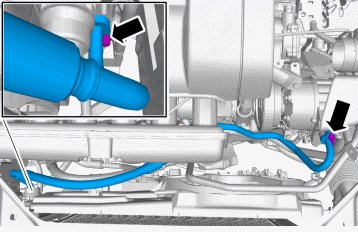

Removal

Note! Removal steps in this procedure may contain installation details.

Drain the refrigerant from the A/C system according to: Refrigerant, draining Refrigerant, Draining.





Torque: M8, 24 Nm





Torque: M5, 5 Nm





Torque: M6, 10 Nm

Torque: M8, 24 Nm

Installation

Change and lubricate the O-rings with compressor oil.

To install, reverse the removal procedure

Vacuum pump the air conditioning (A/C) system. See: Vacuum pumping Vacuum Pumping.
Fill the A/C system with refrigerant according to: Refrigerant, filling Refrigerant, Filling.
Carry out leak detection of the A/C system in accordance with: Leak detection, tracer agent Leak Detection, Tracer Agent

Carry out a performance test on the climate control system. Climate control system, check Climate Control System, Check.
