Condenser HVAC: Service and Repair

Operation number: 87408-2

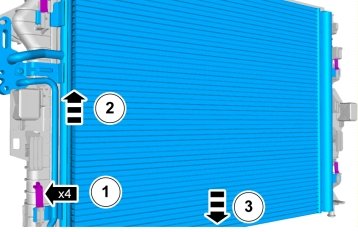

Condenser

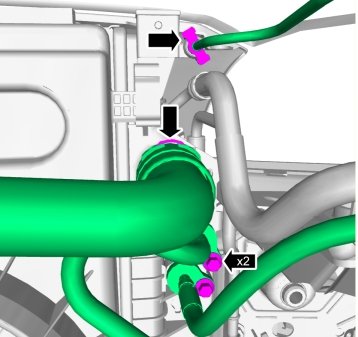

Removal

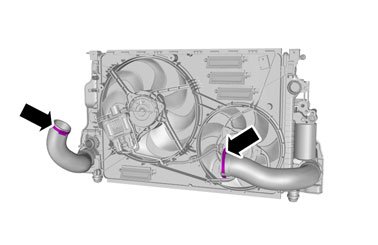

Drain cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

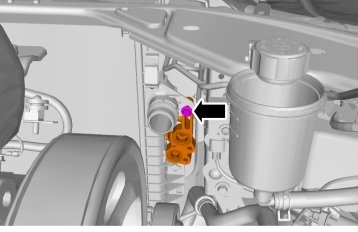

Drain refrigerant, draining, vacuum-pumping and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, and Filling









Warning! Be prepared to collect escaping fluid.

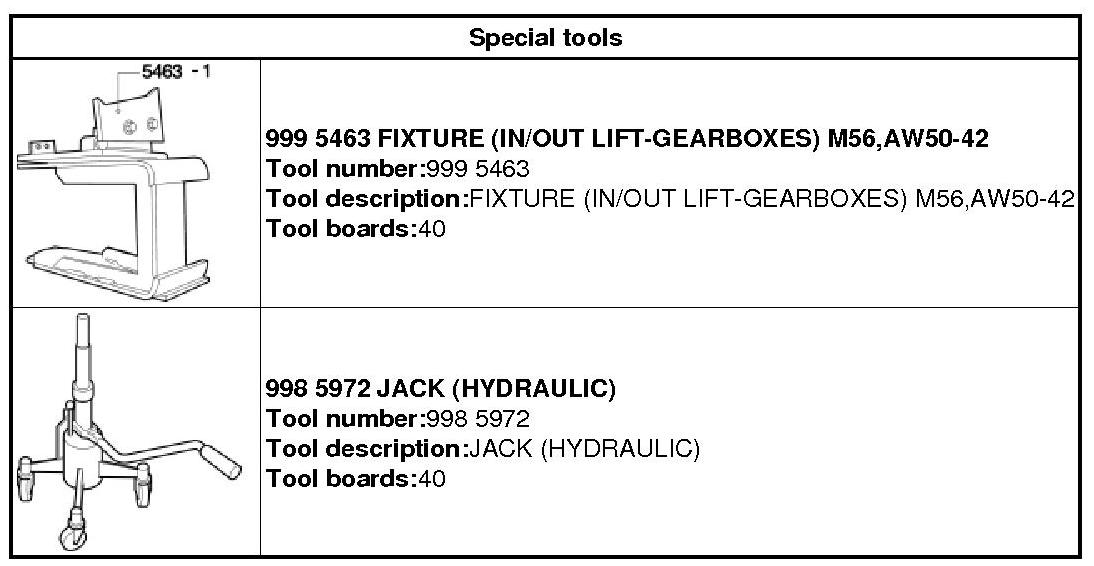

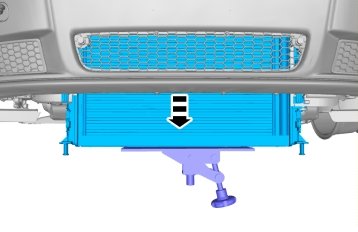

999 5463 FIXTURE 999 5463 Fixture 998 5972 JACK 998 5972 Jack

























Installation

To install, reverse the removal procedure.

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4, B5254T5 Service and Repair

Fill refrigerant, draining, vacuum-pumping and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, and Filling

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
