Blower Motor: Service and Repair

Operation number: 87306-2

Blower motor passenger compartment






Removal

Note! Removal steps in this procedure may contain installation details.





Remove passenger side sill moulding front Refer to: The front sill trim panel Front Sill Trim Panel

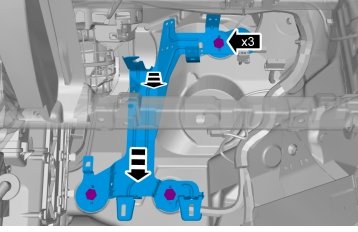

Remove control module relay box passenger compartment Refer to: Control module relay box passenger compartment Service and Repair








Torque: M8, 24 Nm

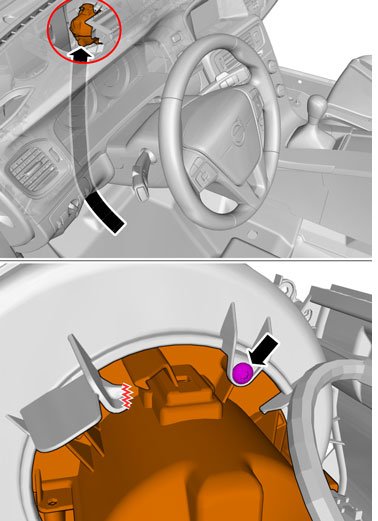

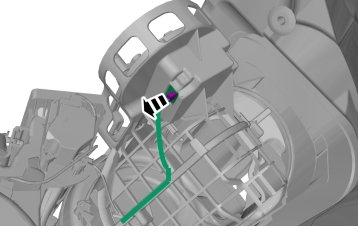

Remove air quality sensor Refer to: Air quality sensor, L.H.D Service and Repair













Caution! Take extra care when handling the component.

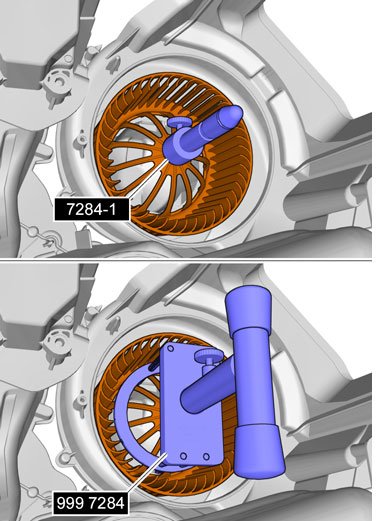

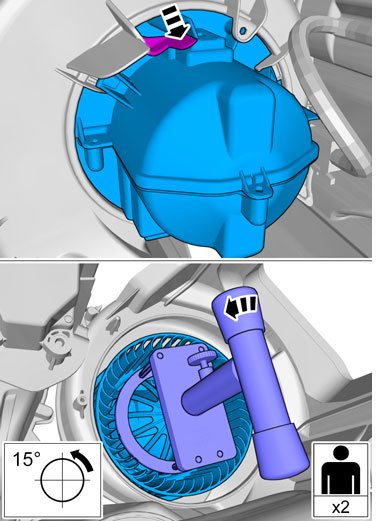

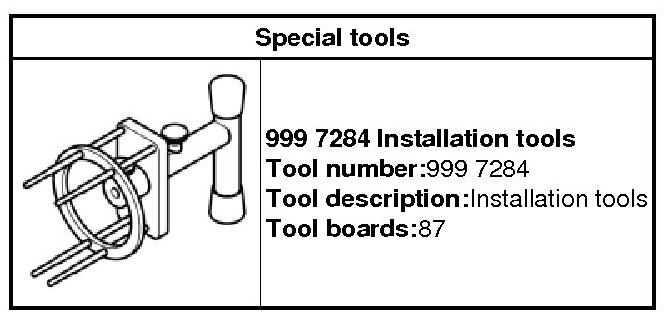

999 7284 Wrench 999 7284 Wrench




If necessary

Remove the dashboard Refer to: Dashboard Dashboard





Caution! Take extra care when handling the component.

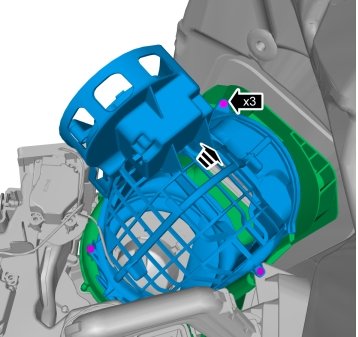

Caution! Make sure that the blower motor and fan assembly is placed on the bench with the fan pointing upwards.

Installation

To install, reverse the removal procedure.

Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
