Component Tests and General Diagnostics

Exhaust system, check

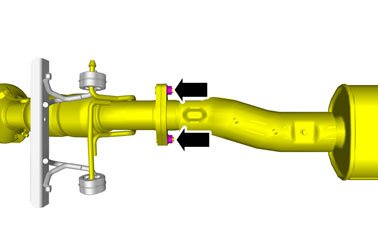

Removal

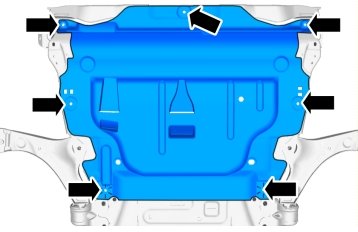

Remove heat shield plate Refer to: Exhaust manifold, B5254T5, B6304T4 Service and Repair

See information about lifting points body Refer to: Jacking points body Locations

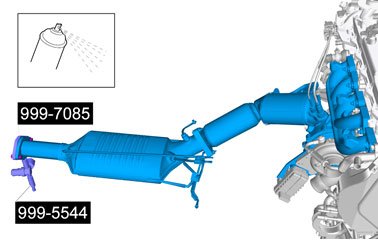

Leak detection

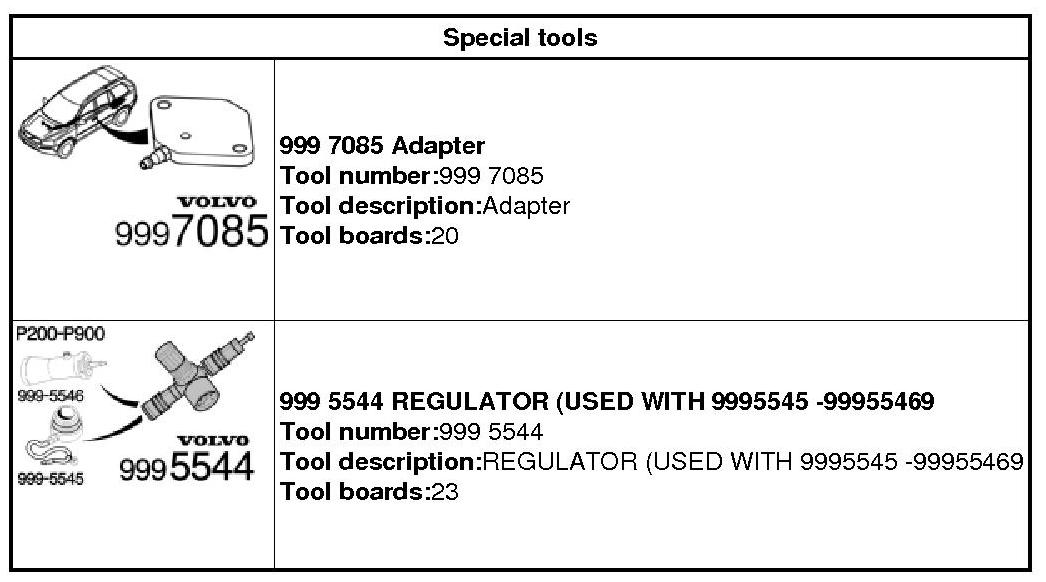

999 7085 Adapter 999 7085 Adapter 999 5544 REGULATOR 999 5544 Regulator

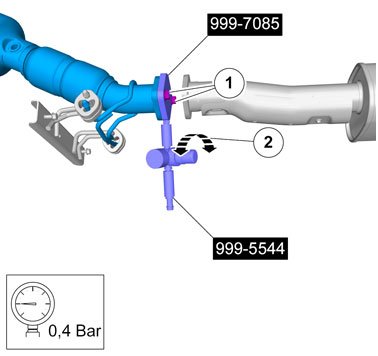

1. Torque: M8, 24 Nm

2.

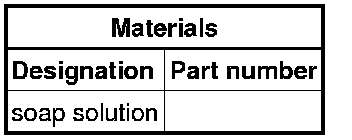

Use: soap solution,

999 7085 Adapter 999 7085 Adapter 999 5544 REGULATOR 999 5544 Regulator

Installation




Torque: M8, 24 Nm
