Muffler, Front

Operation number: 25212-2

Muffler, front

Removal

Note! Removal steps in this procedure may contain installation details.

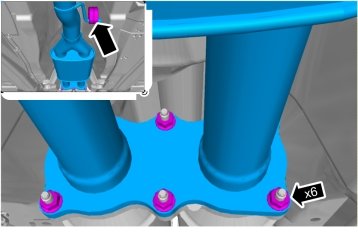

Torque: M10, 50 Nm




Torque: M10, 50 Nm

Perform flange joint, assembly Refer to: Flanged joint, assembling Removal and Replacement

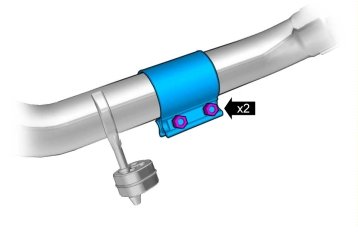

Torque: M8, 24 Nm

Installation

To install, reverse the removal procedure.
