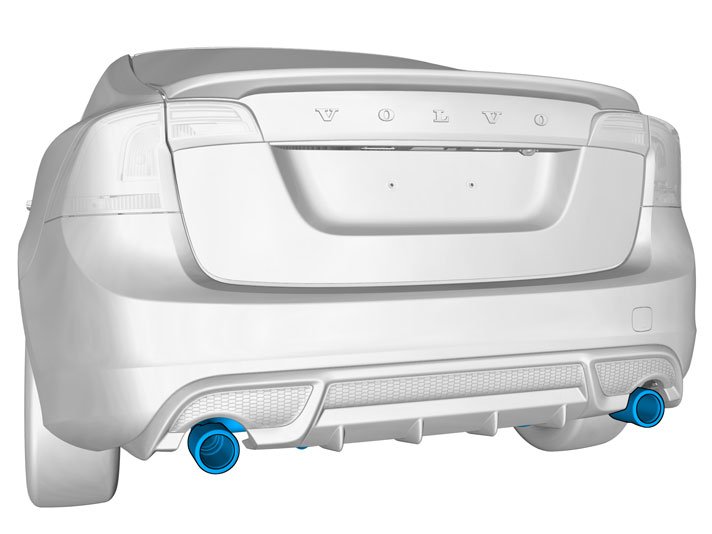

Sport Exhaust System, R-Design

Sport exhaust system, R-design

Equipment

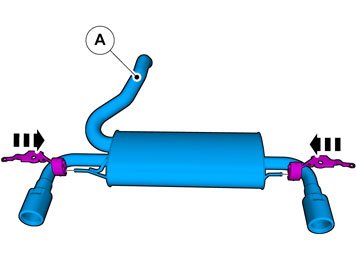

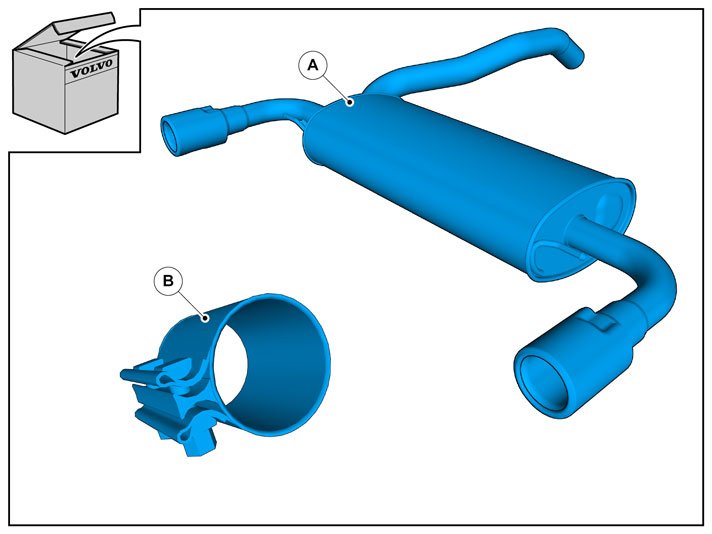

Kit contents









Operation number: 25240

Information

- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

Removal

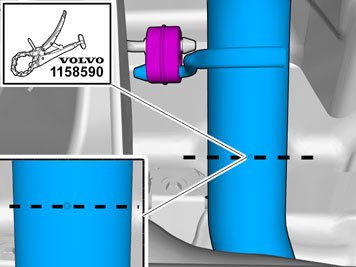

Use: Pipe cutter.

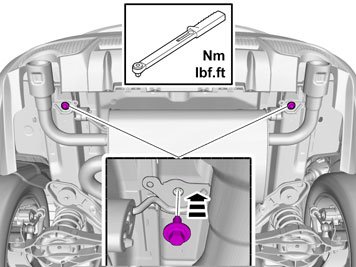

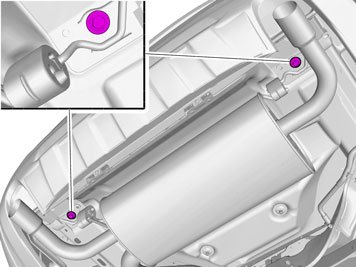

Remove the screws.

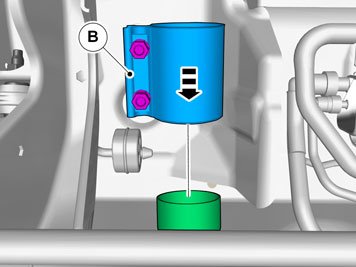

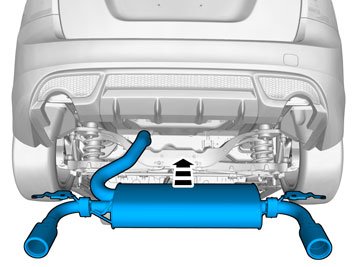

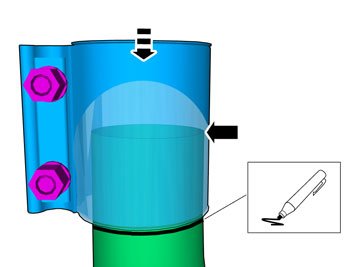

Installation

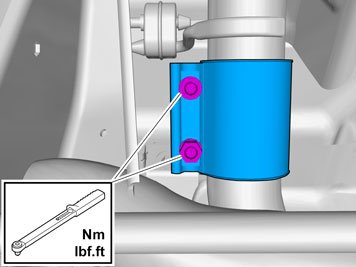

Install the screws.
Torque: M8, 24 Nm








Torque: M10, 50 Nm
