Rectangular End Pipes

End pipes, rectangular



























INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

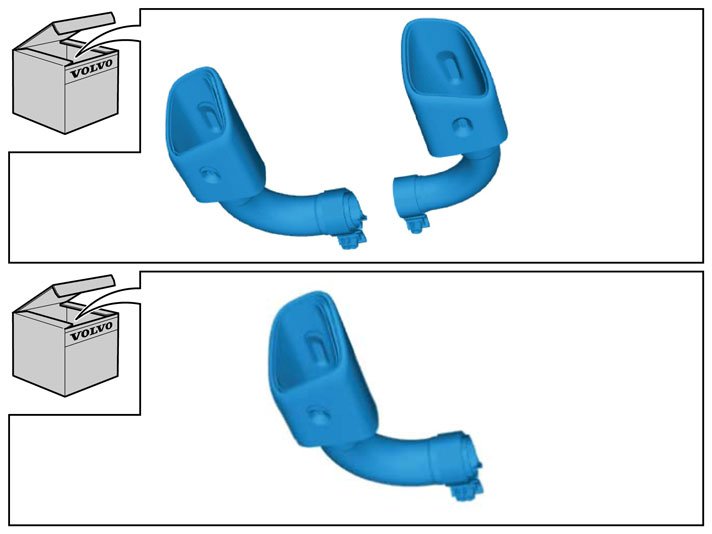

End pipes, rectangular

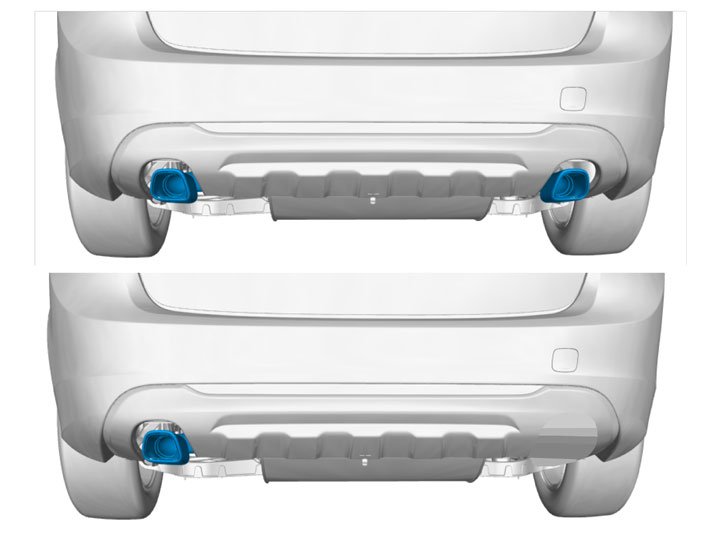

Illustrations A and B




Image A applies to the left-hand side on all vehicles.
Image B applies to the right-hand side for vehicles with double end pipes.

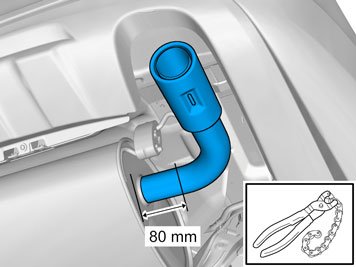

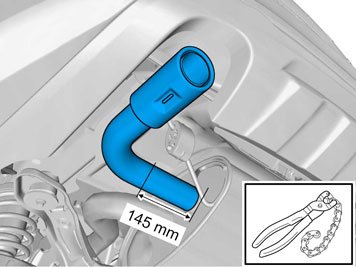

- Cut off the pipe as illustrated. Measure from the end of the silencer.
- Remove any swarf.

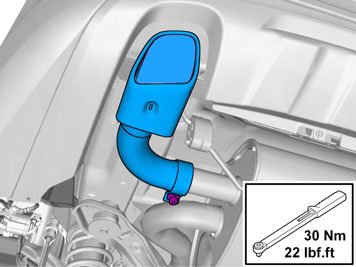

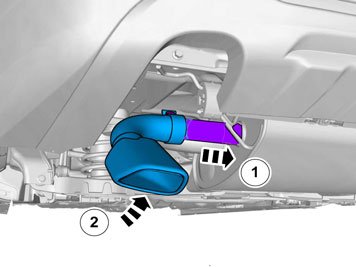

- Centre the end pipe in the cut-out in the skid plate as illustrated.





- Repeat on the other side for cars with double end pipes.
