Timing Chain, Dismantling

Timing chain, dismantling






Removal

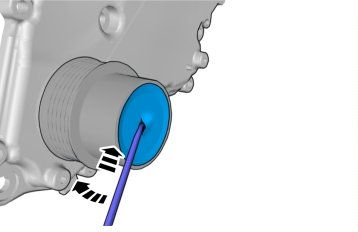

Rotate the crankshaft until piston No. 1 is at top dead center (TDC).
999 7257 Wrench 999 7257 Wrench




999 7261 Position sensor 999 7261 Position Sensor









Install the following items:
1. 999 5760 Counterhold 999 5760 Counterhold
2. 951 2926 Bit torx 50 951 2926 Bit Torx 50

















Install the following items:
1. 999 7263 Counterhold 999 7263 Counterhold
2. 999 7264 Counterhold 999 7264 Counterhold
3. 999 7272 TORX 60 999 7272 Torx 60
