Component Tests and General Diagnostics

Operation number: 21003-2

Leak detecting cylinder






Removal

Increase the engine speed to 2,500 RPM and maintain for 6 minutes or until the engine has reached normal operating temperature.

Remove spark plug Refer to: Spark plugs, B6304T4 Service and Repair

Check

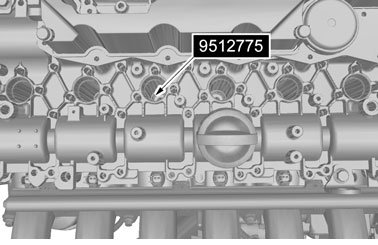

Note! Rotate the crankshaft until the piston concerned has reached Top Dead Center (TDC).





Note! Always follow the manufacturer's instructions when handling the equipment.

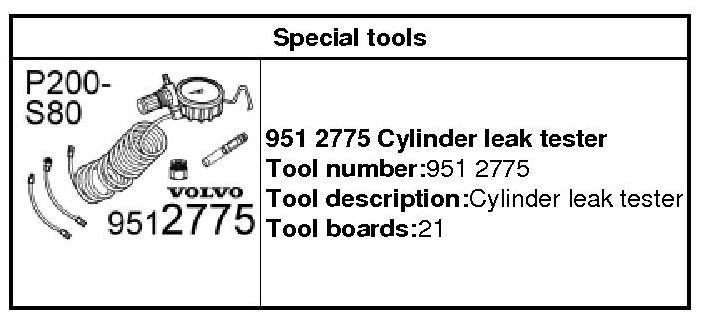

951 2775 Cylinder leak tester 951 2775 Cylinder Leak Tester

Installation

Install spark plug Refer to: Spark plugs, B6304T4 Service and Repair
