Engine, Installing

Operation number: 21014-0

Engine, installing

Note! Some variation in the illustrations may occur, but the essential information is always correct.

Installation

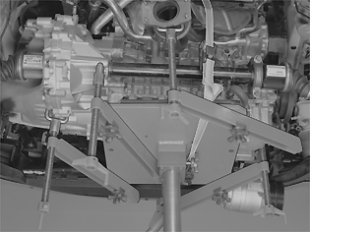

Raise the vehicle so that the engine / transmission unit are free beneath the vehicle. Place the engine and transmission on the lifting table. Lower the lifting table to its lowest position.
Lower the vehicle over the engine/transmission unit, being sure to fit the unit between the frame members. Stop lowering the vehicle just before the engine/transmission unit is in position. Raise the engine/transmission unit.

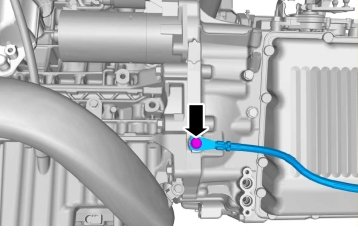

Install the following items:
- right-hand engine mounting. Refer to: Engine support insulator, right, B6304T4, TF-80SC AWD Engine Support Insulator, Right
- left-hand engine mounting. Refer to: Engine support insulator left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Engine Support Insulator Left

Torque: M8, 24 Nm

Torque: M6, 10 Nm

Install the following items:

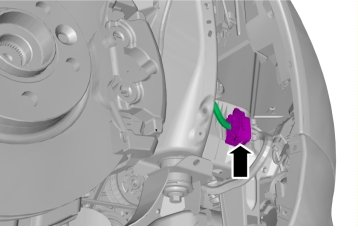

- right drive shaft. Refer to: Drive shaft right, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Drive Shaft Right
- left driveshaft. Refer to: Driveshaft left, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Driveshaft Left
- the subframe. Refer to: Front subframe, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

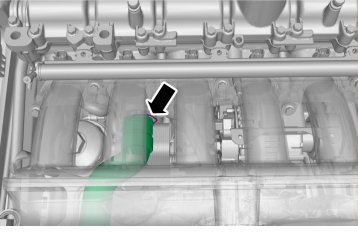

- the exhaust manifold. Refer to: Exhaust manifold, B6304T4 Service and Repair

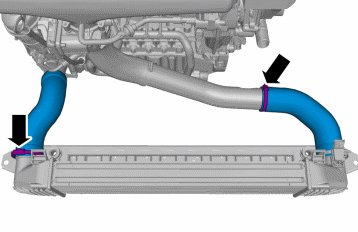

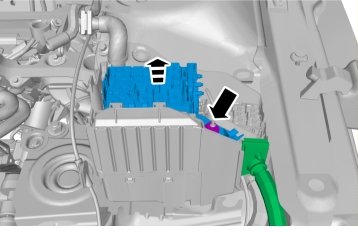

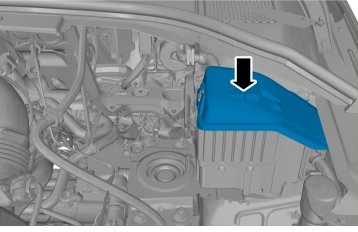

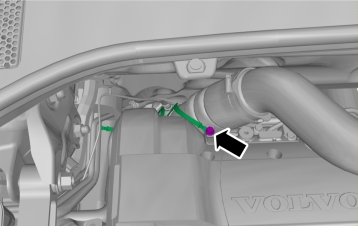

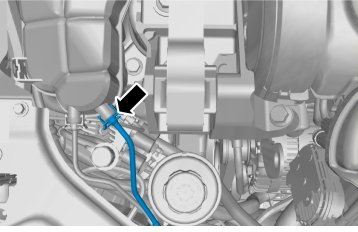

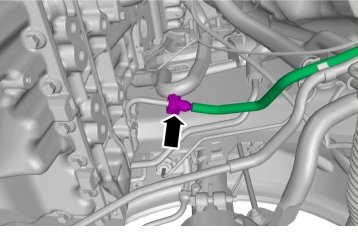

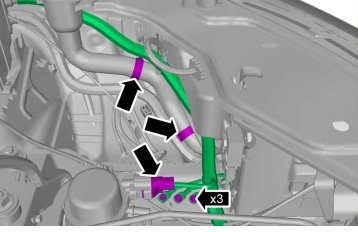

- engine control module (ECM). Refer to: Engine control module (ECM), B6304T4 Service and Repair

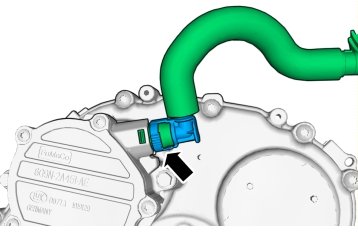

- servo pump. Refer to: Power steering pump, B6304T4 Service and Repair

Final check

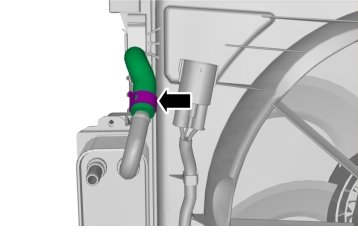

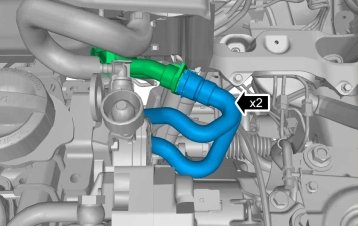

Fill with coolant. Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair.

Fill engine oil. Refer to: Lubricants, engine Fluid Type Specifications

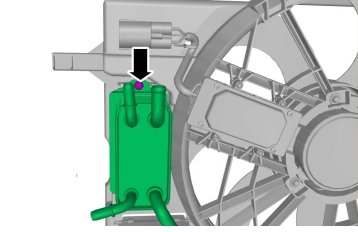

Top up power steering fluid.

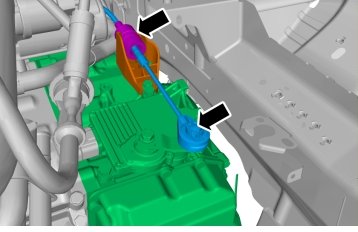

Start the engine. Warm up the engine until the thermostat opens. Check for leaks. Check the oil and fluid levels. Adjust if necessary. Check the fluid level in the gearbox (automatic only). Top up if necessary.
