Gasket, Inner Timing Cover

Gasket, inner timing cover

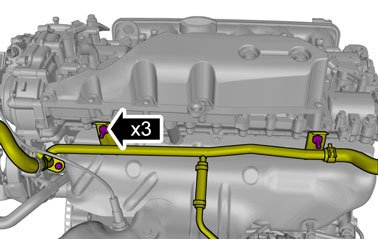

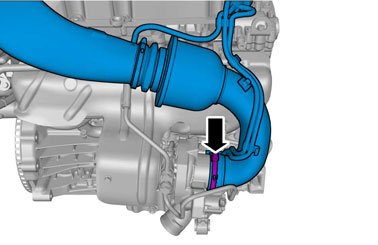

Removal

Remove the crankshaft seal, front

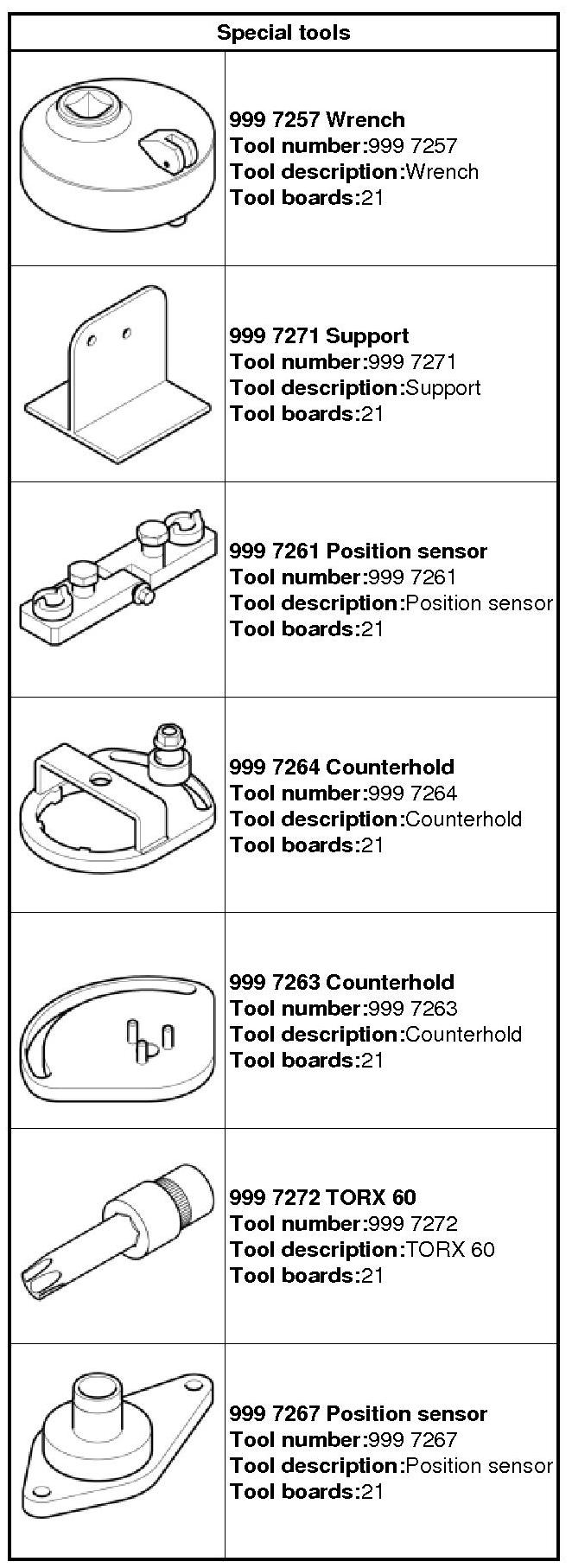

999 7257 Wrench 999 7257 Wrench

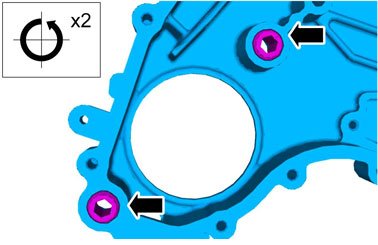

Rotate the crankshaft until piston No. 1 is at top dead center (TDC).

999 7271 Support 999 7271 Support

999 7261 Position sensor 999 7261 Position Sensor

Remove the outer gasket, timing cover Refer to: Gasket, outer timing cover, B6304T4 Gasket, Outer Timing Cover

999 7264 Counterhold 999 7264 Counterhold 999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx 60

Installation

Torque: M7, 17 Nm

Torque: M6, 10 Nm

1. Torque: Center bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

2. Torque: Center bolt, intake camshaft, 110 Nm

999 7263 Counterhold 999 7263 Counterhold 999 7272 TORX 60 999 7272 Torx 60 999 7264 Counterhold 999 7264 Counterhold

999 7261 Position sensor 999 7261 Position Sensor

Note! Only tighten the bolts finger tight at this stage.

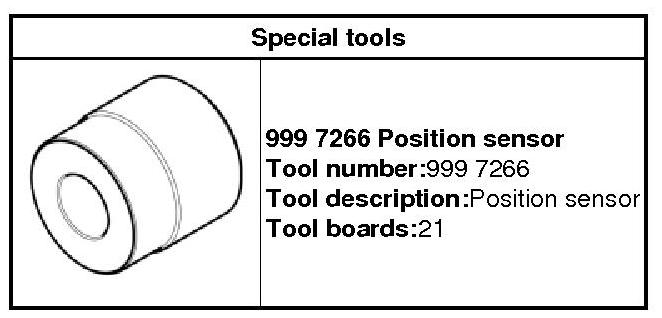

999 7267 Position sensor 999 7267 Position Sensor 999 7266 Position sensor 999 7266 Position Sensor

Torque: M7, 17 Nm

Note! Only tighten the bolts finger tight at this stage.

Torque: Inner timing cover, adjuster screw, 3 Nm

Torque: M8, 24 Nm

1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

Install the following items:
- Intermediate Shaft Gasket, Accessory Drive Side Refer to: Accessory Drive Side Intermediate Shaft Gasket, B6304T4 Accessory Drive Side Intermediate Shaft Gasket
- Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6304T4 Service and Repair

Torque: M7, 17 Nm

Fit the camshaft seal, front Refer to: Camshaft seal, B6304T4 Service and Repair

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair
