Rear Crankshaft Main Bearing Seal: Service and Repair

Operation number: 21644-0

Crankshaft seal, rear











Removal

Note! Removal steps in this procedure may contain installation details.

Remove drive flange plate Refer to: Carrier plate, B6304T4, TF-80SC AWD Service and Repair

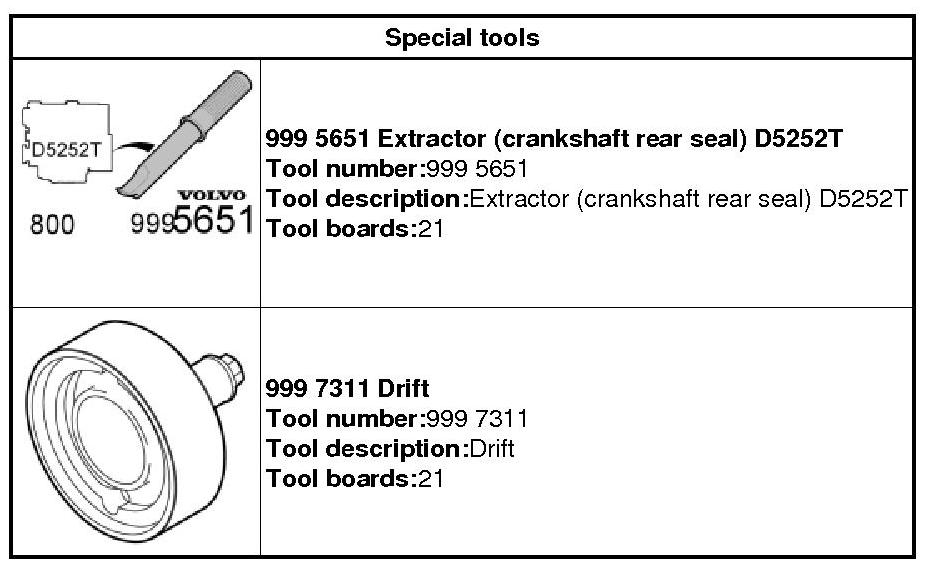

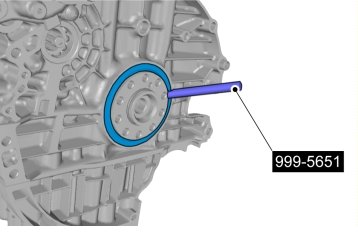

999 5651 Extractor 999 5651 Extractor

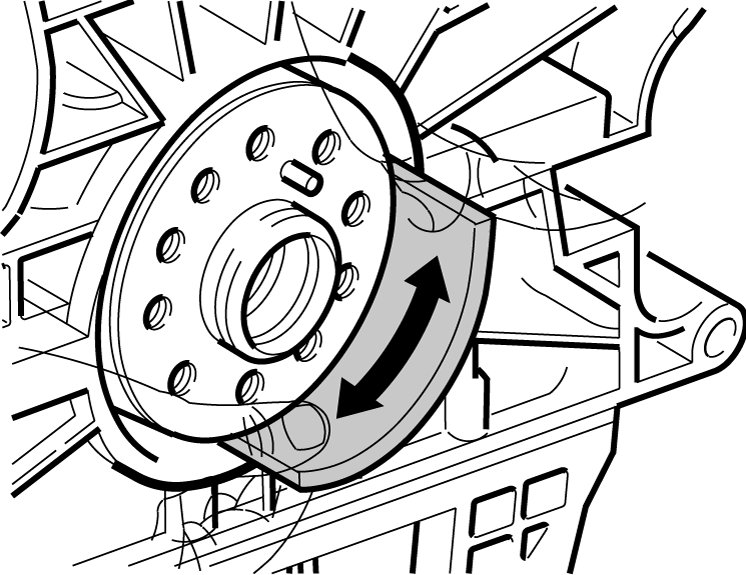

Caution! Cleaning must be directed around the crankshaft journal, not along it. Make sure that any residue from the emery cloth and any other foreign materials are completely removed before installing a new crankshaft seal.

Use: Emery paper.

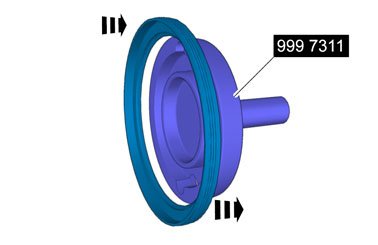

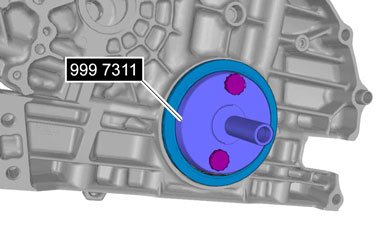

999 7311 Drift 999 7311 Drift

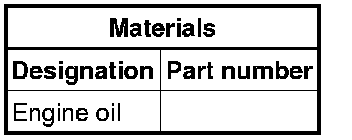

Use: Engine oil,









Installation

To install, reverse the removal procedure.
