Engine Support Insulator, Right

Operation number: 21812-221813-2

Engine support insulator, right






Removal

Note! Removal steps in this procedure may contain installation details.

Remove the upper torque rod Refer to: Upper torque rod, B6304T4, TF-80SC AWD, B5254T5, TF-80SC Service and Repair

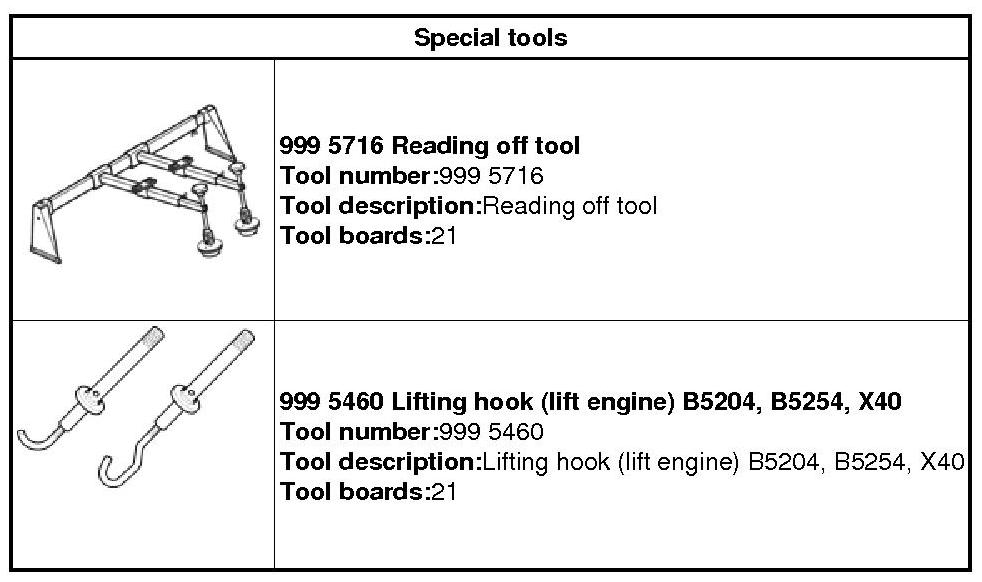

999 5716 Reading off tool 999 5716 Reading Off Tool 999 5460 Lifting hook 999 5460 Lifting Hook

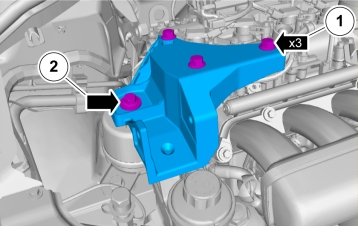

Remove the following items:
1. Torque: Bracket engine mounting to cylinder head, 80 Nm

2. Torque: M12, 80 Nm

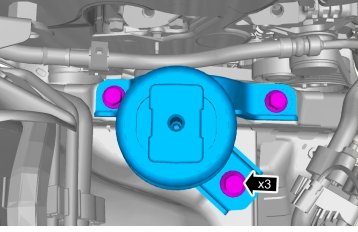

Torque: M12, 80 Nm

Installation

To install, reverse the removal procedure.
