Engine Support Insulator Left

Operation number: 21815-2

Engine support insulator left






Removal

Note! Removal steps in this procedure may contain installation details.

Remove battery Refer to: Battery Removal and Replacement

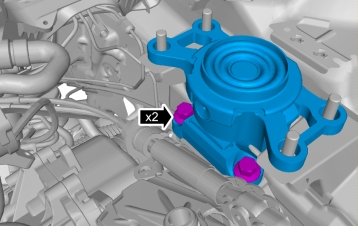

Torque: M6, 10 Nm

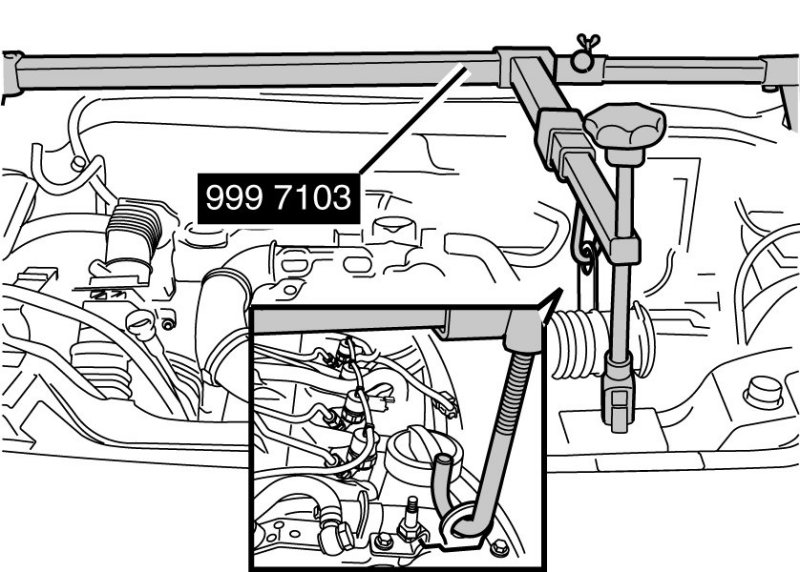

999 7103 Lifting beam 999 7103 Lifting Beam

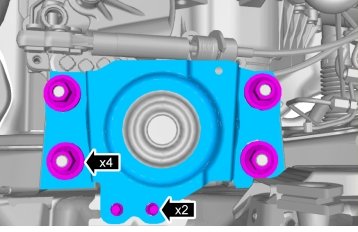

Torque: M12, 80 Nm




Torque: Engine support insulator left , 175 Nm

Installation

To install, reverse the removal procedure.
