Cylinder Head Assembly: Specifications

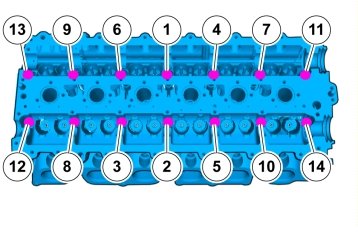

Cylinder Head Bolts





Stage 1 45 Nm
Stage 2 45 Nm
Stage 3 90°
Stage 4 180°

Cylinder Head Inspection





Camshaft Bearing Cap Fasteners Part 2

Intake Manifold Fasteners Specifications

Exhaust Manifold Fasteners Specifications

Camshaft Sprocket Center Bolts Specifications
