Electric Engine Heater, 110 V
Electric engine heater, 110 V
INTRODUCTION
- Read through all of the instructions before starting installation.
- Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
- Ensure that all tools stated in the instructions are available before starting installation.
- Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
- In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.
Electric engine heater, 110 V

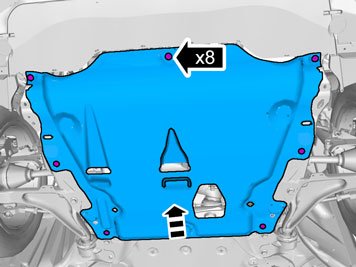

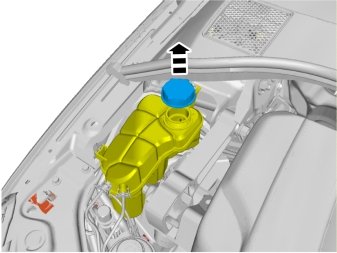

- Remove air baffle.
Note! Get help from a colleague for this procedure.
Illustration A, B, C and D

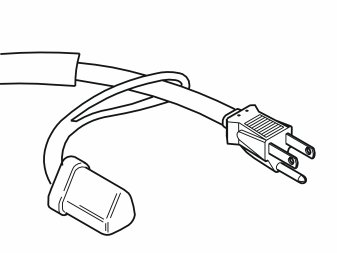

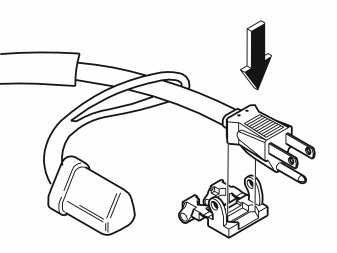

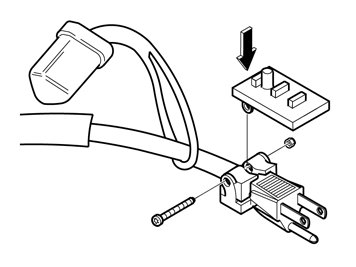

- Take the front engine block heater socket's components from the kit and assemble the front engine block heater socket as illustrated.
Applies to cars without R-design

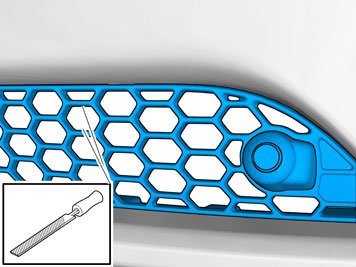

- File out to make room for the connector.

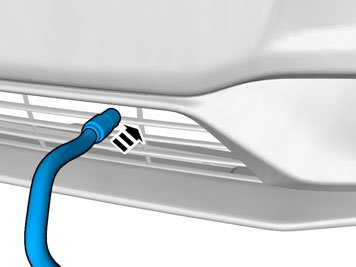

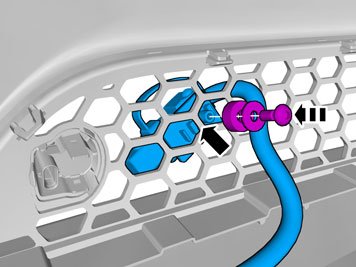

- Pull through the cable.
- Place the contact as illustrated and tighten the spacer and washer with screw.
- Clamp the cable by the existing cables in the position shown.
- Position the bumper cover for re-installation.

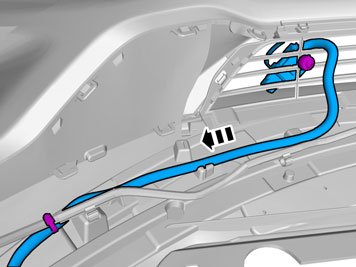

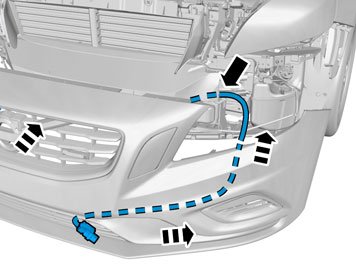

- Insert the cable between the washer reservoir and radiator bracket.
Applies to cars with R-design

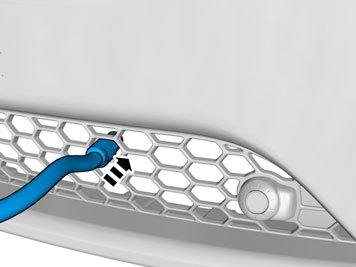

- Pull through the cable.

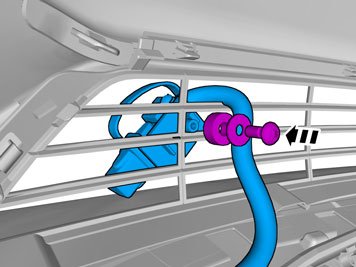

- Place the contact as illustrated and tighten the spacer and washer with screw.
- Clamp the cable by the existing cable in the position shown.
- Position the bumper cover for re-installation.

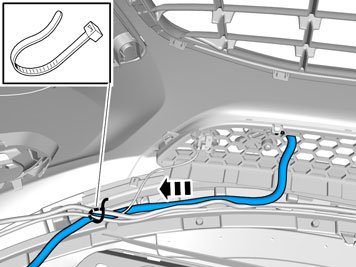

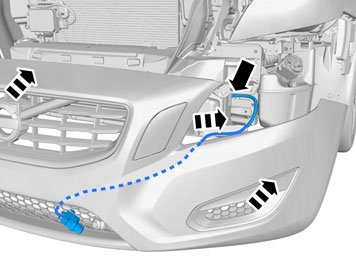

- Insert the cable between the washer reservoir and radiator bracket.
Applies to all models
Note! Get help from a colleague for this procedure.

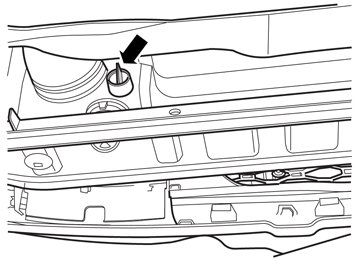

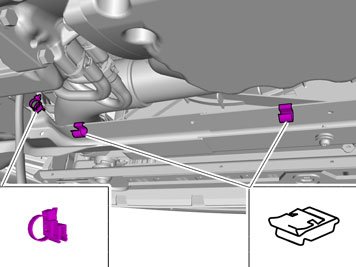

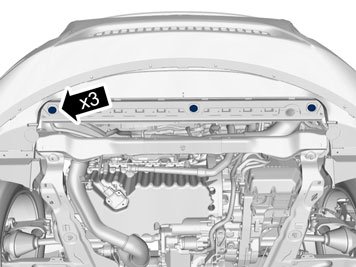

- Install clamps along the upper edge of the subframe.

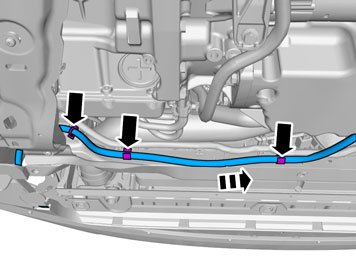

- Route the cable along the subframe and secure it in the cable tie and the other clamps.
- Drain the coolant.
- Tighten the tap after the coolant has been drained.

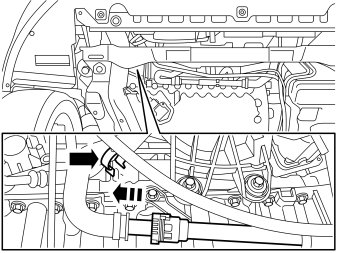

- Detach the double clamp on the cable to the alternator that is located on the thermostat housing hose.

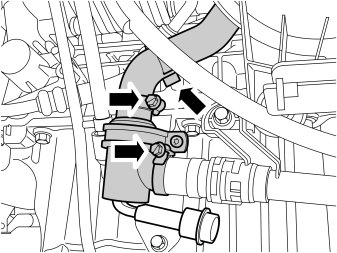

- Rotate the catch on the thermostat housing pipe anticlockwise, detach the hose and drain the remaining coolant.

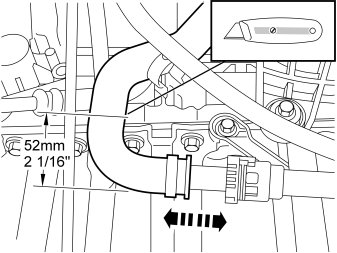

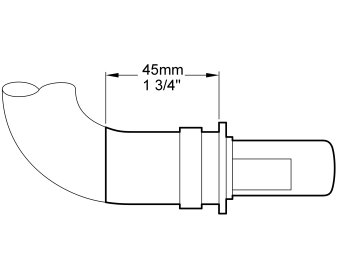

- Cut off the hose using a sharp knife in accordance with the measurements. Make the incision as straight as possible. The short hose-end that was cut off shall be used again.
Hint: Install a piece of tape over the cutting location and mark with a pen where the incision should be. Reinstall the hose connection in the pipe in order to support the cutting process.
Note! Do not damage the adjacent cable harnesses.
- Cut out the short cut-off hose section as illustrated.
- Discard the cut-off hose bend.

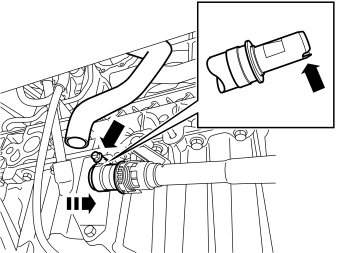

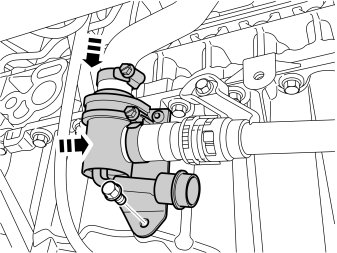

- Remove the short hose-end and press it on the pipe that runs to the thermostat housing. Make sure that the cut-out in the hose connection is turned down and fits into the corresponding pin in the pipe connection.
- Rotate the catch on the pipe clockwise against the stop.
- Take a hose clamp from the kit and install it on the hose-end.

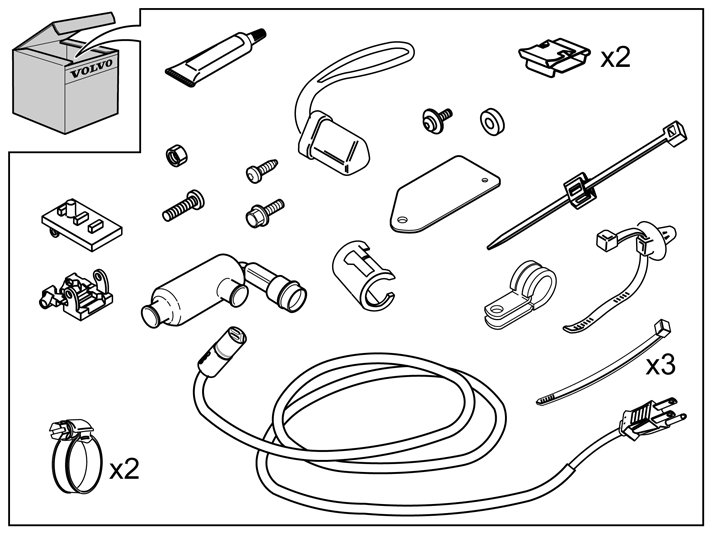

- Take the engine block heater, bracket, rubber coated clamp and screw from the kit and assemble them as illustrated.
- Do not tighten the screw yet.

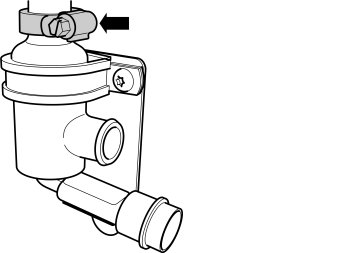

- Take the hose clamp from the kit and fit it onto the engine block heater's upper connection.
- Position the engine block heater with bracket in the front edge of the oil sump and connect both hose-ends to the engine block heater's connections.

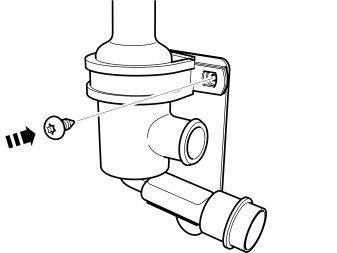

- Take a screw from the kit and tighten the bracket with engine block heater into the existing hole in the oil sump.
Note! The screw is self-tapping so insertion may be slow. Make sure that the screw is centered straight into the hole, so that the screw head is flat against the bracket.
- Now adjust the engine block heater in the rubber coated clamp so that the hoses are properly fitted on the engine block heater's connections.
- Tighten the screw to the rubber coated clamp.
- Tighten the hose clamps to the engine block heater.
- Install the double clamp to the cable for the alternator in the engine block heater's upper hose.
- Lubricate the O-ring on the connector for the heater's cable with low temperature grease P/N 1161427.
Note! Do not get any grease on the surfaces of the connector.

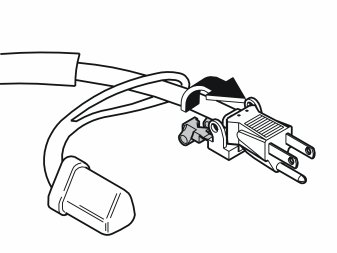

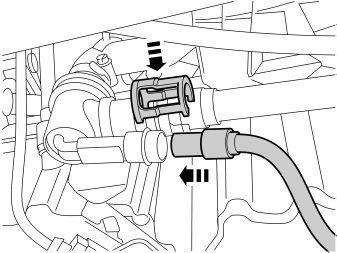

- Connect the cable from the front engine block heater socket to the engine block heater and press it in firmly.

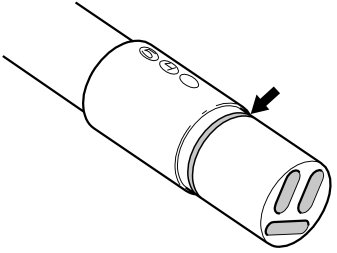

- Press a locking sleeve from the kit over the cable splice.
- Clamp the cable at the radiator pipe using a cable tie.

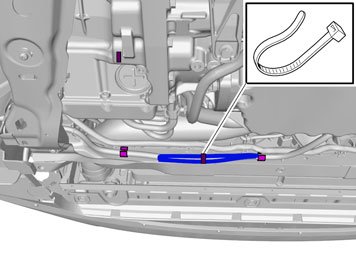

- Pull back the cable excess and clamp together using cable ties between the clips in the subframe.
- Fill with coolant, run the engine to operating temperature, bleed the cooling system and check that there are no leaks.
- Top up the cooling system as required.
