Part 2

Camshafts (Continued)

Installation

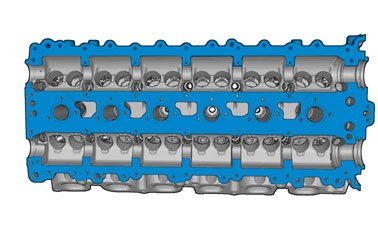

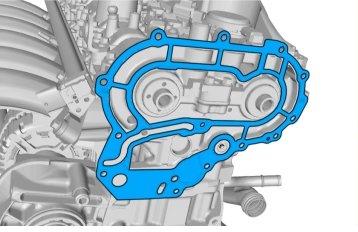

Caution! Make sure that the mating faces are clean and free of foreign material.

Use: Cleaning agent, 1161721

Use: Gasket solution, 1161847

Use: Emery paper, 9511024

Use: Cleaning agent, 1161721

Caution! Make sure that the oil galleries are clean and free of foreign material.

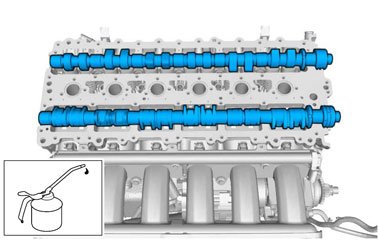

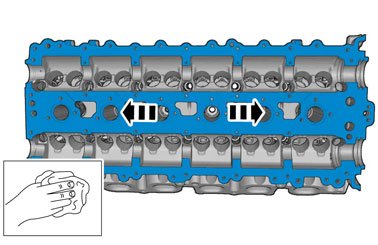

Caution! Make sure that the mating faces are clean and free of foreign material.

Use: Gasket solution, 1161847

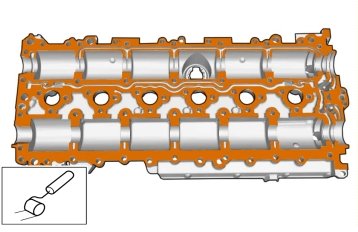

951 2767 Roller 951 2767 Roller

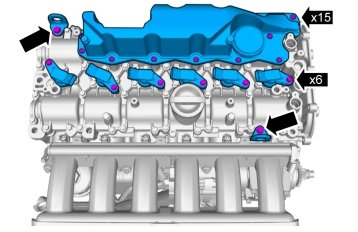

Use: Chemical gasket, 1161059

Note! Make sure that these components are installed to the noted removal position.

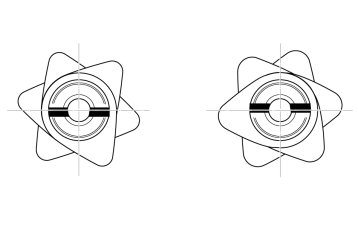

Note! Make sure that the installation marks are aligned.

Caution! Take extra care not to damage the mating faces.

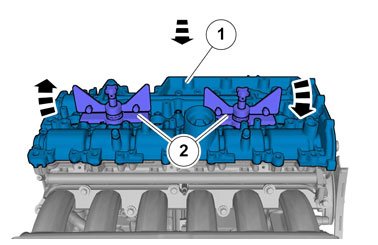

1. Caution! Take extra care when handling the component.

2.
Note! Only use moderate force.

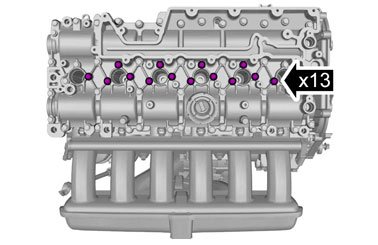

Torque: M7, 17 Nm

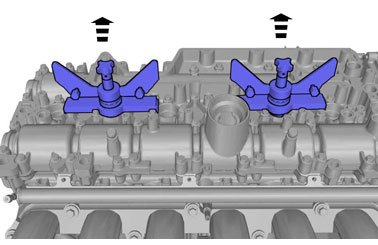

999 7261 Position sensor 999 7261 Position Sensor

1. Torque: M6, 10 Nm

2. Torque: M10, 50 Nm

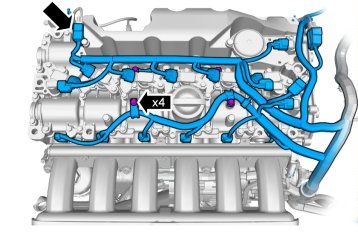

Torque: M6, 10 Nm

Note! Do not loosen the bolts more than 2 turns.

Torque: M7, 17 Nm

Torque: M6, 10 Nm

999 7263 Counterhold 999 7263 Counterhold 999 7264 Counterhold 999 7264 Counterhold 999 7272 TORX 60 999 7272 Torx 60
1. Torque: Center bolt, exhaust camshaft Stage 1: 75 Nm Stage 2: 90 degree

2. Torque: Center bolt, intake camshaft, 110 Nm

Note! Only tighten the bolt finger tight at this stage.

999 7266 Position sensor 999 7266 Position Sensor 999 7267 Position sensor 999 7267 Position Sensor

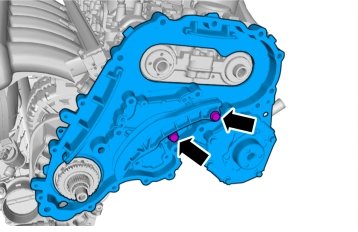

Torque: M7, 17 Nm

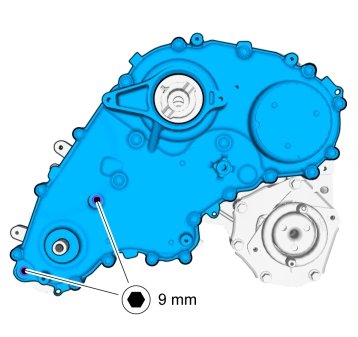

Torque: Inner timing cover, adjuster screw, 3 Nm

Torque: M8, 24 Nm

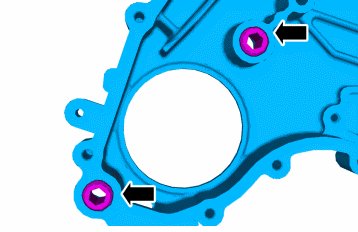

Torque: M6, 10 Nm

1. Torque: M6, 10 Nm

2. Torque: M7, 17 Nm

3. Torque: M8, 24 Nm

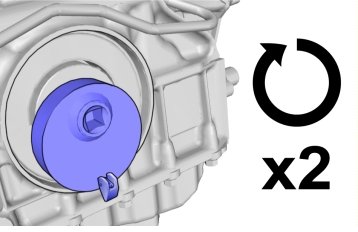

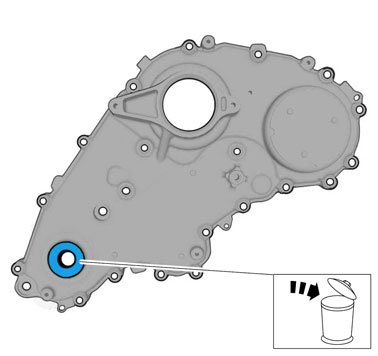

Note! Make sure that a new component is installed.

999 7265 Drift 999 7265 Drift

999 5760 Counterhold 999 5760 Counterhold 951 2926 Bit torx 50 951 2926 Bit Torx 50
Torque: Belt pulley auxiliary unit, 60 Nm

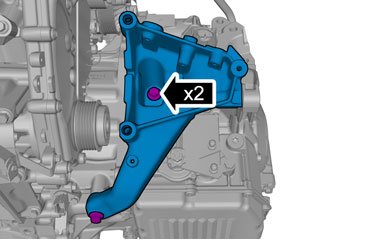

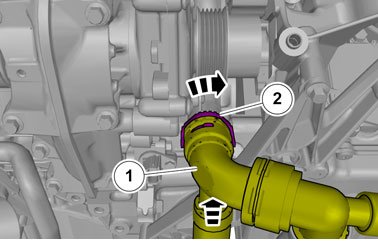

Torque: M10, 50 Nm

Torque: Accessory Drive Component, adjusting screw, 1 Nm

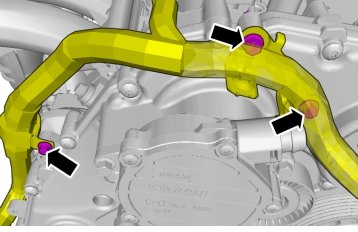

Torque: M10, 50 Nm

Install the auxiliaries belt Refer to: Accessory Drive Belt, B6304T4 Service and Repair

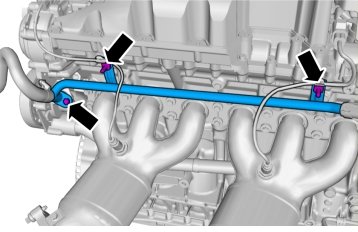

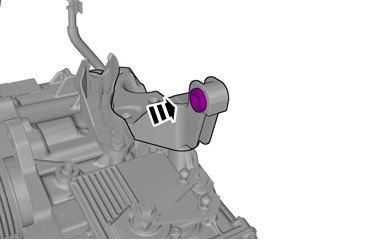

Torque: M7, 17 Nm

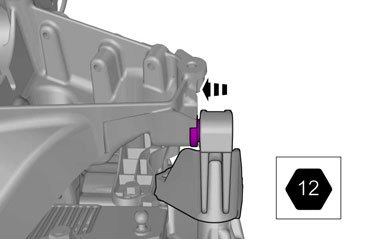

Torque: M12, 80 Nm

Install crankshaft seal, front Refer to: Crankshaft front seal, B6304T4, TF-80SC AWD Service and Repair

Fill cooling system, draining, filling, and bleeding Refer to: Cooling system - draining, charging and bleeding, B6304T4 Service and Repair
